2025 Hyundai IONIQ 5 Trims in Florence, SC

The 2025 Hyundai IONIQ 5 continues to define Hyundai’s direction in the electric vehicle segment through modular platform engineering, efficient energy delivery systems, and scalable technology integration. The lineup consists of six distinct trims: SE Standard Range, SE, SEL, Limited, the rugged XRT, and the N performance model. Each configuration has been developed with specific applications in mind, ranging from commuter-focused efficiency to off-road versatility and track-capable power output.

Platform and Powertrain Configuration

The 2025 Hyundai IONIQ 5 is built on Hyundai’s E-GMP (Electric Global Modular Platform), supporting both rear-wheel drive (RWD) and all-wheel drive (AWD) configurations. The SE Standard Range model features a 63.0 kWh battery pack with a single-motor RWD layout, delivering 168 horsepower and 258 lb-ft of torque. While official EPA range figures are pending, internal targets estimate 245 miles per charge.

The SE, SEL, and Limited trims are equipped with an upgraded 84.0 kWh battery pack. RWD variants maintain the same 225-horsepower output, while dual-motor AWD variants increase combined output to 320 horsepower with 446 lb-ft of torque. The RWD configuration in these trims achieves an estimated driving range of over 318 miles, while the AWD variants are rated for approximately 290 miles per full charge under EPA testing.

The new XRT trim is purpose-built for adventurous driving with a factory-raised suspension (23 mm higher), rugged body cladding, and all-terrain tires. It features the same 84.0 kWh battery and AWD dual-motor system producing 320 horsepower, and offers an estimated range of up to 318 miles. Key performance enhancements include electronic AWD calibration for variable traction conditions and an updated interface for off-road mode selection.

The 2025 Hyundai IONIQ 5 N trim introduces a significant deviation from the standard configurations. Utilizing a dual-motor AWD powertrain with N-specific tuning, the system produces 601 horsepower in normal operation. An additional function, N Grin Boost, temporarily increases output to 641 horsepower for a duration of 10 seconds. Maximum torque output reaches 545 lb-ft. This configuration is capable of reaching 0-60 mph in approximately 3.25 seconds under optimal launch conditions using the N Launch Control feature.

Charging Systems and Infrastructure Compatibility

All 2025 Hyundai IONIQ 5 trims utilize an 800V electrical architecture that supports high-capacity direct current (DC) fast charging. Under optimal temperature and station conditions, the battery can be charged from 10% to 80% in approximately 20 minutes using an ultra-fast DC charger. The vehicle also supports Level 2 AC charging through a standard SAE J1772 port.

For the 2025 model year, Hyundai integrates the North American Charging Standard (NACS) connector, improving accessibility to Tesla’s Supercharger network. This system integration eliminates the need for adapters and allows seamless compatibility with high-volume charging stations across North America.

Exterior Equipment and Structural Dimensions

The 2025 Hyundai IONIQ 5 structural layout includes a 118.1-inch wheelbase with a total length of 183.3 inches, width of 74.4 inches, and height of 63 inches, depending on trim and wheel configuration. The use of high-tensile steel and structural adhesives contributes to improved torsional rigidity and impact performance.

SE and SEL trims are equipped with 19-inch alloy wheels and LED lighting systems, including LED projector headlights and LED taillights. Power-folding side mirrors with integrated turn signal indicators are standard on the higher trims. Door handles are flush-mounted and auto-retracting for improved aerodynamics.

The Limited trim features 20-inch alloy wheels and includes a dual-panel panoramic sunroof. Exterior differences also include additional chrome detailing and upgraded grille textures. These features are designed to support both visual distinction and improved airflow management.

The XRT trim brings a more aggressive exterior setup with all-terrain tires, rugged fender cladding, and a unique digital camo pattern on the bumpers. Red tow hooks, raised ride height, and unique grille inserts reinforce its outdoor-ready identity.

The 2025 Hyundai IONIQ 5 N is fitted with 21-inch forged wheels, wrapped in 275/35R21 high-performance tires. The braking system includes four-piston front monoblock calipers with ventilated 15.7-inch front rotors and integrated cooling ducts. An N-specific aerodynamic kit includes an enlarged rear spoiler, revised front intake channels, and functional air curtains.

Cabin Design and Infotainment Integration

Interior dimensions remain consistent across all trims, offering 106.5 cubic feet of passenger volume and up to 58.5 cubic feet of cargo space with the rear seats folded. All trims use a flat floor design made possible by the E-GMP platform. The front-row center console is adjustable and includes integrated USB-C charging ports.

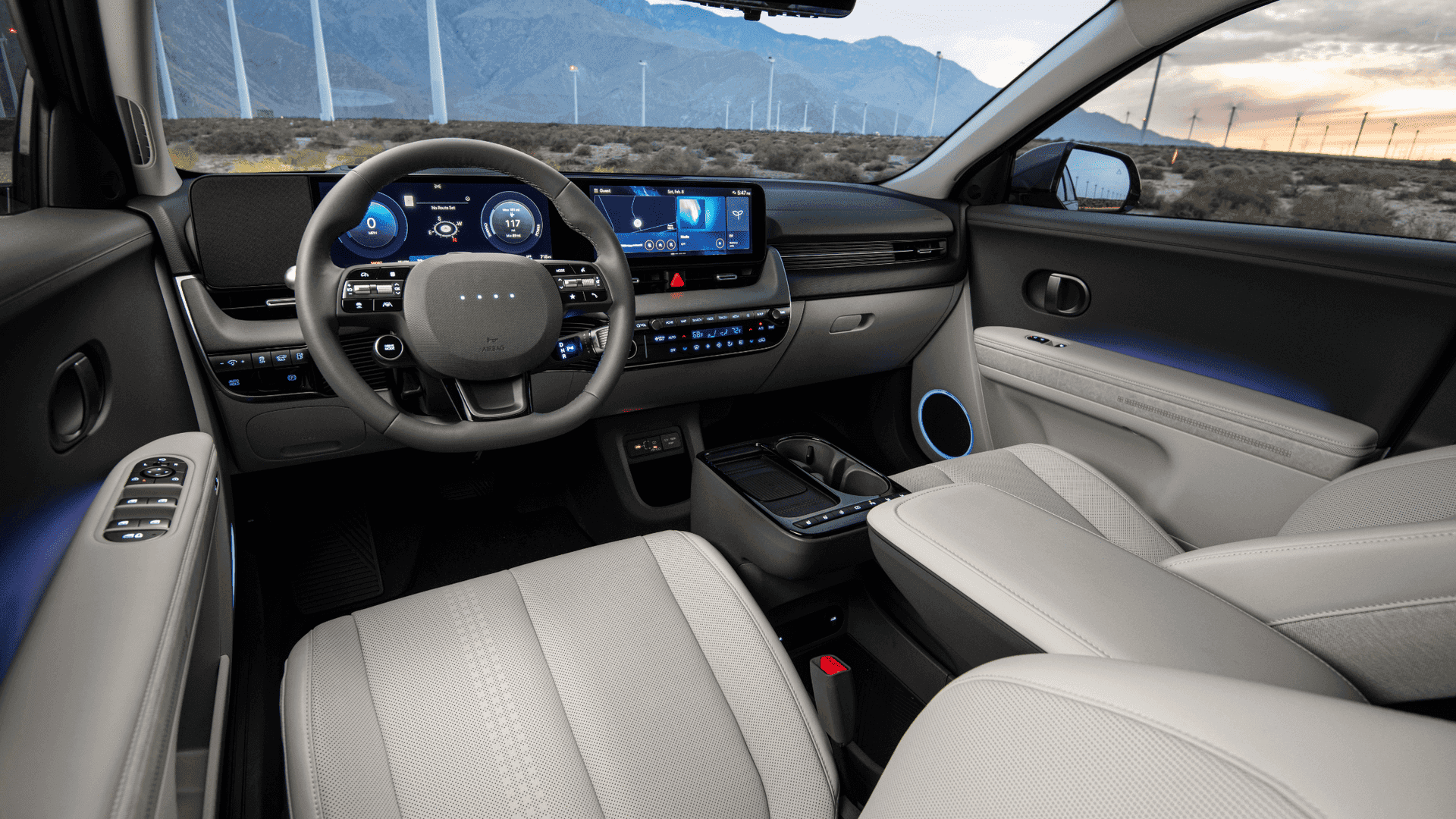

Instrumentation is managed by a pair of 12.3-inch displays—one for the digital instrument cluster and another for infotainment and navigation control. Standard connectivity includes wireless Apple CarPlay® and Android Auto™, Bluetooth® multi-device pairing, voice recognition, and Hyundai’s connected car services platform.

SE and SEL trims offer dual-zone automatic climate control with a driver-only ventilation mode. Front seats are heated as standard. The SEL trim adds wireless device charging, digital key compatibility, and a hands-free smart liftgate with proximity detection.

The Limited trim introduces ventilated front seats, memory settings for the driver’s position, a head-up display with augmented reality guidance, and a premium sound system. Additional convenience features include ambient interior lighting and acoustic-laminated front glass for noise insulation.

The XRT shares core features with the SEL trim but incorporates revised interior trim, a larger adjustable center console, and model-specific steering wheel and display graphics tailored to off-road utility.

The 2025 Hyundai IONIQ 5 N uses a combination of Alcantara and H-Tex® seat materials, N-specific instrumentation graphics, and reinforced side bolstering. The system includes real-time torque distribution data and customizable driving modes through the infotainment interface. A Bose® Premium Audio system is standard.

Safety Systems and Driver Assistance Technologies

The 2025 Hyundai IONIQ 5 includes the Hyundai SmartSense suite of active safety systems across all trims. Standard features include Forward Collision-Avoidance Assist with Pedestrian and Cyclist Detection, Blind-Spot Collision-Avoidance Assist, Lane Keeping Assist, Lane Following Assist, Smart Cruise Control with Stop & Go, Driver Attention Warning, and High Beam Assist.

The SEL and Limited trims add Parking Distance Warning—Front and expand highway automation capability through Highway Driving Assist 2 (HDA 2). This system combines adaptive cruise control, lane centering, and machine-learning lane-change assistance under driver supervision.

All trims are also equipped with multiple airbags, electronic stability control, traction control, and an advanced anti-lock braking system with brake-force distribution.

Cargo Management and Utility

The rear cargo area offers 26.3 cubic feet of space with the rear seats in the upright position. When folded, total cargo volume increases to 58.5 cubic feet. An under-floor storage compartment is included for charging cables and emergency equipment. The front trunk (frunk) offers additional storage capacity, useful for small items or accessories.

Seatbacks are split 60/40 and fold nearly flat to maximize usable space. The load floor is low, and the liftgate opening is wide to accommodate larger items. Power liftgate functionality is standard on SEL, XRT, and above.

Software and Vehicle Controls

The vehicle’s user interface includes over-the-air (OTA) update capability for eligible systems, including infotainment and select electronic control units. Driving modes include Normal, Eco, and Sport, with Snow mode available on AWD variants.

The 2025 Hyundai IONIQ 5 N adds additional control layers, including N Grin Boost, N Pedal (for increased lift-off oversteer control), N Drift Optimizer, and Launch Control. These features are designed for high-performance driving scenarios and track use. Torque vectoring and electronic limited-slip functionality are enabled through software calibration in the AWD system.

Visit ALM Hyundai Florence to Schedule a Test Drive

The 2025 Hyundai IONIQ 5 provides six trim levels that meet a variety of driving and performance requirements through modular battery systems, advanced charging compatibility, and integrated safety technologies. It is engineered for efficiency in the SE Standard Range, longer range and comfort in the SE, SEL, and Limited trims, rugged utility in the new XRT, and performance-focused driving in the 2025 Hyundai IONIQ 5 N. For a complete inspection of the features, systems, and technologies outlined above, visit ALM Hyundai Florence in Florence, SC. Contact us today to schedule a test drive and explore available configurations of the 2025 Hyundai IONIQ 5 lineup.
