2026 Hyundai Elantra near Conway, SC
The 2026 Hyundai Elantra is engineered as a compact sedan with multiple powertrain configurations, structural refinements, and integrated electronic systems. It is built on a unibody platform using high-tensile steel to increase rigidity and maintain controlled weight distribution. The model lineup includes naturally aspirated gasoline engines, hybrid systems, turbocharged engines, and a high-output performance variant. Each configuration is designed to meet specific output, efficiency, and driving requirements through calibrated mechanical and electronic components.
Powertrain Architecture and Output Specifications
The standard gasoline configuration uses a 2.0-liter MPI Atkinson-cycle inline 4-cylinder engine with a displacement of 1,999 cc. This engine produces 147 horsepower at 6,200 rpm and 132 lb-ft of torque at 4,500 rpm. It incorporates Dual Continuously Variable Valve Timing and an aluminum block and head design. The bore and stroke measure 81 mm by 97 mm, supporting efficiency-focused combustion characteristics and stable thermal performance.
The hybrid configuration pairs a 1.6-liter GDI Atkinson-cycle inline 4-cylinder engine with an electric motor system. The gasoline engine generates 104 horsepower at 5,700 rpm and 109 lb-ft of torque at 4,000 rpm. Combined system output reaches 139 horsepower and 195 lb-ft of torque. The electric motor delivers 32 kW, equivalent to 43 horsepower, and produces 125 lb-ft of torque. Power is supplied by a lithium-ion battery with a capacity of 1.32 kWh and a system voltage of 240 volts. This configuration is designed to supplement low-speed torque and improve fuel efficiency under varying driving conditions.
A turbocharged 1.6-liter GDI engine is available for higher output requirements. This engine produces 201 horsepower at 6,000 rpm and 195 lb-ft of torque across a wide range from 1,500 to 4,500 rpm. It utilizes Continuously Variable Valve Duration technology to regulate intake valve timing and duration. This supports improved combustion efficiency and sustained torque delivery.
The highest performance configuration is equipped with a 2.0-liter turbocharged direct-injection engine. This engine delivers 276 horsepower between 5,500 and 6,000 rpm and 289 lb-ft of torque from 2,100 to 4,700 rpm. The bore and stroke measure 86 mm by 86 mm, contributing to balanced performance characteristics. This engine is calibrated to maintain consistent output across a broad operating range.
Transmission Systems and Drive Configuration
The 2026 Hyundai Elantra uses a front-wheel-drive layout across all trims. Transmission options include a Smartstream® Intelligent Variable Transmission for standard gasoline models, which provides continuous ratio adjustments to optimize engine efficiency. This system is designed to reduce shift shock and maintain steady acceleration.
For enhanced responsiveness, the vehicle offers a 6-speed EcoShift® dual-clutch transmission and a 7-speed dry dual-clutch transmission. These systems provide faster gear changes and improved torque transfer efficiency compared to conventional automatic transmissions. A 6-speed manual transmission is also available in specific configurations, offering direct driver control over gear selection.
The performance-oriented model is equipped with an 8-speed wet dual-clutch transmission. This system is engineered to manage higher torque output while maintaining durability under sustained load conditions. It uses a wet clutch design to improve heat dissipation and reliability.
Drive Mode Select is integrated into automatic and dual-clutch configurations. Modes include Normal, Sport, and Smart. Higher performance variants include additional settings such as Eco and customizable N modes. These modes adjust throttle response, transmission behavior, and steering calibration to suit different driving conditions.
Suspension Geometry and Chassis Construction
The 2026 Hyundai Elantra’s chassis is constructed using a unibody design with high tensile steel, which increases structural rigidity and supports crash energy distribution. The front suspension uses a MacPherson® strut configuration with stabilizer bars ranging from 22 mm to 23 mm depending on trim level. Hydraulic twin-tube shock absorbers are used to manage vertical motion and maintain ride stability.
Rear suspension design varies by configuration. Standard models use a coupled torsion beam axle with coil springs and gas-filled shock absorbers. Higher trims and performance variants use a multi-link independent rear suspension system, which improves wheel articulation and handling precision. Stabilizer bars in these configurations range from 17 mm to 24 mm.
The performance variant includes an electronically controlled suspension system, allowing adjustment of damping characteristics. It also features an electronic limited slip differential known as the N Corner Carving Differential. This system distributes torque between the front wheels to improve traction during cornering and acceleration.
Steering Calibration and Braking Systems
The steering system is based on a rack-and-pinion design with motor-driven power assistance. Lower trims use column-mounted, motor-driven power steering, while higher-performance variants use rack-mounted, motor-driven systems. Steering ratios are approximately 12.9 to 1 in standard configurations and 12.2 to 1 in performance variants. The turning radius starts at 17.7 feet, with higher performance models measuring up to 19.2 feet.
The braking system includes ventilated front disc brakes and solid rear disc brakes in standard configurations. Front disc diameters range from 11.0 inches to 12.0 inches. Performance models use larger ventilated front discs measuring 14.2 inches and rear ventilated discs measuring 12.4 inches. The system includes an anti-lock Braking System, Electronic Brake-force Distribution, and Brake Assist.
An electric parking brake is included on higher trims, while lower trims use a mechanical cable system. Brake booster configurations vary by trim, with electric regenerative braking integrated into hybrid models.
Exterior Dimensions and Aerodynamic Properties
The 2026 Hyundai Elantra has a wheelbase of 107.1 inches, an overall length of 185.4 inches, and a width of 71.9 inches. The height is approximately 55.7 inches. The minimum ground clearance is 5.3 inches to 5.5 inches depending on configuration. The aerodynamic design achieves a drag coefficient as low as 0.28, supporting reduced air resistance and improved efficiency.
Wheel sizes range from 15-inch alloy wheels to 19-inch alloy wheels. Tire configurations vary by trim, including 195-width tires for base models and up to 245-width high-performance tires for the N variant. Performance tires include Michelin® Pilot Sport 4 S, designed for increased grip and stability. Tire mobility kits or compact spare tires are provided depending on configuration.
Lighting systems include LED daytime running lights and dual LED projector headlights across all trims. Rear lighting configurations vary, including bulb-based systems, LED combinations, and full LED rear taillights on higher trims. Automatic headlamp control and High Beam Assist are standard features.
Interior Systems and Digital Integration
The interior is configured to accommodate five passengers with multiple seating material options, including premium cloth, leatherette, and leather-trimmed surfaces. Front seats offer six-way adjustability for the driver and four-way adjustability for the passenger. Higher trims include power-adjustable driver seats with lumbar support, as well as heated and ventilated front seats.

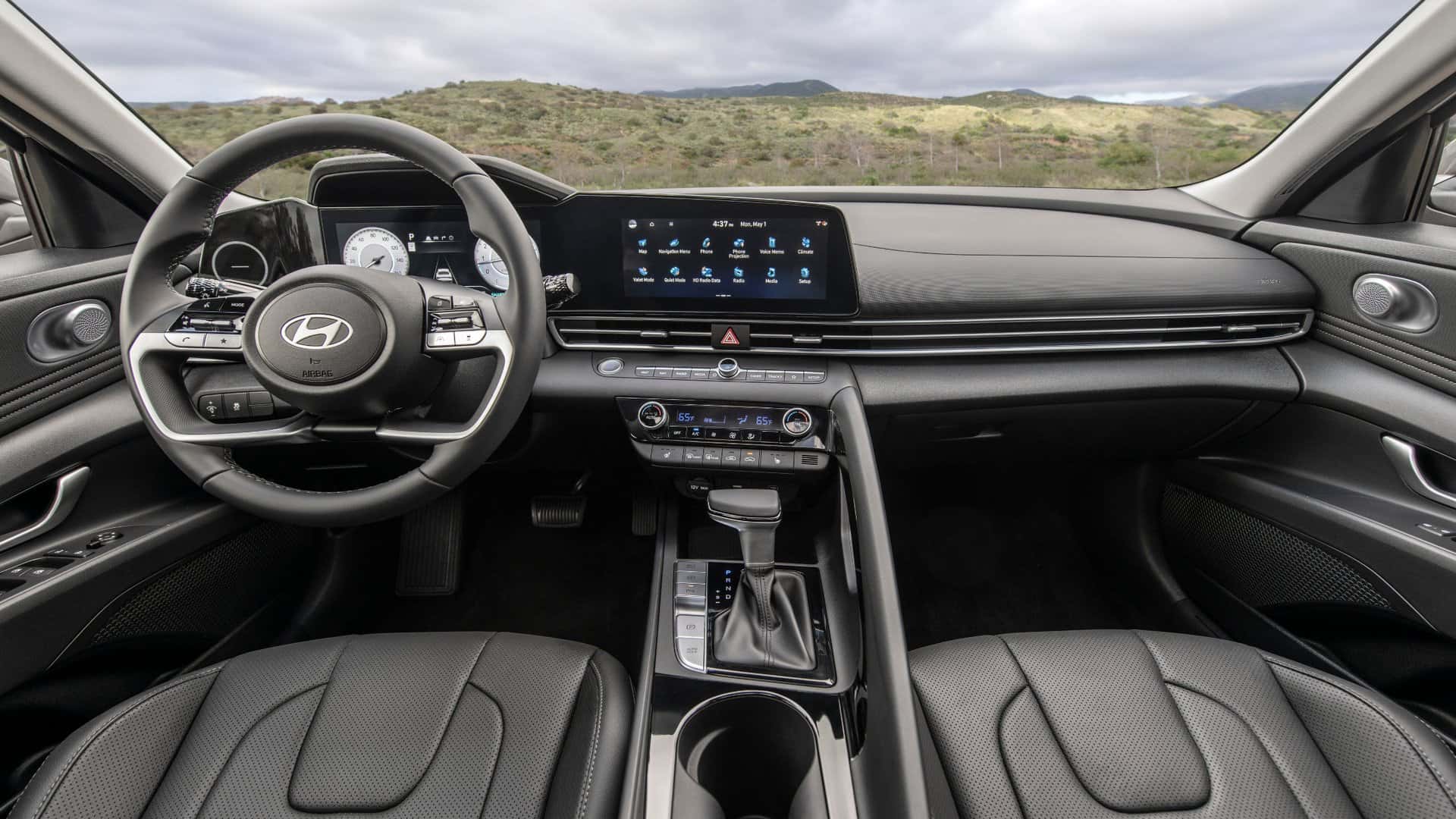

The infotainment system includes an 8-inch display with wireless smartphone integration in standard trims. Higher trims feature a 10.25-inch navigation system with integrated satellite radio and connected services. The system supports Bluetooth® connectivity, voice recognition, and multiple USB ports, including USB-C charging ports for rear passengers.
Wireless charging capability is included in select trims. The vehicle also supports connected car services through an integrated system that enables remote access and monitoring functions. A Wi-Fi hotspot is available in configurations equipped with navigation.
The audio system ranges from a six-speaker setup to an eight-speaker Bose® premium audio system with a center channel and subwoofer. Speed-sensitive volume control is included to maintain consistent audio levels during driving.
Safety Systems and Driver Assistance Technologies
The 2026 Hyundai Elantra includes a comprehensive set of passive and active safety systems. The airbag system consists of front airbags, side-impact airbags, and curtain airbags for front and rear passengers. The vehicle includes an Occupant Classification System and seatbelt pretensioners for enhanced occupant protection.
Standard safety systems include Electronic Stability Control, Vehicle Stability Management, Traction Control System, and Hill Start Assist Control. Tire Pressure Monitoring System and Brake Assist are also included.
Driver assistance systems include Forward Collision Avoidance Assist with pedestrian detection, Blind Spot Collision Warning, and Rear Cross Traffic Collision Avoidance Assist. Lane Keeping Assist and Lane Following Assist are included to support lane stability. Driver Attention Warning monitors driver behavior and provides alerts.
Higher trims include additional systems such as Smart Cruise Control with Stop and Go and Highway Drive Assist. These systems support controlled acceleration and braking during highway driving conditions. Safe Exit Warning and Rear Occupant Alert are included to enhance passenger safety during vehicle exit.
Interior Dimensions and Cargo Capacity
The interior provides a passenger volume of 99.4 cubic feet. Cargo capacity in the trunk measures 14.2 cubic feet. Total interior volume is 113.6 cubic feet. Front headroom measures 40.6 inches, reduced to 38.7 inches with a sunroof. Rear headroom measures 37.3 inches. Front legroom is 42.3 inches, while rear legroom is 38.0 inches.

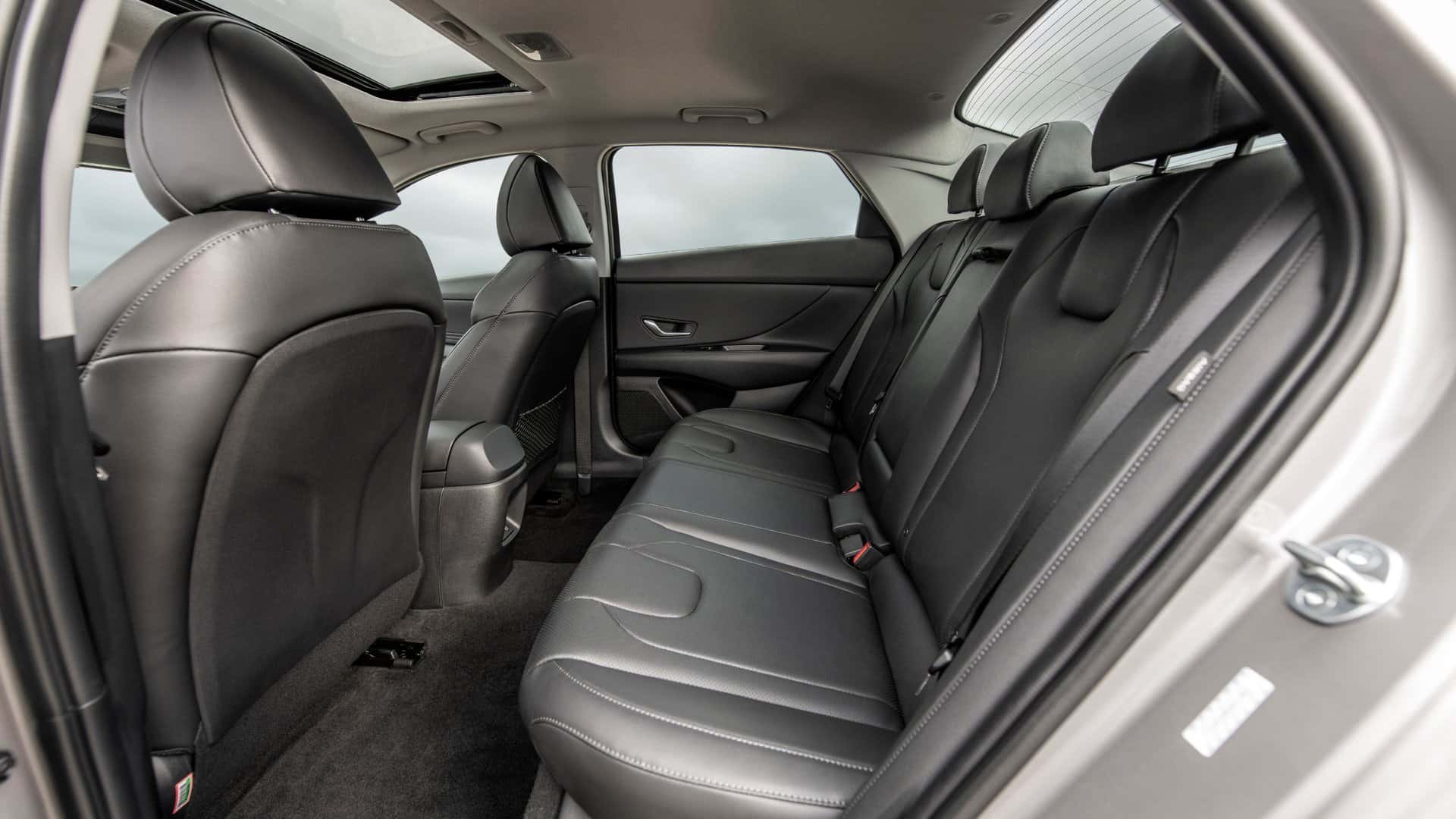

Shoulder room measures 56.5 inches in the front and 55.6 inches in the rear. Hip room measures 53.4 inches in the front and 50.5 inches in the rear. Rear seats include a 60/40 split folding configuration in higher trims, allowing flexible cargo expansion.
