2026 Hyundai IONIQ 5 N nearby Conway, SC
The 2026 Hyundai IONIQ 5 N is an all-electric N AWD performance vehicle built around dual permanent-magnet synchronous motors, a high-capacity lithium-ion battery, specialized chassis hardware, and N-focused vehicle controls. It combines a 162 MPH maximum vehicle operation speed with N Grin Boost output ratings, an 84.0 kWh battery system, large ventilated disc brakes, and electronically controlled suspension. The model also integrates comfort, connectivity, safety, driver-assistance technology, and flexible cargo space into a five-passenger cabin.
Electric Performance and Powertrain Engineering
The 2026 Hyundai IONIQ 5 N uses an N AWD configuration with dual permanent-magnet synchronous motors. This electric motor system produces 448 kW, equal to 601 horsepower, under standard maximum output ratings. With N Grin Boost, output increases to 478 kW, equal to 641 horsepower. Torque measures 740 Nm, or 545 lb-ft, and N Grin Boost raises that figure to 770 Nm, or 568 lb-ft. This powertrain gives the 2026 Hyundai IONIQ 5 N a defined technical foundation centered on electric output, all-wheel-drive traction, and N-specific performance control.
Dual-Motor AWD Output
The dual electric motor arrangement uses the N AWD system to achieve a combined output rating of 448 kW under standard conditions. With N Grin Boost active, the combined output increases to 478 kW. Torque distribution under standard ratings measures 740 Nm, which rises to 770 Nm with N Grin Boost, providing the 2026 Hyundai IONIQ 5 N with significant enhancements in both power and torque under the boosted setting.
Transmission and Drive Modes
The 2026 Hyundai IONIQ 5 N uses a single-speed reduction gear transmission with shift-by-wire operation. Its gear ratio measures 2.263 at the front and 2.265 at the rear, with a 4.706 final gear ratio. The front drive system uses a dog clutch disconnector, while the rear drive system does not list a clutch. Lubricant oil capacity measures 3.2 liters at the front and 3.4 liters at the rear. Drive Mode Select provides Eco, Normal, Sport, N, N Custom 1, and N Custom 2 through steering-wheel buttons, giving the driver direct access to multiple calibration choices.
Battery System and Charging Capability
The 2026 Hyundai IONIQ 5 N pairs its dual-motor powertrain with a lithium-ion battery engineered for high-output electric operation. The battery system capacity measures 84.0 kWh, and system voltage measures 697 V. Battery power output measures 535 kW for discharge and 432 kW for charging. Energy density measures 78.5 Wh per pound, while battery weight is listed at 1,071 pounds. The system also includes a battery preconditioning function, which supports the listed battery heating system for the N AWD configuration.
High-Voltage Battery Specifications
The lithium-ion battery in the 2026 Hyundai IONIQ 5 N uses a 2P192S structure and lists SK Innovation as the battery supplier. Its 84.0 kWh capacity gives the performance electric system a defined storage specification. The 697V battery voltage supports the high-output electric architecture listed for the model. The battery system works with the vehicle’s 12-volt non-traction electrical system for supporting electrical functions separate from propulsion. All-electric range and combined MPGe remain listed as TBD, so those figures should not appear as finalized technical values.
Charging Hardware and Charge Times
The 2026 Hyundai IONIQ 5 N features a NACS charge port located on the passenger-side rear quarter. Charge time with AC Level II standard 240V charging from 10 percent to 100 percent measures 7 hours and 20 minutes. NACS DC fast charging at 150 kW and 400 V from 10 percent to 80 percent measures 30 minutes. With a CCS adapter, 50 kW DC fast charging from 10 percent to 80 percent measures 1 hour and 21 minutes. The model also supports ultra-fast charging up to 800V and 350 kW, with a listed 10 percent to 80 percent charge time of 18 minutes under 350 kW DC fast charging.
On-Board Charger and Power Functions
The on-board charger in the 2026 Hyundai IONIQ 5 N lists a maximum capacity of 10.9 kW. Its output density measures 1.4 kVA per liter. The model also includes Vehicle to Load two-way on-board charging with a charge port external accessory adapter. This feature gives the vehicle a functional electrical output role beyond propulsion and charging. The charging system also includes a powered open-and-close charge port door, which supports daily charging access through an integrated exterior feature.
Disclaimer: Approximately 18 minutes to charge from 10% to 80% on a 350-kW, 800V DC ultra-fast charger. Actual charging time varies based on a number of factors, including current battery charge level, output of the charging unit, vehicle and battery settings, battery temperature and outside temperature. Ultra-fast charging stations are provided by independent companies and availability is not guaranteed.
Chassis, Steering, Suspension, and Braking
The 2026 Hyundai IONIQ 5 N uses a unibody monocoque body structure with primary materials listed as advanced high-strength steel and high-tensile steel. Its chassis combines rack-mounted electric power steering, electronically controlled suspension, large ventilated disc brakes, and performance wheel and tire equipment. These systems support the vehicle’s N AWD powertrain with hardware designed for control, braking response, and steering precision. The model also includes regenerative brake control and N e-Shift virtual gear shift paddle functions through the steering wheel area. Together, these systems define the mechanical character of the 2026 Hyundai IONIQ 5 N through documented components and measurable specifications.
Steering and Turning Hardware
The steering system uses rack-and-pinion-type steering gear with rack-mounted Motor Driven Power Steering. The steering wheel measures 14.5 inches, or 370 mm, in diameter. The overall steering gear ratio measures 12.54:1. Steering wheel travel measures 2.29 turns lock to lock. The curb-to-curb turning diameter measures 40.7 feet, giving the 2026 Hyundai IONIQ 5 N a defined low-speed maneuvering specification within its performance-oriented chassis package.
Suspension and Body Structure
The front suspension uses a MacPherson® strut design, while the rear suspension uses a multi-link five-link layout. Both front and rear suspension systems include high-performance dampers with Electronic Controlled Suspension. This chassis layout combines different front and rear suspension designs to address the vehicle’s steering, load, and drive requirements. The unibody monocoque body provides the main structural format for the vehicle. Advanced high-strength steel and high tensile steel serve as the primary body and chassis materials listed for the 2026 Hyundai IONIQ 5 N.
Braking System and Regeneration
The 2026 Hyundai IONIQ 5 N uses ventilated disc brakes at the front and rear. The front brake size measures 400 x 34 mm, or 15.7 x 1.3 inches. The rear brake size measures 360 x 20 mm, or 14.2 x 0.8 inches. The braking system includes ABS with Electronic Brake-force Distribution, using four wheels, four channels, and four sensors. Hillstart Assist Control, Integrated Electronic Brake, Brake Assist, Electric Parking Brake with Automatic Vehicle Hold, and regenerative brake control with N e-Shift virtual gear shift paddles add further braking and control functions.
Exterior Dimensions, Lighting, and Functional Design

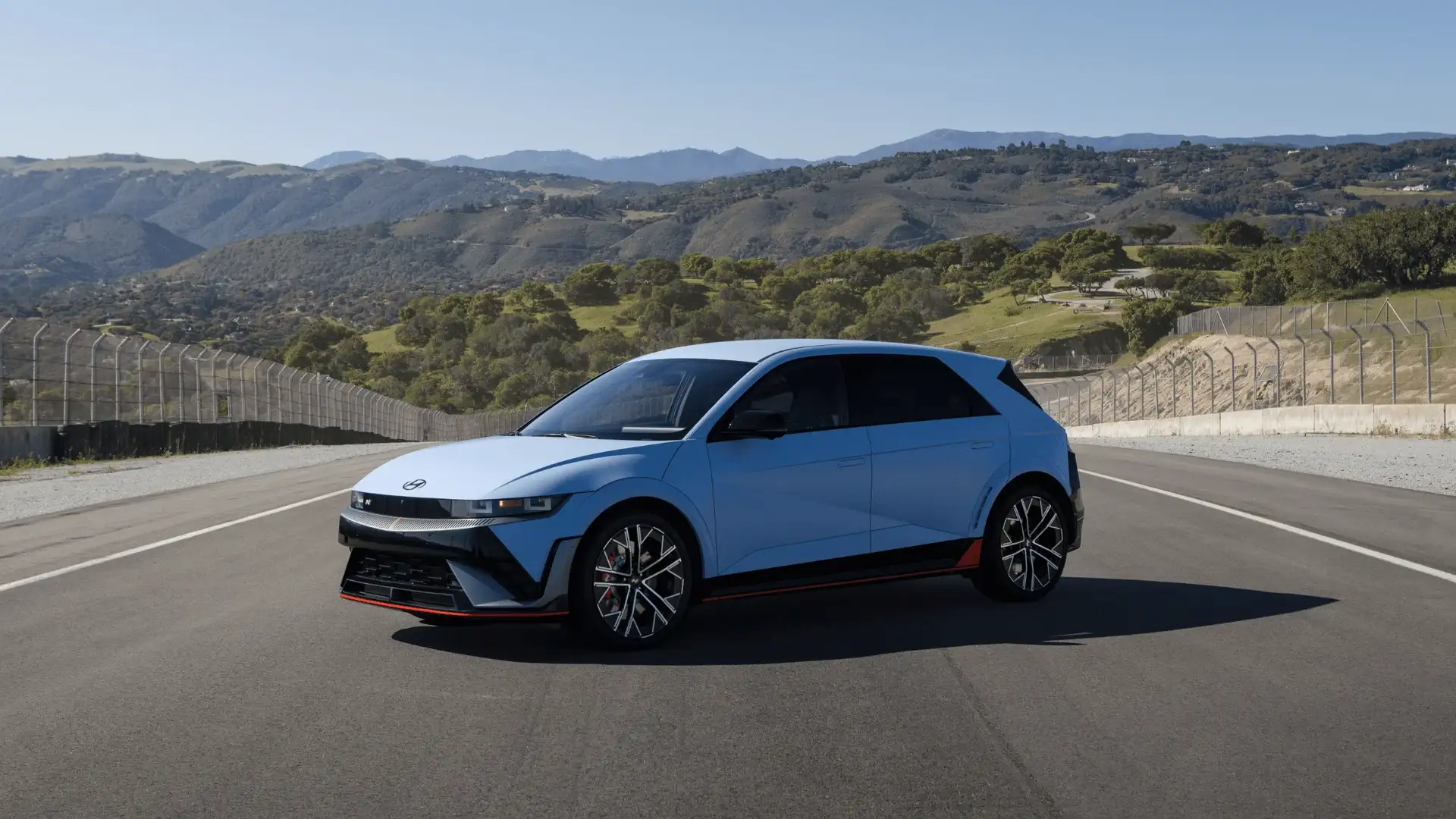

The 2026 Hyundai IONIQ 5 N combines performance-focused exterior equipment with functional lighting, glass, mirror, and liftgate features. Its body measures 185.6 inches in overall length, 76.4 inches in overall width, and 62.4 inches in overall height. The wheelbase measures 118.1 inches, and the track width measures 65.6 inches at the front and 65.8 inches at the rear. Ground clearance at the battery measures 5.6 inches, and overhang measures 34.3 inches at the front and 33.3 inches at the rear. These measurements give the 2026 Hyundai IONIQ 5 N a clearly defined dimensional footprint for packaging, stance, and interior space.
Wheels, Tires, and N Exterior Details
The 2026 Hyundai IONIQ 5 N uses 21 x 9.5J forged alloy wheels, with each wheel listed at 32 pounds. Tire specification measures 275/35R21 with Pirelli P ZERO PZ4 HN-spec tires with PNCS and ELECT+. A Tire Mobility Kit serves as the spare tire provision. The exterior includes gloss black outside mirrors, high glossy black mirror housing bases, heated mirror function, power folding operation, Blind-Spot Collision-Avoidance Assist indicators on the mirror glass, and LED turn signal indicators. The body also features gloss black bumpers and side skirts with Luminous Orange accents, body-color wide fender arches, active grille shutters, active air flaps in the front fascia, N-exclusive side sills, and premium gloss black and Luminous Orange N-exclusive exterior accents.
Lighting, Glass, and Access Features
Lighting equipment includes LED daytime running lights, projector-type LED headlights, automatic headlights, High Beam Assist, LED taillights, and an N-exclusive LED Center High-Mounted Stop Lamp. The 2026 Hyundai IONIQ 5 N also includes LED interior lights that support cabin visibility. Glass features include solar front glass for the front doors and windshield; laminated front and rear glass; an acoustic windshield; and rear, quarter, and heated back privacy glass. Wiper equipment includes aero wiper blades, rain-sensing front windshield wipers, and a rear wiper and washer. The exterior also includes flush-type body-color door handles with automatic operation, an N-exclusive rear spoiler integrated with the LED CHMSL, a hands-free Smart Power Liftgate with auto open and adjustable height setting, and a black shark-fin roof antenna.
Badging and Exterior Identification
The 2026 Hyundai IONIQ 5 N includes N-specific exterior identification details that support its model designation. The listed badging includes a flat aluminum N emblem with the N brand identity. It also includes a semi-glossy black H emblem at the front and IONIQ 5 emblems at the rear. These elements create a unique visual presence for the high-performance N model without changing the functional specifications described elsewhere. The exterior details work with the N-exclusive accents, spoiler, lighting, and wheel package to distinguish the vehicle within its documented equipment set.
Interior Space, Comfort, and Cargo Utility
The 2026 Hyundai IONIQ 5 N provides seating for five passengers and organizes its interior around N-specific seating, digital displays, climate control, and practical storage features. Passenger volume measures 107.0 cubic feet, and total interior volume measures 133.2 cubic feet. Front headroom measures 39.8 inches, while second-row headroom measures 38.7 inches. Front legroom measures 41.7 inches, and second-row legroom measures 39.9 inches. Shoulder room measures 57.7 inches in the first row and 57.9 inches in the second row, while hip room measures 53.9 inches in the first row and 53.6 inches in the second row.
Seating and Cabin Materials

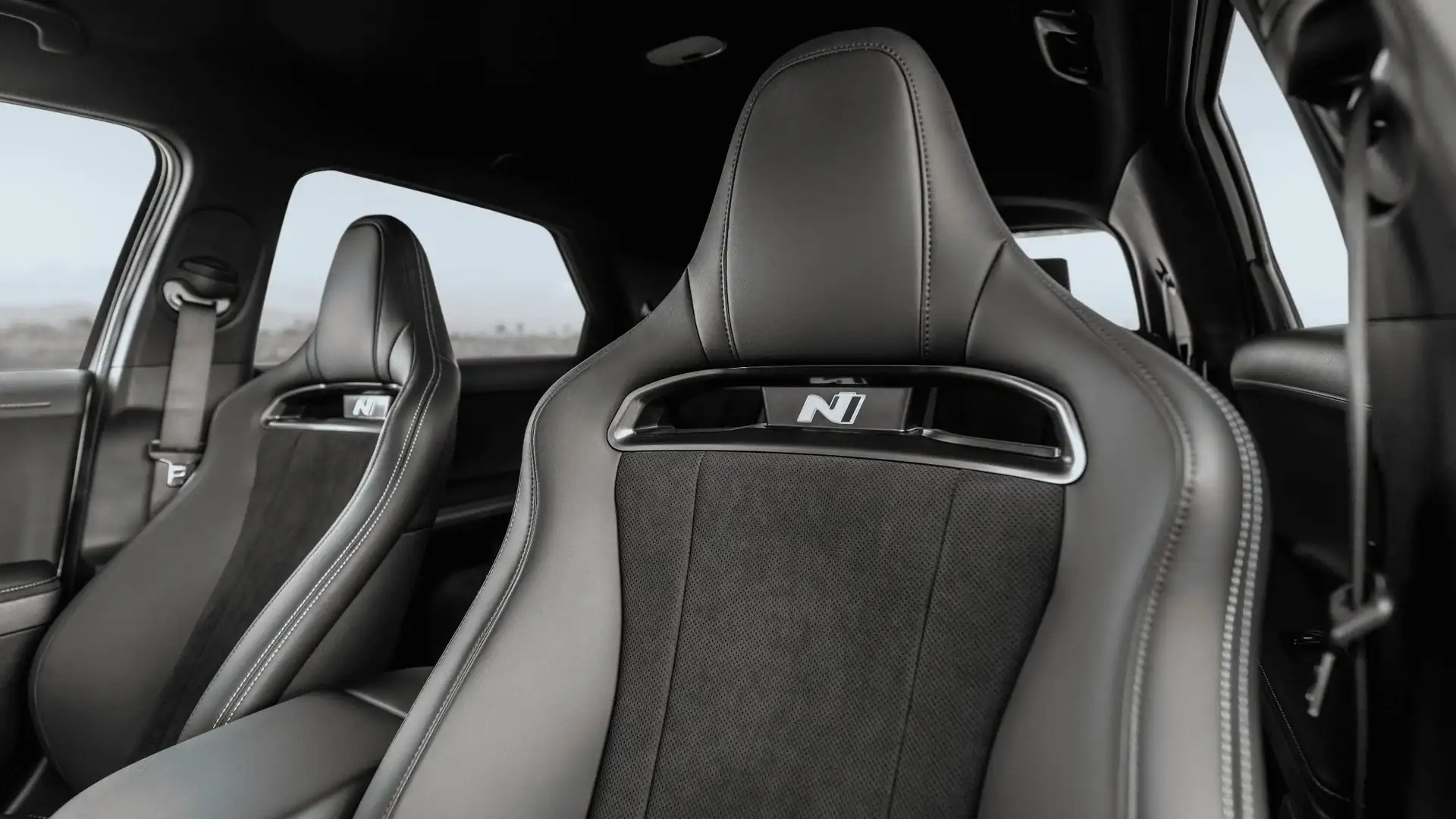

The cabin uses Eco Alcantara with H-Tex® seating surfaces. Front seating includes six-way manual adjustable driver and front-passenger seats. N lightweight sport bucket seats with illuminated N logos add a model-specific seating feature to the 2026 Hyundai IONIQ 5 N. Heated front seats and ventilated front seats support comfort across different cabin conditions. The rear seat uses a 60/40 split fold-down manual sliding bench with a reclining seatback, and the rear outboard positions include adjustable head restraints.
Climate, Trim, and Storage
The HVAC and defogger system include dual automatic temperature control with Driver Only mode, second-row A/C vents, an external temperature display, a PTC heater, a heat pump, a cabin air filter, and a rear window defroster with a timer. Interior trim includes black cloth roof trim, dark metallic-painted door handles, soft-touch door panels with checkered pixel door garnish trim paperette, and front and rear door storage pockets. The center console includes a storage compartment and armrest with a sliding lid. Additional cabin features include front and rear bottle holders, front and rear power window switches, dual vanity mirrors with covers, sliding sunvisor function, sunvisor illumination, and a column-type shift-by-wire stalk. Cargo functionality includes four cargo tie-down anchors, carpeted floor mats listed as port-installed equipment, and a cargo net listed as port-installed equipment.
Cargo Volume and Passenger Flexibility
Cargo capacity measures 26.1 cubic feet with the second-row seats up. With the second-row seats down, cargo capacity measures 59.3 cubic feet. The 60/40 split rear seat design allows the cabin to support passenger and cargo needs through folding flexibility. The manual sliding rear bench and reclining seatback add additional adjustment capability for second-row occupants. Combined with the hands-free Smart Power Liftgate and adjustable height setting, the 2026 Hyundai IONIQ 5 N gives drivers functional access to the rear cargo area while preserving a passenger-focused interior layout.
Digital Technology, Audio, and Connected Features
The 2026 Hyundai IONIQ 5 N includes a technology package centered on digital displays, navigation, audio, device connectivity, telematics, and digital key access. The head unit includes a 12.3-inch color touchscreen with ccNC, AM/FM, SiriusXM®, HD Radio™, and onboard navigation. The model also includes a 12.3-inch digital instrument cluster with N mode and EV Technology Display. These screens support both entertainment and vehicle status information. The technology package gives the driver access to propulsion data, connectivity tools, and driver-assistance indicators through integrated cabin interfaces.
Infotainment and Device Connectivity
The audio system includes Bose® premium audio with an external amplifier and eight speakers. The speaker layout includes two front door-mounted speakers, two tweeters, two rear speakers, a center front speaker, and a subwoofer. Dynamic Voice Recognition, wireless Android Auto™, wireless Apple CarPlay®, and Bluetooth® Multiple Device Connection for up to two devices are standard. The cabin includes three first-row and two second-row USB Type-C ports, with one data and charge port and four charge-only ports that supply 27W through the charging ports. A 15W wireless phone charger, rearview camera, Bluelink®+ Connected Car System, Bluelink®+ Remote Charge Access, Wi-Fi Hotspot, and Hyundai Pay add further digital and connected functionality.

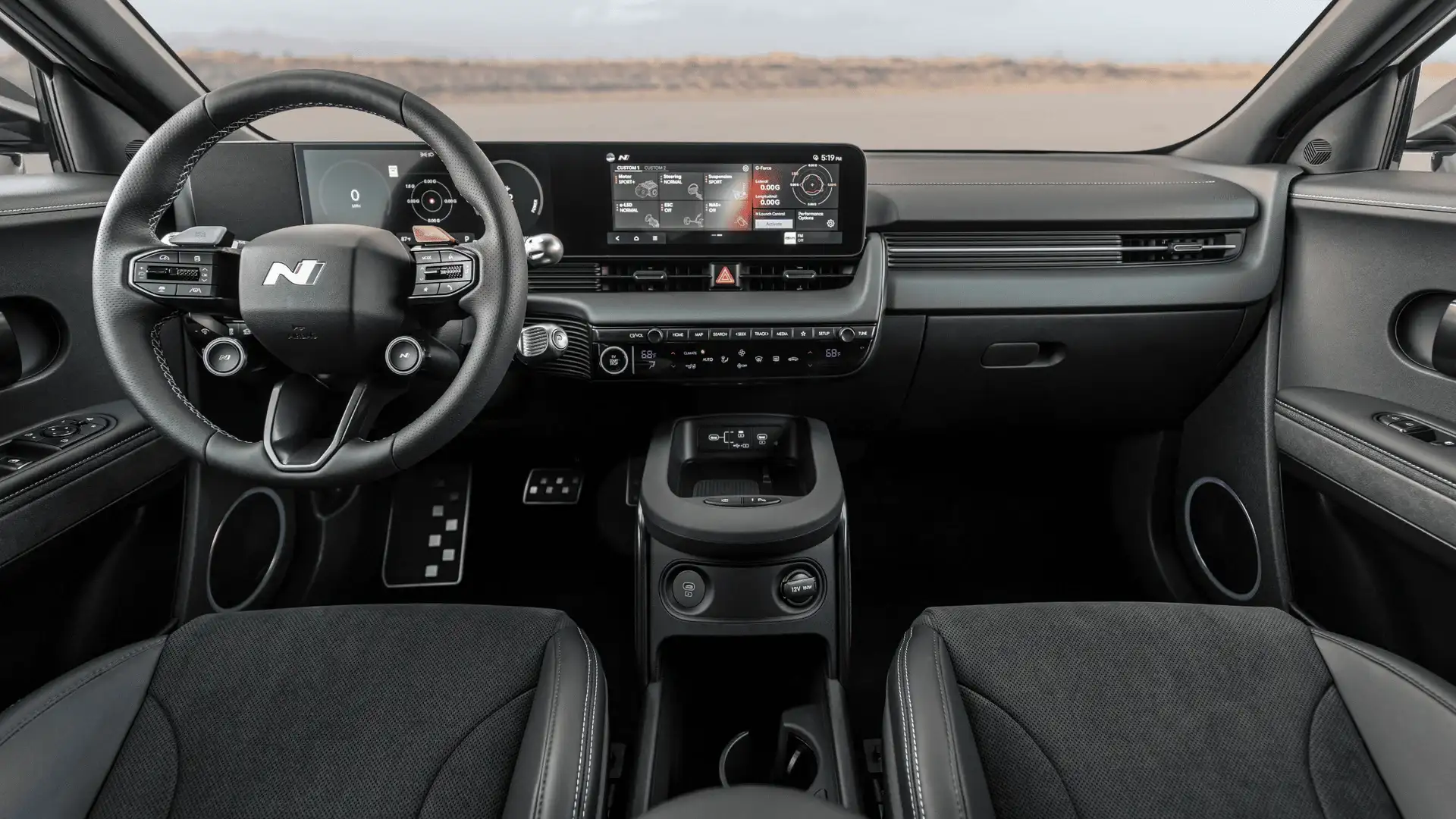

Instrumentation and Cabin Controls
The digital instrument cluster includes a speedometer, system power gauge, charge level display, digital odometer, and trip odometer. Indicator functions include PRND, momentary regenerative braking level, Smart Cruise Control, turn signal and hazard information, High Beam Assist, parking brake, low power, trunk lid open, brake, check engine, ABS, TPMS, ESC, and MDPS. Additional indicators include low washer fluid, immobilizer, drive mode and ready-to-drive status, BCA, LKA, DAW, FCA, SEA, and HDA. Warning lights include battery charge, door ajar, airbag, seatbelt, headlight, and power steering. The system also includes seatbelt reminders for the driver and all passengers, along with adjustable illumination level.
Steering Wheel and Key Technology
The 2026 Hyundai IONIQ 5 N uses a three-spoke steering wheel with a 14.5-inch diameter. The wheel is perforated leather-wrapped, heated with two-step operation, and adjustable with tilt and telescoping functions. Steering wheel controls include audio volume, seek, mode, Bluetooth® hands-free functions, wireless audio streaming, phonebook transfer, and Smart Cruise Control. The steering wheel also includes regenerative braking and N e-Shift virtual gear shift paddle shifters. Access technology includes two proximity keys with separate valet keys, push-button start, a black N key fob, and Hyundai Digital Key 2 Premium with Near Field Communication, Bluetooth® Low Energy, and Ultra Wideband.
Convenience and Interior Lighting
Convenience features include Smart Cruise Control with Stop and Go and Machine Learning, power windows with front and rear auto-down and auto-up operation, power door locks, remote keyless entry with alarm and panic function, and proximity key entry with push-button start. Remote releases are listed for the hood and charge door. The interior includes a fixed center stack storage tray, a fixed armrest storage with tray, front center console cupholders, rear seat center armrest cupholders, a rear center armrest, rear side-window sunshades, two 12-volt outlets, four assist grips, and one rear coat hanger. The glove compartment is damped and illuminated, and the inside rearview mirror is an auto-dimming EC mirror with HomeLink. Interior lighting includes a central dome light with delay and auto cut-off, LED interior lights, an LED cargo area light, hazard switch illumination, illuminated power window switches, and 64-color ambient interior lighting for the front and rear door trim and speaker rings.
Safety, Driver Assistance, and Security Systems
The 2026 Hyundai IONIQ 5 N includes passive safety, active safety, restraint systems, child safety equipment, and driver-assistance technologies. Its safety structure includes advanced front airbags for the driver and front passenger, an Occupant Classification System, a seat weight sensor, and a seat track sensor. Side-impact thorax airbags serve the driver and front passenger, while side air curtains serve front and rear passengers with rollover sensors. Seatbelt equipment includes three-point outboard seatbelts, a three-point rear inboard seatbelt, adjustable front-seat shoulder belt anchors, and seatbelt pretensioners and load limiters for all outboard seating positions. Rear LATCH lower anchors and upper tether anchors, a power window lock-out button, and power-operated rear child safety locks further support passenger protection.
Active Safety and Stability Systems
The active safety package includes a regenerative braking system with Anti-lock Braking System and four-wheel disc brakes. Electronic Stability Control with Traction Control and Brake Assist supports vehicle control functions. Vehicle Stability Management adds another stability-related system to the safety package. Tire Pressure Monitoring includes an individual tire indicator and Tire Fill Complete Alert. These systems work with the braking and chassis hardware to support controlled driving behavior through electronic monitoring and intervention functions listed for the model.
Driver Assistance and Parking Support
Driver-assistance equipment includes Blind-Spot Collision-Avoidance Assist, Surround View Monitor, Blind-Spot View Monitor, and Rear Cross-Traffic Collision-Avoidance Assist. Parking features include Parking Distance Warning for forward, side, and reverse zones, plus Parking Collision-Avoidance Assist in Reverse. Forward Collision-Avoidance Assist 2 includes car, pedestrian, cyclist, junction turning, junction crossing, lane change oncoming, lane change side detection, and evasive steering assist functions. Lane Keeping Assist, Lane Following Assist, steering wheel haptic feedback for LKA and BCA, Intelligent Speed Limit Assist, Driver Attention Warning, and Forward Attention Warning add further driver support. Safe Exit Assist, Navigation-based Smart Cruise Control with Curve Control, Highway Driving Assist 2, High Beam Assist, and Advanced Rear Occupant Alert with radar-type detection complete the listed driver-assistance features.
Passive Security and Body Protection
Passive safety equipment includes a front crumple zone, 2.5-MPH bumpers, and bodyside reinforcements. Security equipment includes an Electronic Shift Lock System and an electronic-type Ignition Key Interlock. The anti-theft system integrates with remote keyless entry and the panic alarm. An immobilizer also appears in the security equipment list. These features complement the restraint systems, driver-assistance technologies, and active safety hardware in the 2026 Hyundai IONIQ 5 N.
Visit ALM Hyundai Florence for a Test Ride
The 2026 Hyundai IONIQ 5 N brings together dual-motor AWD performance, N Grin Boost output, electronically controlled suspension, large ventilated brakes, advanced cabin technology, and a comprehensive safety package. Our team can help drivers review its performance settings, charging features, comfort equipment, handling hardware, and driver-assistance systems in person. A scheduled test drive gives shoppers the opportunity to experience the seating position, digital displays, steering controls, braking feel, and cargo access in a focused setting. Visit ALM Hyundai Florence near Conway, SC to learn more about the 2026 Hyundai IONIQ 5 N and arrange a test drive with our team. We can also walk through the model’s technology, comfort, safety, and charging functions so drivers can understand how its equipment supports daily use and performance-focused driving.
