2026 Hyundai IONIQ 5 near Conway, SC
The 2026 Hyundai IONIQ 5 is built on a dedicated electric platform designed to support scalable battery systems, multiple motor configurations, and integrated vehicle technologies. It uses a permanent-magnet synchronous motor system across all trims and offers both rear-wheel-drive and all-wheel-drive configurations. The vehicle incorporates a high-voltage electrical system ranging from 523V to 697V, depending on battery configuration, which supports efficient power delivery and charging performance. The structure uses a unibody design composed primarily of advanced high-strength steel and high-tensile steel, contributing to structural rigidity and durability.
Electric Motor Output and Drive System Calibration
The 2026 Hyundai IONIQ 5 provides multiple motor configurations that vary by drivetrain. The standard-range rear-wheel-drive configuration produces 125 kW, equivalent to 168 horsepower, with a maximum torque output of 350 Nm or 258 lb-ft. The extended-range rear-wheel-drive configuration increases output to 168 kW, or 225 horsepower, while maintaining the same torque level. The all-wheel-drive system uses a dual-motor layout consisting of a 74 kW front motor and a 165 kW rear motor. Combined system output reaches 320 horsepower with 605 Nm or 446 lb-ft of torque. This configuration improves traction and power distribution across different driving conditions.
All variants use a single-speed reduction gear transmission with a shift-by-wire system. The gear ratio is 2.263 with a final gear ratio of 4.706. The drivetrain includes a front dog clutch disconnector in AWD models, allowing selective engagement of the front motor to improve efficiency. Drive Mode Select is standard and includes Eco, Normal, Sport, and Snow settings. The XRT trim includes Terrain Mode Select with additional driving modes such as Mud and Sand. These systems adjust throttle response, motor output, and traction control parameters.
Battery System Configuration and Charging Performance
The battery system is available in two configurations. The standard-range battery has a capacity of 63.0 kWh, while the extended-range battery increases capacity to 84.0 kWh. Both use lithium-ion chemistry and are supplied by SK Innovation. The battery pack structure consists of 288 cells arranged in 24 modules for the smaller pack and 384 cells in 32 modules for the larger pack. Battery weight is approximately 815.7 pounds for the standard-range system and 1054.0 pounds for the extended-range system, excluding cooling components.
Charging capability is supported by an onboard charger with a maximum capacity of 10.9 kW. Level II AC charging at 240V takes approximately 5 hours and 40 minutes for the smaller battery and 7 hours and 20 minutes for the larger battery when charging from 10 percent to 100 percent. DC fast charging performance varies based on charger output. At 150 kW using a 400V system, charging from 10 percent to 80 percent requires approximately 24 minutes for the smaller battery and 30 minutes for the larger battery. When connected to an 800V system exceeding 250 kW, charging time is reduced to approximately 20 minutes for both battery configurations. A 50 kW DC charger requires approximately 1 hour and 1 minute to 1 hour and 21 minutes for the same charging range. The system also supports battery preconditioning to improve charging efficiency in low-temperature conditions.
Suspension Geometry, Steering Ratio, and Braking System
The suspension system uses a MacPherson® strut design at the front and a multi-link five-link configuration at the rear. Both systems include high-performance dampers designed to maintain stability and ride control. The steering system is a rack-and-pinion type with motor-driven power assistance. The steering ratio is 14.26 to 1, and the system provides 2.67 turns from lock to lock. The turning diameter measures 39.4 feet, allowing controlled maneuverability in confined spaces.
The braking system includes ventilated front disc brakes with dimensions of 325 mm by 30 mm and solid rear disc brakes measuring 325 mm by 12 mm. The system integrates an Anti-lock Braking System with Electronic Brake-force Distribution, along with Brake Assist and an active hydraulic booster. Regenerative braking is standard and includes adjustable levels controlled by steering wheel-mounted paddles. Hill Start Assist Control and an electric parking brake with automatic vehicle hold are also included.
Exterior Dimensions, Aerodynamics, and Functional Design
The exterior design is defined by a wheelbase of 118.1 inches, an overall length of 183.3 inches, and a width of 74.4 inches. The overall height is 63.0 inches, increasing to 64.0 inches for XRT models. Ground clearance is 6.1 inches, with XRT models providing 7.0 inches. The vehicle achieves a drag coefficient of 0.282, which contributes to aerodynamic efficiency.
Lighting systems include LED daytime running lights, LED headlights with either multi-focus reflector or projector configurations, and LED taillights. The Limited trim adds a premium front light bar. Automatic headlights and high-beam assist are standard across all trims. Exterior features include flush-type automatic door handles, active grille shutters, and a power-operated charge port door. The vehicle offers multiple wheel sizes, including 18-inch, 19-inch, and 20-inch alloy wheels paired with corresponding tire dimensions.
Additional exterior functionality includes a hands-free smart power liftgate with adjustable height and a panoramic fixed glass roof on higher trims. Heated side mirrors with integrated blind-spot indicators and available power folding functionality enhance usability. Acoustic glass is used for the windshield and front windows to reduce cabin noise.
Interior Layout, Seating Systems, and Cargo Capacity
The interior is configured to accommodate five occupants and provides a total interior volume of 132.8 cubic feet. Passenger volume measures 106.5 cubic feet, with balanced headroom and legroom across both rows. Front legroom measures 41.7 inches, while rear legroom measures 39.4 inches.

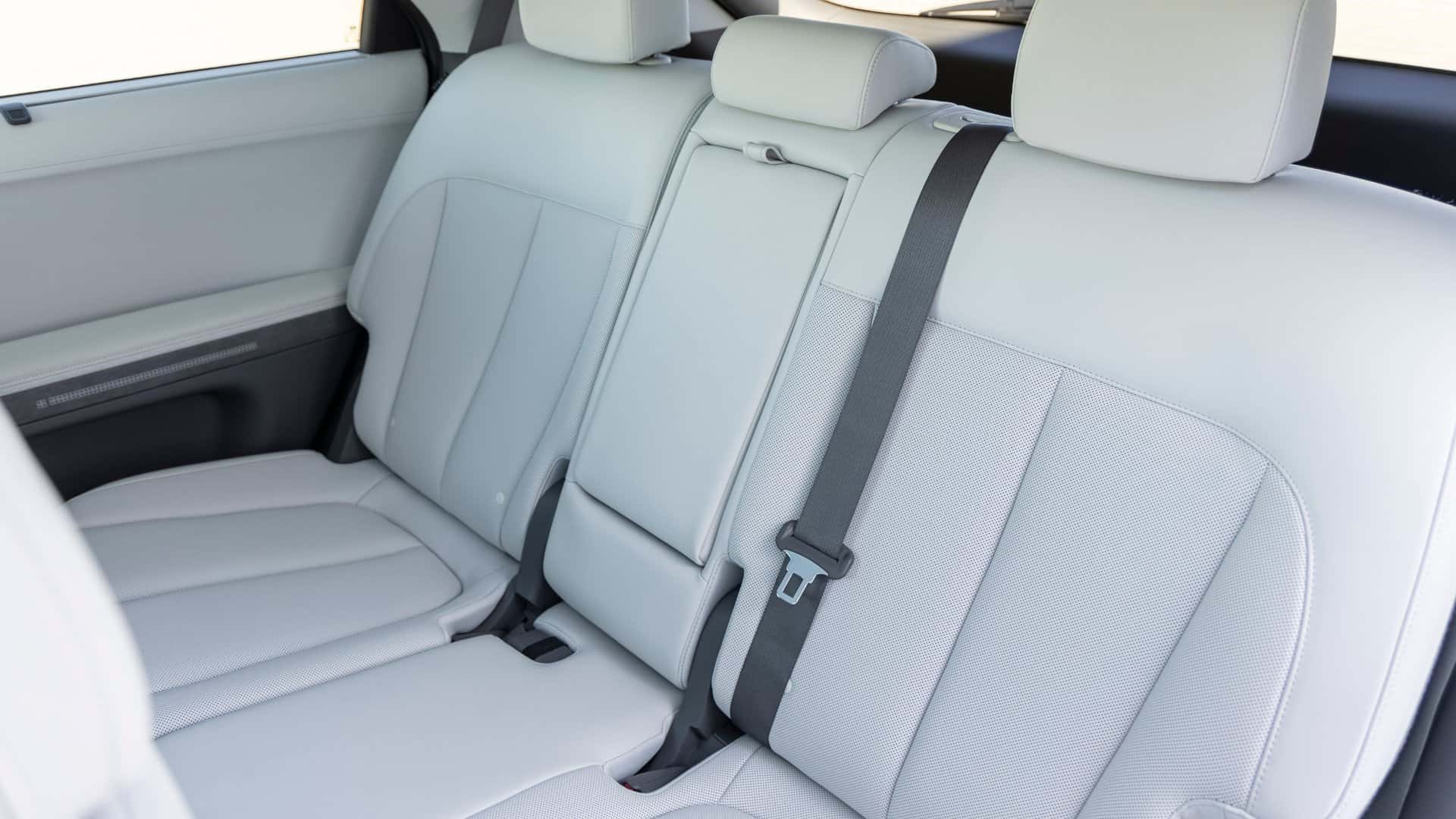

Seating surfaces vary by trim and include cloth and H-Tex® artificial leather materials. Front seats include an 8-way power-adjustable driver seat across all trims and an available 8-way power passenger seat on higher trims. Heated front seats are standard, while ventilated front seats are available on the Limited trim. The driver seat includes an optional relaxation function and integrated memory system. Rear seats feature a 60 to 40 split-folding design with sliding and reclining capability.
Cargo capacity measures 26.3 cubic feet with rear seats in place and expands to 58.5 cubic feet when the seats are folded. A front trunk provides an additional 0.85 cubic feet of storage. Interior storage solutions include a sliding center console on higher trims and multiple storage compartments integrated into the cabin layout.
Infotainment Systems, Connectivity, and Digital Interfaces

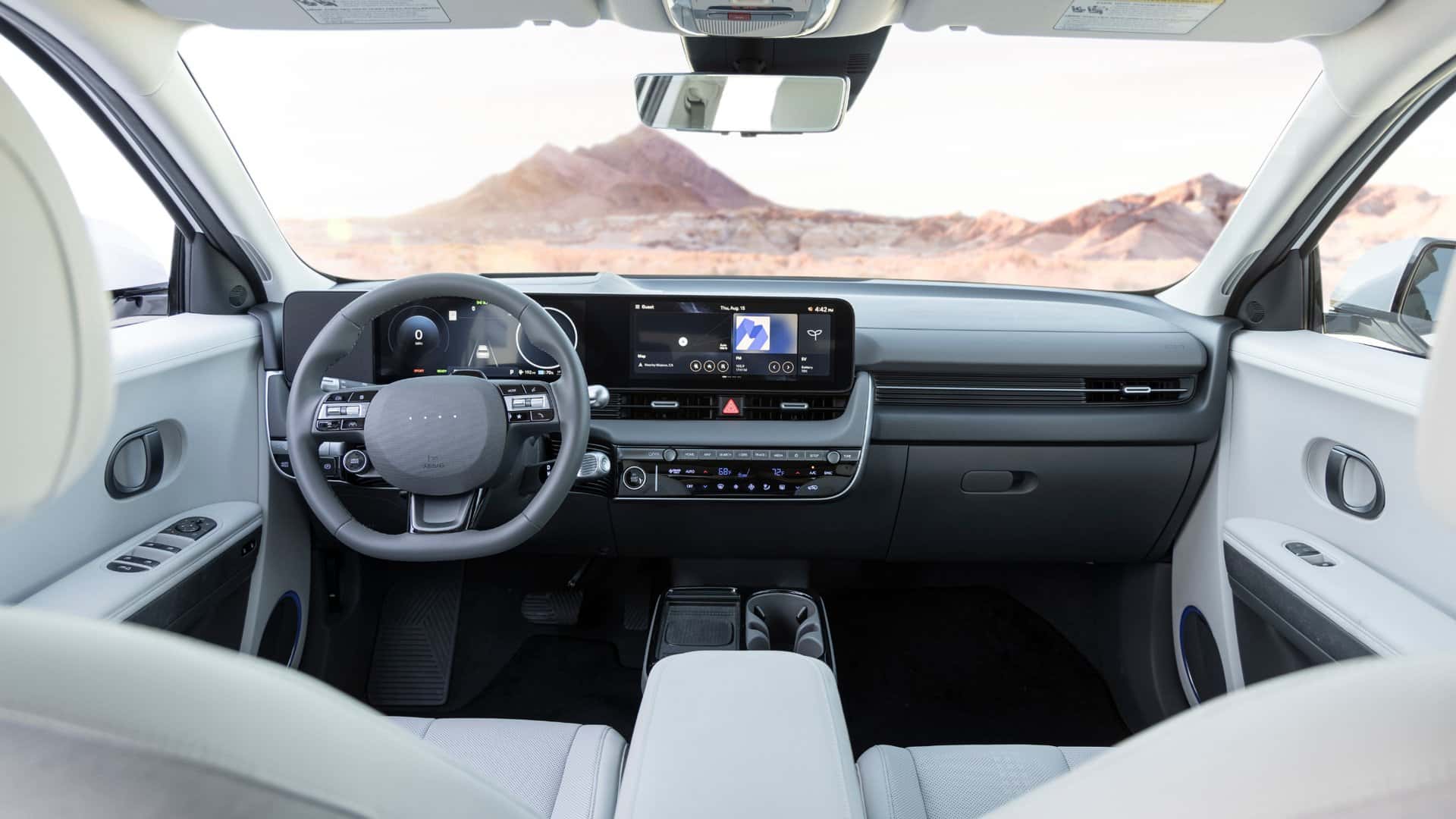

The vehicle integrates a 12.3-inch touchscreen infotainment system paired with a 12.3-inch digital instrument cluster. The infotainment system includes navigation, traffic data, and HD Radio™ capability. Wireless Apple CarPlay® and Android Auto™ are standard, along with Bluetooth® connectivity for multiple devices.
The audio system includes a standard six-speaker configuration, with an available Bose® premium audio system featuring eight speakers and an external amplifier. Additional features include dynamic voice recognition and a wireless smartphone charging system rated at 15 watts.
Connectivity features include Bluelink® Plus, which supports remote access functions and charging control. A Wi-Fi hotspot is included, along with Hyundai Digital Key 2 Premium, which uses NFC, Bluetooth® Low Energy, and ultra-wideband technology for smartphone-based vehicle access. A head-up display is available on higher trims, providing driver information within the field of view.
Climate Control, Convenience Systems, and Utility Features
The climate control system includes dual automatic temperature control with a driver-only mode. Rear air vents are integrated for second-row passengers. The system includes a PTC heater and a heat pump system on AWD models to improve efficiency. Cabin air filtration and a rear window defroster with a timer are standard.
Convenience features include smart cruise control with stop-and-go capability, proximity key entry with push-button start, and remote smart parking assist on select trims. The vehicle includes multiple USB-C ports, including three in the front row and two in the rear. A 12-volt power outlet is available in both the front and cargo areas.
Vehicle-to-Load functionality is included on higher trims and allows the battery to supply power to external devices. Additional features include an auto-dimming rearview mirror, a digital rearview mirror on select trims, and ambient interior lighting on the Limited trim.
Advanced Driver Assistance and Safety Systems Integration
The 2026 Hyundai IONIQ 5 incorporates a comprehensive safety system that includes multiple airbags, such as front, side-impact, curtain, and rear side airbags. The system includes an occupant classification system that adjusts airbag deployment based on seat conditions.
Active safety features include Forward Collision-Avoidance Assist with detection for vehicles, pedestrians, and cyclists. Higher trims expand this system to include junction turning and crossing detection, lane change detection, and evasive steering assistance. Lane Keeping Assist and Lane Following Assist are standard across all trims.
Blind-Spot Collision-Avoidance Assist, Rear Cross-Traffic Collision-Avoidance Assist, and parking distance warning systems provide additional awareness. Parking Collision-Avoidance Assist is available with forward, reverse, and side detection. Highway Driving Assist 2 is included on higher trims and integrates adaptive cruise control with lane-centering capability.
Driver monitoring systems include Driver Attention Warning and Forward Attention Warning. Intelligent Speed Limit Assist adjusts speed based on detected road signs. Safe Exit Assist prevents door opening when approaching traffic is detected. Rear Occupant Alert systems include both door logic and radar-based monitoring depending on trim level.
