2026 Hyundai Palisade near Conway, SC
The 2026 Hyundai Palisade delivers an expansive range of technical features across powertrain, drivetrain, suspension, and onboard systems. Built on a unibody frame using high-strength steel, it offers both internal combustion and hybrid electric variants, each designed with efficiency and functional utility in mind. The model supports multiple trim configurations, all engineered to meet varying use cases, including towing, daily commuting, and family transport. With consistent integration of new systems and measured updates to existing hardware, the vehicle presents a clear emphasis on control, safety, and usability through design and mechanical optimization.
Engine Systems and Hybrid Technology
The gasoline-powered 2026 Hyundai Palisade uses a 3.5-liter MPI and GDI DOHC V6 engine configured in a 24-valve V-type layout. Output reaches 287 horsepower at 6,400 rpm with a torque rating of 260 pound-feet at 5,000 rpm. This powertrain features a compression ratio of 12.3 to 1 and includes a hood insulator and aluminum construction for the block and head. Idle Stop & Go functionality comes standard. A single-tip exhaust is positioned on the passenger side, and fuel delivery is managed through a gasoline direct injection system. The engine runs on regular unleaded fuel.
The hybrid version combines a 2.5-liter turbocharged GDI DOHC 16-valve inline-four-cylinder engine with two electric motors. This system produces a total combined output of 329 horsepower and 339 pound-feet of torque. The electric motor configuration includes a 17-horsepower P1 motor and a 72-horsepower P2 motor. These motors produce 75 and 195 pound-feet of torque, respectively. A lithium-ion battery rated at 300 volts and 1.65 kilowatt-hours supports this system, delivering 64 kilowatts of battery power.
Transmission and Gear Ratios
The gasoline engine is mated to an 8-speed automatic transmission, designated A8LF1. It includes Shift-by-Wire controls and paddle shifters for manual gear selection. This transmission operates in front-wheel drive by default, with HTRAC all-wheel drive available. The final gear ratio is 3.510 for FWD and 3.648 for AWD.
The hybrid configuration employs a 6-speed automatic transmission with integrated P1 and P2 electric motors. The final drive ratio is 3.759 for both FWD and AWD variants. The terrain selection interface is operated by a dash-mounted button and toggle switch, applicable to AWD systems only. Drive mode select is standard and includes Eco, Sport, and My Drive settings.
Chassis Dynamics and Braking Components
Suspension on all variants uses a MacPherson® strut design at the front, with coil springs and a stabilizer bar. The rear suspension is a multi-link independent setup with separated shock and spring components. A self-leveling system is included as standard.
Braking systems include ventilated front discs measuring 345 mm in diameter and 30 mm in thickness. Rear brakes are solid discs sized at 325 by 20 mm. The braking system integrates electronic brake-force distribution, anti-lock braking, and a 10.5-inch brake booster with a 10.0 to 1 boosting ratio. Hillstart Assist Control, Brake Assist, and Downhill Brake Control are also standard features. The parking brake is electronic and includes an auto vehicle hold function.
Directional Control and Steering Systems
The 2026 Hyundai Palisade uses a column-mounted Motor Driven Power Steering system based on a rack-and-pinion design. The overall steering ratio is 14.3 to 1 across most trims, with the XRT PRO having a tighter 13.3 to 1 ratio. Steering requires 2.8 turns lock to lock. The turning diameter is measured at 39.2 feet for most models and 39.0 feet for the XRT PRO.
Exterior Structural Elements
Wheel options include 18-inch, 20-inch, and 21-inch alloys with widths ranging from 7.5J to 8.5J. Tire dimensions vary from 235/65 R18 to 265/45 R21, depending on trim. A compact spare is available on most internal combustion models, while hybrid variants are equipped with a tire mobility kit. Lighting systems across all trims include LED projector headlights, daytime running lights, taillights, and interior cabin lights. Automatic headlight operation and high beam assist are included.
Outside mirrors are body-colored and power-adjustable with available heating and auto-dimming features on higher trims. Black, silver, or body-color trim is used across bumpers, grilles, side sills, and lower fascia elements, depending on configuration. Acoustic glass is applied to the windshield and front side windows on most trims, with full cabin acoustic glass available at upper levels. Rain-sensing wipers are limited to the Calligraphy model.
Cabin Systems and Instrumentation
Seating capacity is either seven or eight, depending on configuration. Materials range from cloth and H-Tex® leatherette to full Nappa leather in upper trims. Front seats offer up to 8-way power adjustment with lumbar support and heating or ventilation options depending on trim. Select versions include Ergo-Motion seating, leg cushion extension, and Relaxation Mode.

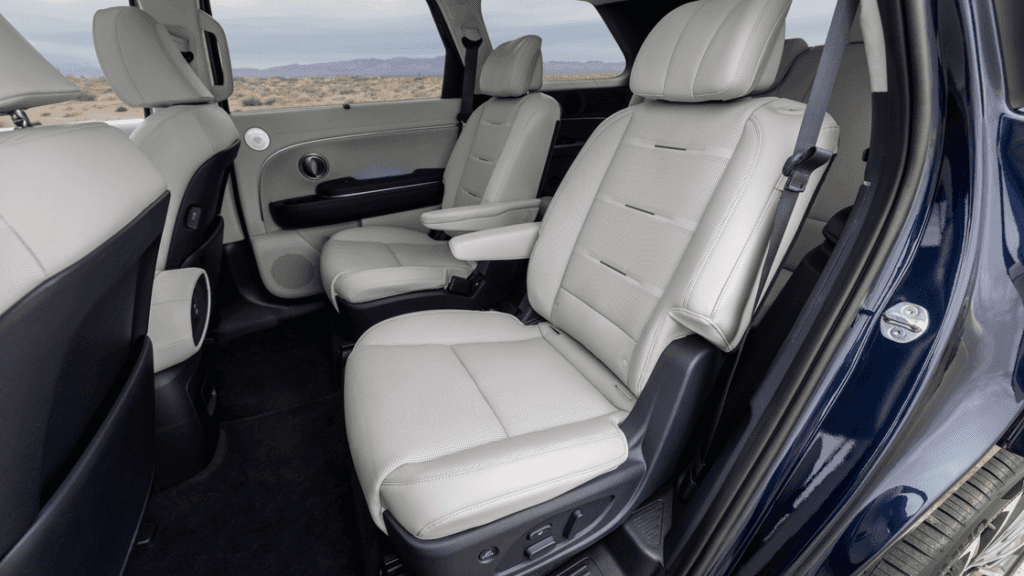

Second-row seating includes sliding captain’s chairs or bench configurations with heating and ventilation available in higher trims. Power adjustments for the second row and walk-in access for the third row are supported. The third row includes power folding, reclining, and heating in premium configurations.

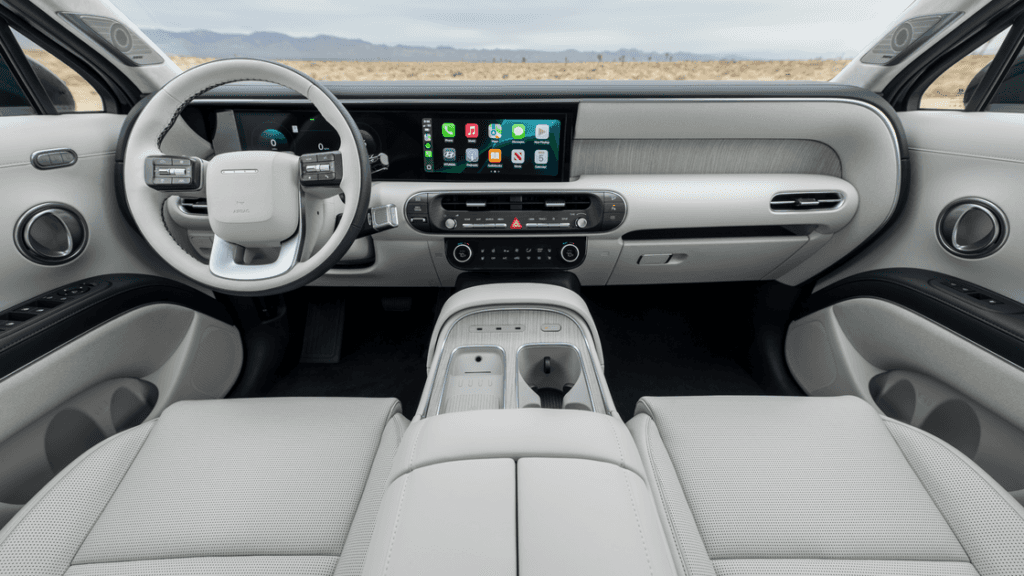

Instrumentation includes a standard 12.3-inch touchscreen with onboard navigation. Wireless Android Auto™ and Apple CarPlay® are supported. The audio system features a Bose® 14-speaker configuration on select trims. A 12.3-inch digital instrument cluster is standard on mid and upper trims, with a 12-inch color head-up display available on the Calligraphy. USB-C power ports are located in all three rows, and wireless charging is included at 15W for compatible devices. Select trims offer a built-in front and rear dashcam.
Climate and Electrical Infrastructure
A three-zone automatic climate control system with air vents in the second and third rows is standard. A PTC heater is included. The defogging system operates automatically and includes a rear defroster with a timer. Power windows include safety reversal and auto-up/down for the front, extending to the rear on premium trims. Sunshades for rear side windows are included on most trims. Electrical outputs include dual 12-volt sockets and a 115-volt outlet, where equipped.
Safety Technologies and Structural Security
Passive safety systems include front, side, and curtain airbags, plus a driver knee airbag and a front center airbag. Pretensioners and load limiters are present on front and rear seatbelts. LATCH anchors and top tether points are provided for child seating.
Active safety systems standard across all trims include electronic stability control, traction control, anti-lock braking, and a tire pressure monitoring system with individual tire identification. Driver assistance features include Lane Keeping Assist, Lane Following Assist 2, Forward Attention Warning, and Driver Attention Warning. Intelligent Speed Limit Assist, Navigation-based Smart Cruise Control with Stop and Go, and Smart Cruise Control 2 with emergency stop are standard.
Select trims include Blind-Spot Collision-Avoidance Assist, Rear Cross-Traffic Collision-Avoidance Assist, and Parking Collision-Avoidance Assist in reverse. A radar-based Advanced Rear Occupant Alert is available. Trailer Sway Control is integrated across the lineup.
Dimensions and Utility Ratings
The 2026 Hyundai Palisade has a wheelbase of 116.9 inches and an overall length of up to 200.4 inches. Width is fixed at 78.0 inches, and height reaches 69.5 inches. Ground clearance ranges from 7.4 inches on standard trims to 8.4 inches on the XRT PRO. Approach and departure angles reach 20.5 and 22.4 degrees on off-road-optimized versions. The coefficient of drag is measured at 0.31 for most models and 0.35 for the XRT PRO.
Interior headroom varies between 37.7 and 41.5 inches, depending on sunroof configuration. Legroom spans 44.2 inches in the front, 43.0 inches in the second row, and 32.1 inches in the third. Cargo capacity measures 86.7 cubic feet behind the first row, 46.3 cubic feet behind the second row, and 19.1 cubic feet behind the third row. Maximum trailer capacity is 5,000 pounds for the gasoline engine and 4,000 pounds for the hybrid. Fuel tank capacity is 19.0 gallons for ICE and 18.2 gallons for HEV models.
Visit ALM Hyundai Florence for a Test Drive
Explore the engineering, hybrid integration, and mechanical systems of the 2026 Hyundai Palisade. This vehicle offers a clear application of drivetrain variety, structural refinement, and digital control systems. A test drive enables detailed inspection of cabin configurations, powertrain output, and safety features in a live setting. Staff are available to explain system interfaces, assist with trim comparisons, and demonstrate real-time operational behaviors. Contact ALM Hyundai Florence near Conway, SC, to schedule your visit and examine this SUV’s full range of capabilities.
