2026 Hyundai Palisade near Myrtle Beach, SC
The 2026 Hyundai Palisade is engineered with updated mechanical systems, advanced materials, expanded electronic integrations, and a range of capabilities designed to support consistent performance. Its configurations include both gasoline and hybrid powertrains that utilize high-strength aluminum components, direct injection fuel systems, and drive technology that adapts to various operating environments. The model incorporates enhancements to the braking, suspension, aerodynamics, and interior electronic systems to create a balanced and technically focused design. Every feature is structured to function cohesively within the broader engineering platform that defines the 2026 Hyundai Palisade.
Engine Power and Mechanical Structure
The 3.5-liter V6 engine uses a combination of multipoint and gasoline direct injection with a dual overhead cam configuration that supplies 287 horsepower at 6400 rpm and 260 pound-feet of torque at 5000 rpm. The aluminum block and head help manage thermal efficiency and weight distribution. A compression ratio of 12.3 to 1 and a bore and stroke measurement of 92.0 by 87.0 millimeters define the mechanical dimensions of this engine. Idle Stop and Go is included to support controlled fuel usage during stops.
The hybrid 2.5-liter turbocharged option integrates a permanent magnet synchronous motor system along with a direct-injected engine that produces 258 horsepower at 5800 rpm and 260 pound-feet of torque beginning at 1800 rpm. Total system output reaches 329 horsepower and 339 pound-feet of torque. The electric motor arrangement consists of a P1 motor rated at 17 horsepower with 75 pound-feet of torque and a P2 motor rated at 72 horsepower with 195 pound-feet of torque. The lithium-ion battery system operates at 300 volts with a capacity of 1.65 kilowatt-hours and a power output rating of 64 kilowatts.
Both powertrains rely on distributorless ignition architecture. The V6 uses an 8-speed automatic transmission with well-defined gear ratios that support consistent acceleration across a wide range of speeds. The hybrid model uses a 6-speed automatic unit that incorporates both electric motors within its structure for coordinated torque delivery. Shift-by-wire operation is standard for quick and precise gear selection.
Drivetrain Operation and Vehicle Dynamics
Front-wheel drive is standard for all configurations, and Hyundai HTRAC all-wheel drive is available or standard depending on the trim. The system uses active on-demand logic to transfer torque to the appropriate wheels during varying traction conditions. Drive Mode Select provides settings labeled “Eco,” “Sport,” and “My Drive.” Terrain Mode Select is available on all-wheel-drive trims and includes Mud, Snow, and Sand settings to support conditions that require specific torque mapping and throttle response. Tow Mode is also included to adjust shift patterns and engine performance during trailering.
The final drive ratios for the V6 are 3.510 for front-wheel drive and 3.648 for all-wheel drive. The hybrid uses a uniform final drive ratio of 3.759 for both drivetrain layouts. These ratios work with the transmission programming to provide a predictable balance of performance and efficiency.
The braking system features ventilated front discs that measure 345 millimeters in diameter and solid rear discs that measure 325 millimeters. 4-channel ABS is supported by electronic brake force distribution. Brake assist and hill start assist are included for controlled stops and starts. Downhill Brake Control is standard on all-wheel-drive trims. An electronic parking brake with auto hold maintains position during low-speed transitions.
The steering system uses motor-driven power steering with a rack and pinion layout mounted at the column. The standard steering ratio is 14.3 to 1 with a tighter 13.3 to 1 ratio on the XRT PRO trim. The turning diameter is 39.2 feet on most trims and 39.0 feet on the XRT PRO.
The front suspension uses a MacPherson® strut configuration with coil springs, while the rear features a multilink independent system with separated shocks and springs. A self-leveling suspension function is integrated into all configurations to maintain consistent ride height during varying load conditions. The body structure is a unibody design built with high-strength steel for rigidity and weight control.
Exterior Engineering and Functional Design
The 2026 Hyundai Palisade uses a range of wheel sizes that include 18-inch, 20-inch, and 21-inch options depending on the trim. Each wheel is matched with tire specifications selected for its width, load rating, and sidewall profile. The vehicle includes a compact spare on gasoline trims and a tire mobility kit on hybrid models.

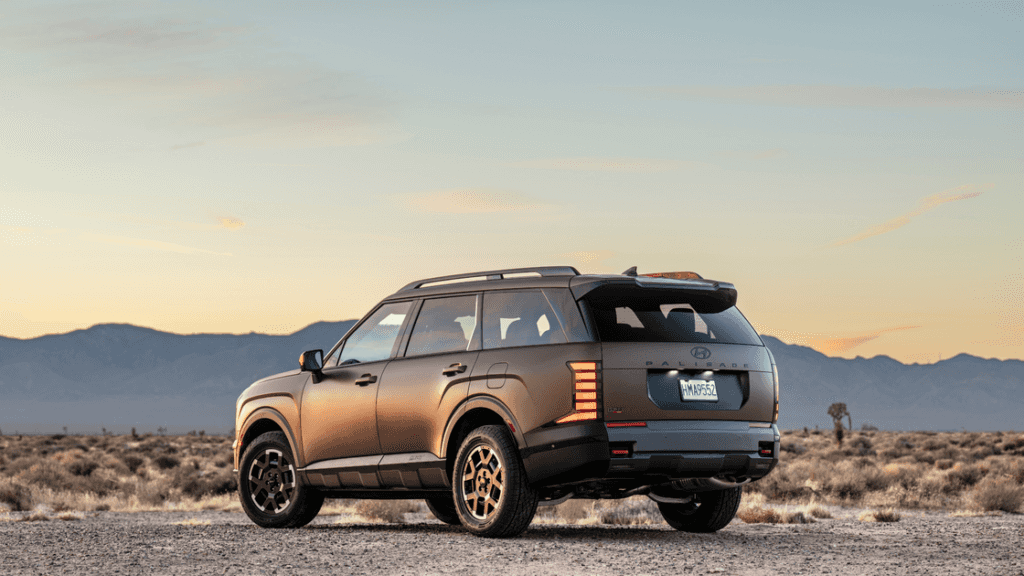

All trims include LED center positioning lights along with LED daytime running lights and projector-style LED headlights. LED rear combination lamps and a roof-mounted LED high-mount stop lamp contribute to consistent visibility. Automatic headlights and High Beam Assist are standard. Door handle welcome lighting is included on all trims.
Body-colored and black exterior mirror options include power operation along with heating and available auto dimming. Turn signal indicators and Blind Spot Collision Warning sensors are integrated into the housings. The grille design varies by trim and includes silver, gloss black, dark chrome, or hot-stamped finishes. Roof rails are available or standard depending on the configuration, with a load capacity of 220 pounds. Dual-pane sunroofs are included on upper trims, and a conventional sunroof is offered on mid-level models.
The wiper system uses flat-style front wipers with two-speed variable intermittent operation. Rain-sensing wipers are included on the Calligraphy trim. Acoustic windshield and side glass are included across the lineup, with full acoustic side glass on upper trims.
Tow hitch availability is offered as a port-installed option or factory-equipped option depending on trim. A trailer prep package is included across the lineup with wiring, coolers, and sway control functionality.
Interior Technology and Cabin Specifications

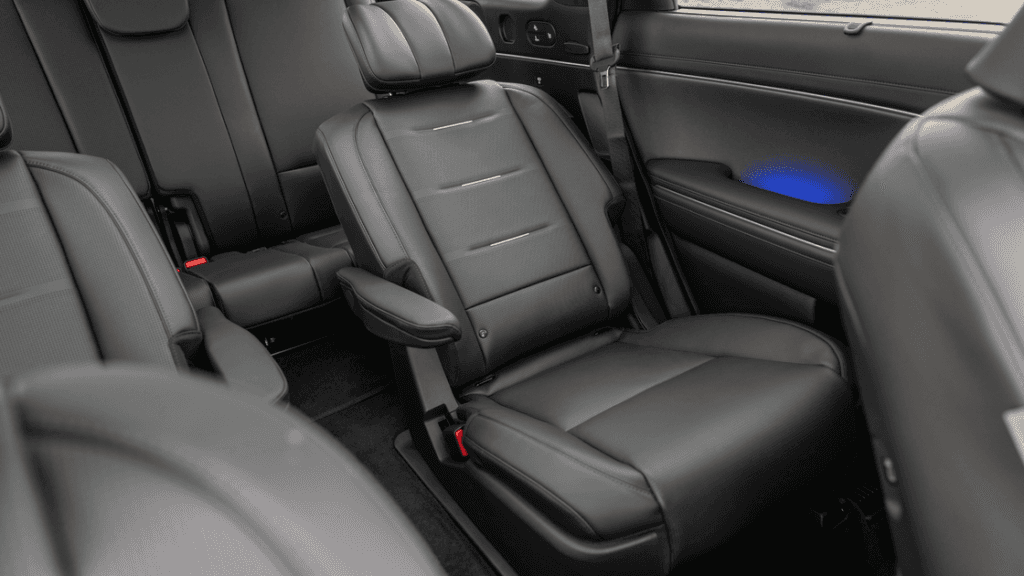

The 2026 Hyundai Palisade offers seating for seven or eight, depending on configuration. Available materials include cloth, H-Tex® leatherette, leather, and Nappa leather. Power adjustable seating includes 8-way positions for both front seats on most trims. 4-way lumbar support is included on select configurations. Heated front seats are available beginning at the SEL trim, and ventilated front seats are included on higher trim levels. Heated and ventilated second-row seating is available with captain’s chairs. The third row includes power folding, unfolding, reclining, and sliding functions on upper trims.
Cargo capacity measures 86.7 cubic feet behind the first row, 46.3 behind the second row, and 19.1 behind the third row. Underfloor storage compartments provide additional space for smaller cargo items.

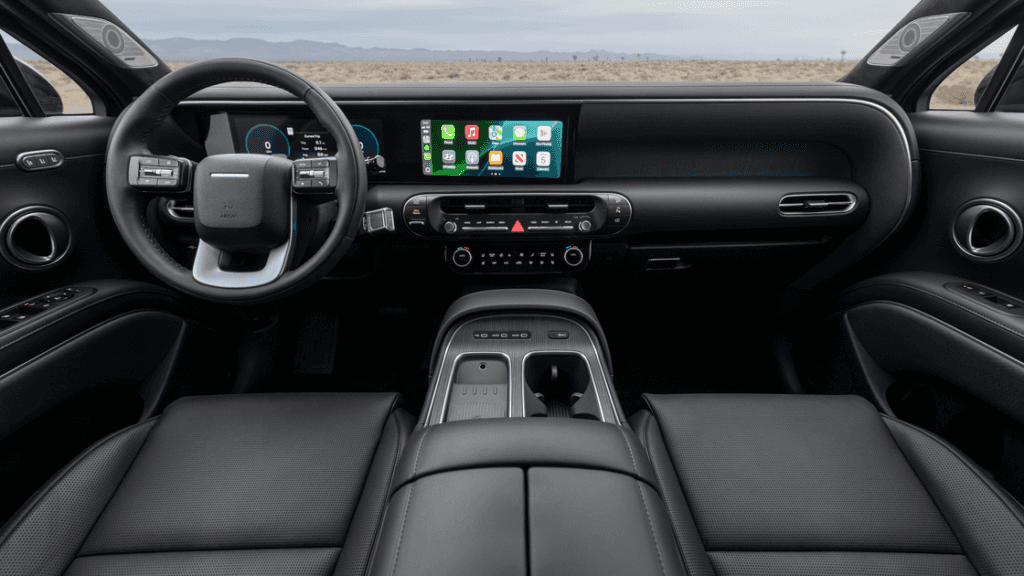

A 12.3-inch color touchscreen with integrated navigation is standard. Wireless Android Auto™ and Apple CarPlay® are included along with HD Radio™ and SiriusXM®. The available Bose® fourteen-speaker audio system includes advanced processing technology. A twelve-inch head-up display is offered on the highest trim level. A built-in dashcam is also available. Rear Seat Quiet Mode, Passenger Talk intercom, and multiple device connectivity are all included.
The instrument cluster uses a digital 12.3-inch display on most trims and a 4.2-inch color multi-information display on the base trim. Blind Spot View Monitor technology is integrated into higher trims. Remote Smart Parking Assist is available on the top trim.
Three-zone automatic climate control with auto defog is standard. Air vents are positioned for all rows. Heated steering wheels are included on most trims along with paddle shifters and haptic feedback functions.
Safety Systems and Structural Protections
The 2026 Hyundai Palisade includes advanced and passive safety systems that operate throughout the cabin and chassis. Airbag coverage includes front, front side, second-row side, full-length curtains with rollover sensors, and a front center airbag. A driver knee airbag is also included. Seatbelt pretensioners and load limiters span the first, second, and third row outboard seats. Child safety features include rear door locks and LATCH anchors for multiple rows.
Active safety systems include Forward Collision Avoidance Assist with varying levels of capability, Rear Cross Traffic Collision Avoidance Assist, Blind Spot Collision Warning, Lane Keeping Assist, Lane Following Assist, Driver Attention Warning, Forward Attention Warning. Safe Exit Assist, Parking Distance Warning, Parking Collision Avoidance Assist, Highway Driving Assist, Trailer Sway Control, and tire pressure monitoring with individual tire readouts.
Dimensions and Performance Specifications
The wheelbase measures 116.9 inches, and the overall length reaches up to 199.4 inches for most trims and 200.4 inches for the XRT PRO. Width is 78.0 inches, and height is 69.5 inches. Ground clearance measures 7.4 inches for most trims and 8.4 inches for the XRT PRO. Approach and departure angles reach 20.5 degrees and 22.4 degrees on the XRT PRO. The coefficient of drag is 0.31 for most trims and 0.35 for the XRT PRO.
Headroom measures up to 41.5 inches in the front row, 40.7 inches in the second row, and 37.8 inches in the third row. Legroom reaches 44.2 inches in the front row, up to 43.0 in the second row, and 32.1 in the third row. Shoulder room extends to 61.4 inches in the front row, and hip room measures 58.8 inches in the same area.
Fuel tank capacity is 19.0 gallons for the V6 and 18.2 gallons for the hybrid. Maximum trailer weight is 5,000 pounds for the gasoline model and 4,000 pounds for the hybrid when equipped with trailer brakes.
Schedule a Test Ride Today
A test drive provides a direct way to understand the mechanical behavior, seating design, and integrated systems of the 2026 Hyundai Palisade. Experiencing its powertrains and driving characteristics in motion helps demonstrate how the engine, transmission, and chassis components work together. Exploring the cabin allows you to interact with the display systems, connectivity features, and seat functions. The available safety technologies are also easier to understand through guided explanation from a knowledgeable team member. For an opportunity to examine the full capabilities of this SUV in a controlled and informative setting, you are invited to schedule a visit with ALM Hyundai Florence near Myrtle Beach, SC.
