2026 Hyundai Santa Cruz close to Columbia SC

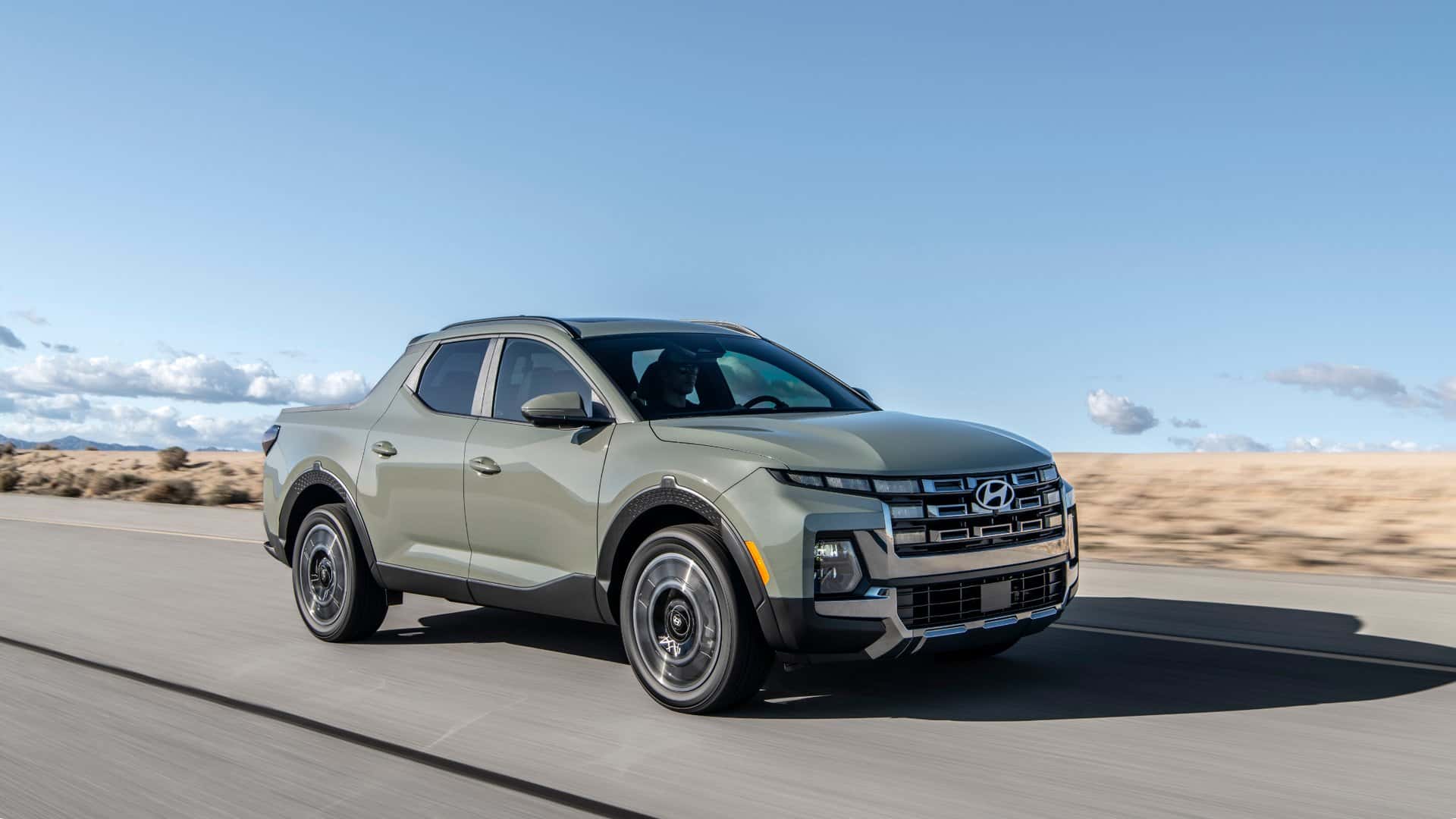

The 2026 Hyundai Santa Cruz is engineered as a compact pickup with a unibody construction that integrates passenger vehicle dynamics with functional cargo capability. Its design prioritizes mechanical efficiency, structural rigidity, and modular utility systems rather than full-size truck mass. The model lineup supports multiple drivetrain configurations and a broad range of standard and available systems intended to manage power delivery, ride control, occupant safety, and digital integration. Every major component is developed to operate cohesively within a lightweight yet reinforced architecture, supporting daily driving requirements as well as moderate hauling and towing demands. This overview presents a detailed examination of the technical specifications and systems that define the 2026 Hyundai Santa Cruz.
Smartstream® Engine Architecture and Output Specifications
The 2026 Hyundai Santa Cruz is offered with two Smartstream® inline four-cylinder gasoline engines, each displacing 2,497 cubic centimeters and utilizing dual overhead camshafts with a 16-valve configuration. The standard engine employs both gasoline direct injection and multi-port injection, paired with continuously variable valve timing. This configuration produces 191 horsepower at 6,100 revolutions per minute and 181 pound-feet of torque at 4,000 revolutions per minute. The compression ratio is set at 13.0, supporting efficient combustion under regular unleaded fuel requirements while maintaining ULEV emissions compliance.
An available turbocharged variant of the same displacement increases output to 281 horsepower at 5,800 revolutions per minute and 311 pound-feet of torque across a wide operating range from 1,700 to 4,000 revolutions per minute. This engine uses a turbocharged intake system and a reduced compression ratio of 10.5 to manage higher cylinder pressures. Both engines feature aluminum block and cylinder head construction to reduce overall mass while preserving thermal stability. A hood insulator is included to manage engine noise and vibration transfer into the cabin.
Transmission Systems and Drive Configuration
Power from both engine options is routed through an 8-speed automatic transmission using a torque converter. Gear ratios are calibrated independently for the naturally aspirated and turbocharged engines to align with their respective torque curves and intended driving characteristics. The transmission supports smooth acceleration under load and consistent gear engagement during towing or uphill operation.
Front-wheel drive is standard on select configurations equipped with the naturally aspirated engine. The Hyundai HTRAC all-wheel-drive system is available or standard on higher trims and all turbocharged configurations. This system actively distributes torque between the front and rear axles based on traction demands and driver input. A console-mounted drive mode selector allows the driver to adjust throttle response and drivetrain behavior. Specific trims also include terrain mode select functionality to optimize traction on loose or uneven surfaces.
Steering, Suspension, and Ride Control Systems
The 2026 Hyundai Santa Cruz uses a motor-driven power steering system mounted to a rack-and-pinion steering assembly. The steering ratio is 14.2, delivering predictable response and controlled feedback across urban and highway driving conditions. The system achieves a lock-to-lock steering range of 2.62 turns, supporting maneuverability in confined spaces. The curb-to-curb turning diameter measures 39.6 feet.
Front suspension geometry consists of MacPherson® struts with coil springs and gas-pressurized shock absorbers. This configuration balances ride comfort with lateral stability during cornering. The rear suspension employs a multi-link layout with gas-pressurized self-leveling shock absorbers. This design supports consistent ride height and stability when cargo is added to the bed or when towing. The suspension system works in conjunction with the unibody structure to manage road inputs and maintain directional stability.
Brake Systems and Vehicle Control Technologies
All 2026 Hyundai Santa Cruz models are equipped with four-wheel disc brakes. The front brakes use ventilated rotors measuring 12.8 inches in diameter and 1.2 inches in thickness, while the rear brakes use solid rotors of the same diameter with reduced thickness. The braking system includes anti-lock braking, electronic brake-force distribution, brake assist, and electronic stability control.
Additional control systems include traction control, vehicle stability management, downhill brake control, hill start assist, and an electronic parking brake with automatic vehicle hold functionality. These systems operate collectively to maintain control during acceleration, deceleration, and low-speed maneuvers on varying gradients.
Structural Design and Materials Engineering
The 2026 Hyundai Santa Cruz is constructed on a unibody monocoque platform utilizing advanced high-strength steel and high-tensile steel throughout the primary structure. This material strategy improves torsional rigidity while minimizing weight. Reinforced body sections contribute to impact energy management and long-term durability. The unibody design also supports improved ride quality and reduced cabin noise compared to traditional body-on-frame construction.
Exterior Systems and Utility-Focused Design
Exterior lighting systems are standardized across the lineup and include bi-LED projector headlights for both high and low beams, LED daytime running lights, LED taillights, automatic headlight activation, and high beam assist. A roof-mounted center high-mount stop lamp and roof-mounted LED cargo lighting enhance rear visibility and bed illumination.
Wheel configurations include 18-inch and available 20-inch alloy wheels paired with all-season tires. Trailer pre-wiring is included across all trims, with four-pin connectors for naturally aspirated models and four- and seven-pin connectors for turbocharged configurations. Roof side rails are available to support additional cargo transport.
Integrated Open Bed System and Cargo Management
The open bed of the 2026 Hyundai Santa Cruz is constructed from sheet-molded composite material, providing resistance to corrosion and impact damage. Bed volume measures 27.0 cubic feet according to SAE standards. Standard features include a lockable under-bed storage compartment, sidewall storage compartments, heavy-duty cargo D-rings, and a multi-functional tailgate with assisted opening and closing.
Higher trims add an integrated tonneau cover with dual T-slot accessory tracks capable of supporting distributed loads. A dual C-channel adjustable utility rail and cleat system supports configurable cargo restraint. Additional features include LED bed lighting, a 115-volt power outlet located in the sidewall storage area, and integrated rear bumper side steps for improved access.
Interior Layout, Seating Systems, and Climate Control
The cabin accommodates five occupants across all trims. Seating surfaces range from stain- and odor-resistant cloth to H-Tex® leatherette and leather-trimmed upholstery. Front seating configurations include 6-way manual adjustment or 8-way power adjustment depending on trim, with available power lumbar support. Heated front seats are available across multiple trims, while ventilated front seats are exclusive to higher configurations. Rear seating includes a 60-40 split tip-up lower cushion design to expand interior cargo flexibility.
Climate control systems range from manual air conditioning to dual automatic temperature control with capacitive-touch interfaces and automatic defogging functionality. Rear HVAC ducts and center console-mounted rear vents distribute airflow evenly throughout the cabin. Acoustic laminated windshield glass is used to reduce wind and road noise intrusion.
Digital Displays, Connectivity, and Infotainment Systems
Standard infotainment systems include a 12.3-inch touchscreen display with wireless Apple CarPlay® and Android Auto™ compatibility. Audio output is managed through a 6-speaker system or an available premium audio system on higher trims. Navigation-equipped trims feature a 12.3-inch audio-video-navigation touchscreen with onboard navigation and dynamic voice recognition.

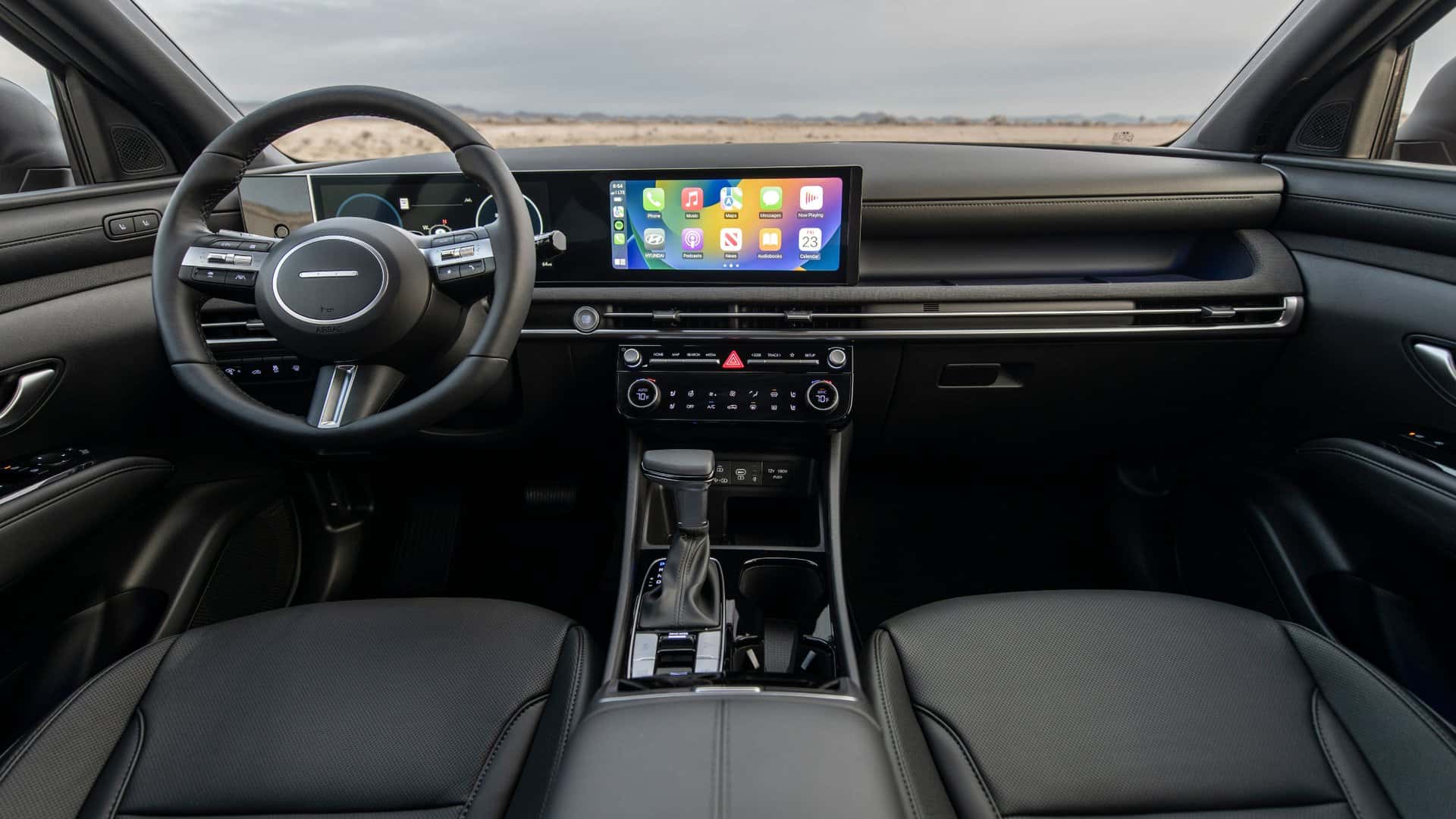

Instrumentation options include a 4.2-inch multi-information display or a fully digital 12.3-inch instrument cluster that presents speed, engine data, safety alerts, and driver assistance system status. Over-the-air update capability supports multimedia and control unit software updates. USB Type-C ports are provided for front and rear passengers, and wireless device charging is available on select trims.
Safety Architecture and Driver Assistance Systems
Passive safety systems include advanced front airbags, side-impact airbags for front occupants, side curtain airbags for front and rear passengers with rollover sensors, and rear side airbags. Three-point seatbelts with pretensioners and load limiters are installed for front and rear outboard seating positions. Child safety systems include LATCH anchors, rear door child locks, and a power window lockout feature.
Active safety technologies include forward collision-avoidance assist with pedestrian detection, with expanded cyclist and junction turning detection on higher trims. Blind-spot collision warning, rear cross-traffic collision-avoidance assist, lane keeping assist, lane following assist, driver attention warning, leading vehicle departure alert, and safe exit warning are included across the lineup. Higher trims add surround view monitoring, blind-spot view monitoring, highway driving assist, navigation-based smart cruise control with curve control, intelligent speed limit assist, and forward attention warning.
Dimensions, Capacities, and Performance Metrics
The 2026 Hyundai Santa Cruz measures 195.7 inches in overall length with a wheelbase of 118.3 inches. Overall width is 75.0 inches, and overall height measures approximately 66.7 inches depending on configuration. Ground clearance is rated at 8.6 inches. Interior passenger volume totals 101.8 cubic feet. Fuel tank capacity is 17.7 gallons.
Maximum trailer towing capacity is rated at 3,500 pounds when equipped with trailer brakes. Maximum trailer weight without trailer brakes is rated at 1,653 pounds. Fuel economy ratings vary by drivetrain and engine configuration, with front-wheel-drive naturally aspirated models achieving up to 30 miles per gallon on the highway.
Disclaimer: 026 SANTA CRUZ SE, SEL and SEL Activity FWD: 22 City/30 Hwy/25 Combined MPG. 2026 SANTA CRUZ SE, SEL and SEL Activity AWD: 21 City/29 Hwy/24 Combined MPG. 2026 SANTA CRUZ XRT and Limited AWD: 18 City/25 Hwy/20 Combined MPG. All figures are EPA estimates and for comparison purposes only. Actual mileage may vary with options, driving conditions, driving habits and vehicle’s condition.
Schedule a Test Ride at ALM Hyundai Florence
For drivers seeking a compact pickup engineered around balanced power delivery, integrated cargo systems, and a broad range of driver assistance technologies, the 2026 Hyundai Santa Cruz presents a comprehensive technical package. Our team at ALM Hyundai Florence, close to Columbia SC offers the opportunity to evaluate these systems through a guided test drive focused on performance, handling, and technology operation. Experiencing the Smartstream® powertrains, all-wheel-drive functionality, and digital interfaces in controlled driving conditions provides a clear understanding of the vehicle’s engineering approach. A scheduled visit allows detailed review of trim-specific specifications and drivetrain configurations. Contact our dealership to arrange a test drive and explore how the 2026 Hyundai Santa Cruz systems function as a unified platform.
