2026 Hyundai Santa Cruz close to Myrtle Beach

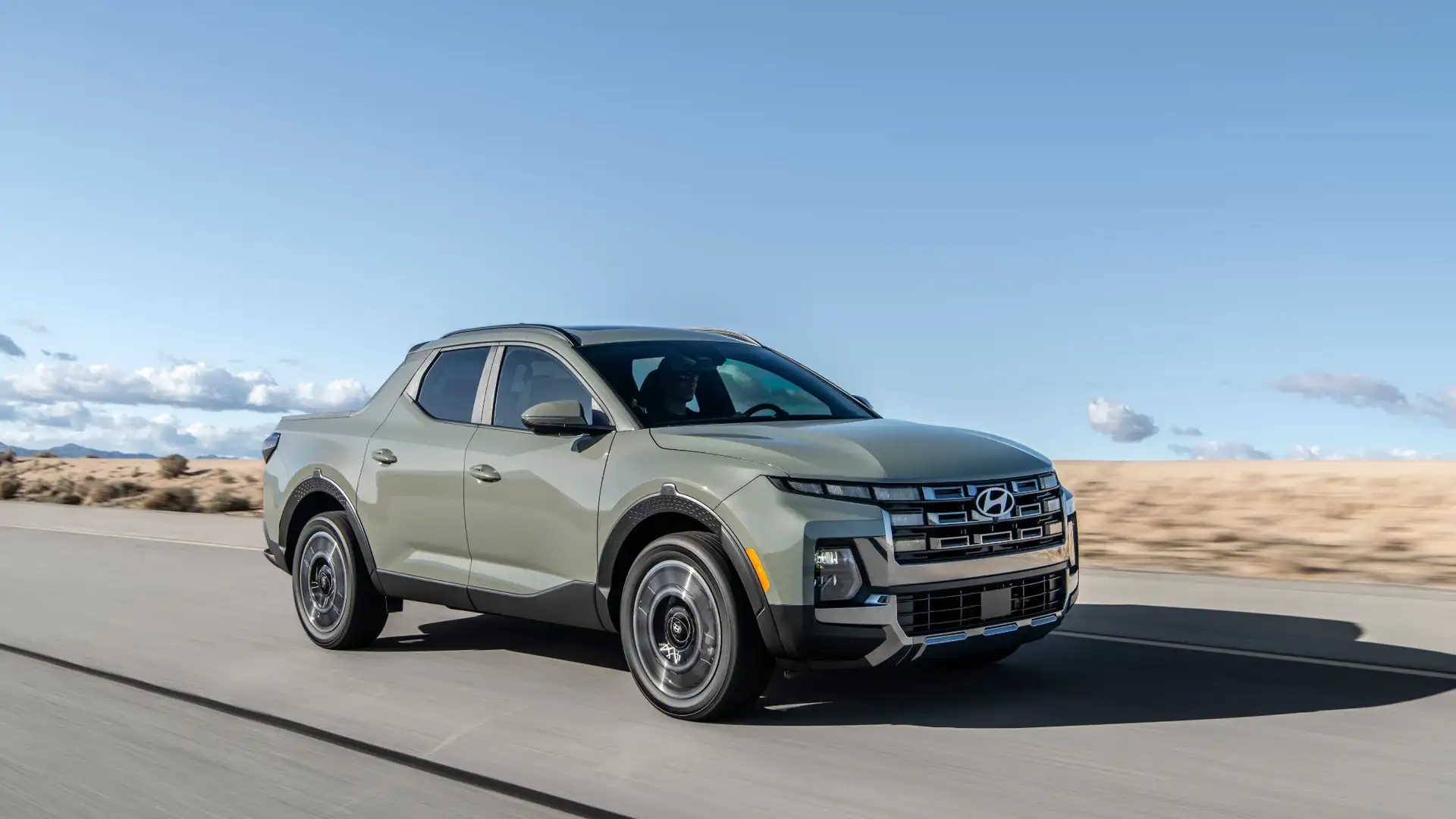

The 2026 Hyundai Santa Cruz combines crossover-style handling with pickup utility through a unibody structure, advanced driver assistance systems, multiple powertrain options, and an integrated cargo bed design. Hyundai engineered the 2026 Hyundai Santa Cruz with a focus on balanced performance, passenger comfort, and cargo versatility while maintaining compact exterior dimensions. The model lineup includes SE, SEL, SEL Activity, XRT, and Limited trims, each equipped with specific technology, convenience, and drivetrain configurations.
Smartstream® Engine Configurations and Performance Output
The 2026 Hyundai Santa Cruz offers two Smartstream® 2.5-liter four-cylinder engines. The standard naturally aspirated 2.5-liter GDI and MPI DOHC 16-valve inline four-cylinder engine produces 191 horsepower at 6,100 rpm and 181 lb-ft of torque at 4,000 rpm. This engine uses Continuously Variable Valve Timing and features an aluminum block and cylinder head construction. Hyundai pairs this engine with a variable intake system and recommends regular unleaded fuel. The engine displacement measures 2,497 cc with bore and stroke dimensions of 85.5 mm x 101.5 mm. Compression ratio for the standard engine measures 13.0:1.
The available turbocharged 2.5-liter GDI and MPI DOHC 16-valve inline four-cylinder engine increases output to 281 horsepower at 5,800 rpm and 311 lb-ft of torque between 1,700 and 4,000 rpm. This turbocharged configuration also uses Continuously Variable Valve Timing and maintains the same 2,497 cc displacement. The compression ratio for the turbocharged engine measures 10.5:1. Hyundai equips this engine with a turbocharged intake system designed to improve low- and mid-range torque delivery.
Both engines include full engine covers, hood insulators, distributorless ignition systems, 12-volt 1.2 kW starters, and 13.5-volt 150-amp alternator management systems. Each configuration uses a single-tip exhaust system and meets ULEV emissions standards.
Transmission Engineering and Drivetrain Capability
Hyundai equips every 2026 Hyundai Santa Cruz with an eight-speed automatic transmission using a torque converter design. Front-wheel drive comes standard on select 2.5-liter trims, while HTRAC all-wheel drive remains available or standard depending on trim level and engine configuration.
The HTRAC active on-demand all-wheel-drive system continuously adjusts torque distribution to improve traction and vehicle stability. Hyundai integrates a center-console-mounted Drive Mode system across the lineup. XRT trims additionally receive Terrain Mode Select to improve traction management on loose or uneven surfaces.
The 8-speed automatic transmission uses specific gear ratios to support acceleration, towing, and highway fuel efficiency. Final drive ratios differ between naturally aspirated and turbocharged models to match engine output characteristics.
Suspension Geometry and Steering Precision
The 2026 Hyundai Santa Cruz uses a front MacPherson® strut suspension system with coil springs and gas-pressurized shock absorbers. The rear suspension uses a multi-link design with self-leveling gas-pressurized shock absorbers. This suspension layout supports stable ride quality while maintaining load-handling capability for passengers and cargo.
Hyundai builds the 2026 Hyundai Santa Cruz using a unibody chassis with advanced high-strength steel and high-tensile steel materials. This construction improves structural rigidity while maintaining controlled weight distribution.
The steering system uses Motor Driven Power Steering with a rack-and-pinion configuration and a column-mounted assist motor. Hyundai specifies a 14.2 steering ratio with 2.62 turns lock-to-lock. The turning diameter measures 39.6 feet curb to curb, supporting maneuverability in parking areas and urban driving environments.
Brake System Design and Stability Technologies
The braking system includes ventilated front disc brakes measuring 12.8 inches by 1.2 inches and solid rear disc brakes measuring 12.8 inches by 0.5 inches. Hyundai equips every trim with Anti-lock Braking System functionality using four channels and four sensors.
Electronic Brake-force Distribution works alongside Brake Assist, Vehicle Stability Management, and Traction Control System functions to improve stability during emergency braking or in slippery road conditions. Downhill Brake Control and Hill Start Assist Control are also standard across all trims.
The 2026 Hyundai Santa Cruz includes an electronic parking brake with Automatic Vehicle Hold functionality. Tire Pressure Monitoring System capability includes individual tire pressure indicators.
Exterior Dimensions and Structural Design
The 2026 Hyundai Santa Cruz rides on a 118.3-inch wheelbase and measures 195.7 inches in overall length, with XRT trims extending slightly to 195.9 inches. Overall width measures 75.0 inches. Height with roof rails measures 66.7 inches, increasing slightly on XRT trims.
Ground clearance measures 8.6 inches. XRT trims increase approach angle measurements to 19.9 degrees, while standard trims provide a 16.9-degree approach angle. The departure angle measures 23.2 degrees, and the breakover angle measures 18.6 degrees.
Hyundai integrates advanced exterior lighting systems across the lineup. Standard equipment includes bi-LED projector headlights, LED daytime running lights, LED taillights, automatic headlights, High Beam Assist, and roof-mounted LED cargo lighting. SEL Activity, XRT, and Limited trims add dual LED bed lighting.
Wheel configurations vary by trim level. The SE, SEL, and SEL Activity trims receive 18-inch alloy wheels paired with 245/60R18 tires. XRT and Limited trims use 20-inch alloy wheels with 245/50R20 tires.
Integrated Cargo Bed Utility Features
The 2026 Hyundai Santa Cruz incorporates a molded composite cargo bed with multiple integrated storage and utility systems. Bed length measures 48.4 inches at the upper section and 52.1 inches at the lower section. The tailgate-open bed length extends to 74.8 inches.
Bed width measures 53.9 inches at maximum width and 42.7 inches between wheel housings. Bed depth measures 19.2 inches. SAE cargo bed volume totals 27.0 cubic feet.
Every trim includes lockable under-bed storage, sidewall storage compartments, heavy-duty cargo D-rings, integrated bumper side steps, and a multifunction tailgate with assisted opening and closing functionality.
SEL Activity, XRT, and Limited trims add an integrated tonneau cover with dual T-slot accessory tracks, a dual C-channel adjustable utility rail and cleat system, and a 115-volt power outlet positioned within the sidewall storage compartment.
The built-in tonneau cover track system supports up to 440 pounds when weight distribution uses a minimum of four attachment points. Roof side rails support a 220-pound static and dynamic load capacity.
Interior Measurements and Seating Design
The 2026 Hyundai Santa Cruz provides seating for five occupants. Total passenger interior volume measures 101.8 cubic feet. Front headroom without a sunroof measures 40.2 inches, while rear headroom measures 39.6 inches. Front legroom measures 41.4 inches, and rear legroom measures 36.5 inches.
SE trims include stain-resistant and odor-resistant cloth seating surfaces. The SEL, SEL Activity, and XRT trims use H-Tex® leatherette seating materials. Limited trims include leather-trimmed seating surfaces.
Driver seating configurations vary by trim. SE trims receive a six-way adjustable driver’s seat. The SEL and higher trims include an eight-way power-adjustable driver seat with power lumbar support. Limited trims add a six-way power passenger seat.

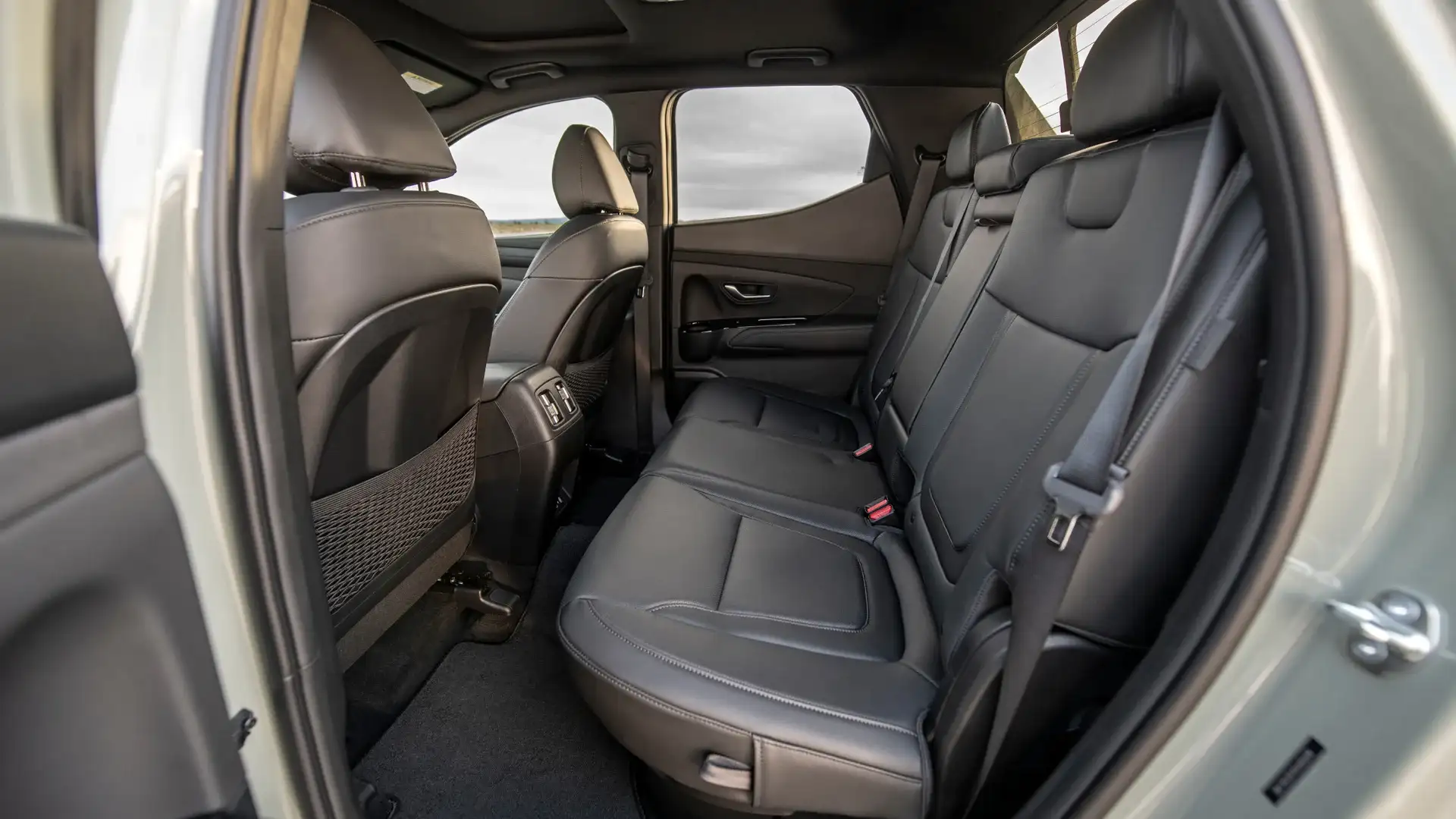

Heated front seats are standard beginning with SEL trims. Limited trims additionally include ventilated front seats and a heated steering wheel. Rear seating includes 60/40 split, tip-up lower seat cushions across all trims to increase cargo flexibility inside the cabin.
Digital Displays and Infotainment Integration

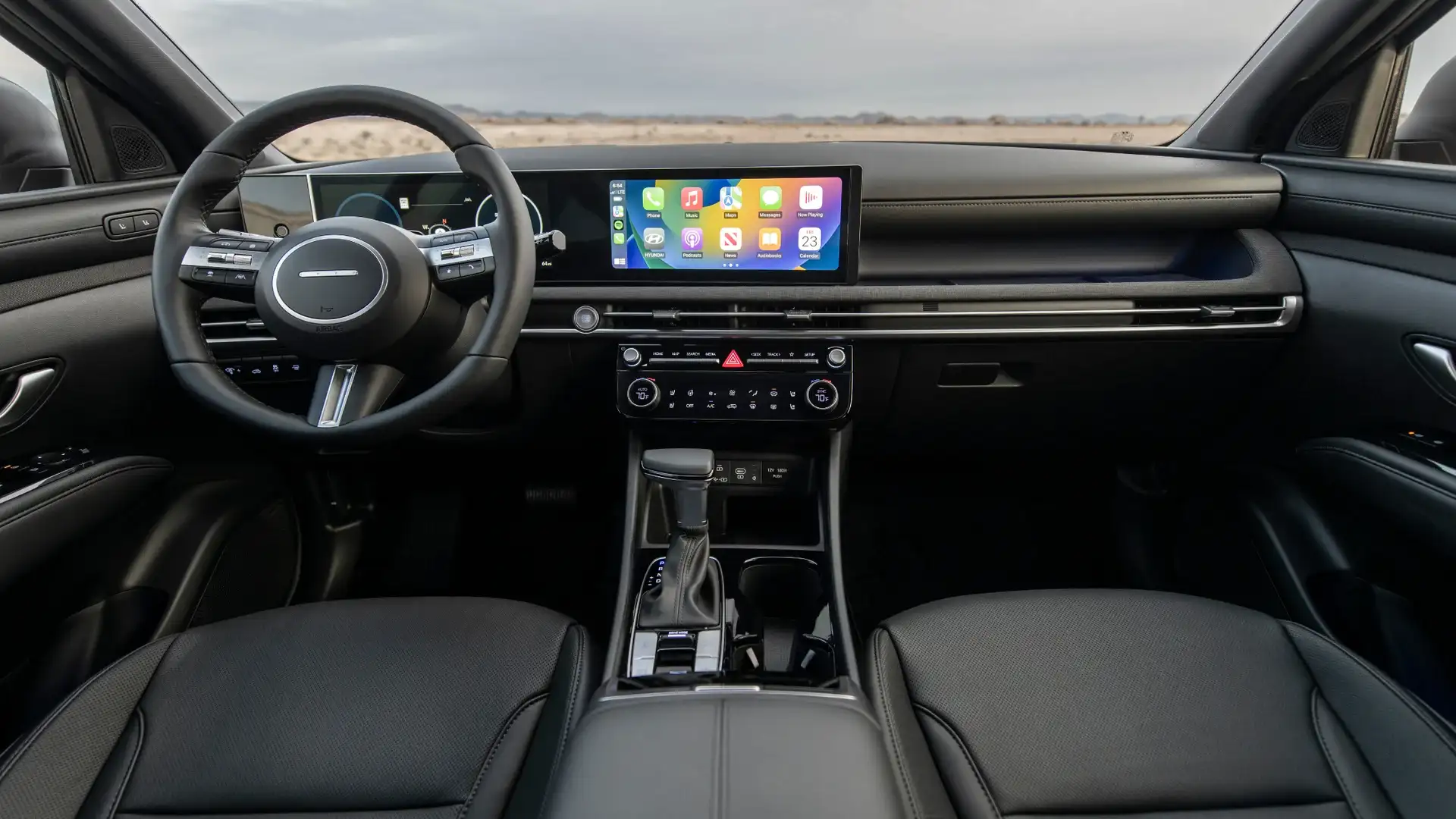

SE, SEL, and SEL Activity trims include a 12.3-inch touchscreen display with six speakers and ccNc Lite interface of Hyundai. XRT and Limited trims upgrade to a 12.3-inch Audio-Video-Navigation touchscreen with onboard navigation capability.
Wireless Apple CarPlay® and Android Auto™ integration remain standard across every trim level. Hyundai also equips every 2026 Hyundai Santa Cruz with SiriusXM® capability, HD Radio™, Bluelink®+ connected services, and over-the-air software update capability.
Dynamic Voice Recognition becomes available on XRT and Limited trims. The Limited trim additionally includes a Bose® premium audio system.
Instrumentation differs by trim level. SE and SEL trims include a 4.2-inch multi-information display. SEL Activity, XRT, and Limited trims upgrade to a 12.3-inch fully digital instrument cluster.
The cabin also includes front and rear USB Type-C charging ports, wireless 15W smartphone charging on higher trims, illuminated power window switches, and ambient interior lighting on Limited trims.
Driver Assistance and Safety Technologies
The 2026 Hyundai Santa Cruz includes multiple active and passive safety systems throughout the lineup. Standard restraint systems include advanced front airbags, side-impact airbags, side curtain airbags with rollover sensors, and rear side airbags with rollover sensors.
Forward Collision-Avoidance Assist with Pedestrian Detection comes standard on SE, SEL, and SEL Activity trims. XRT and Limited trims receive an upgraded sensor-fusion version capable of pedestrian, cyclist, and junction-turning detection.
Blind-Spot Collision Warning, Rear Cross-Traffic Collision-Avoidance Assist, Lane Keeping Assist, Lane Following Assist, Driver Attention Warning, Leading Vehicle Departure Alert, Safe Exit Warning, and Rear Occupant Alert remain standard across all trims.
XRT and Limited trims add Highway Driving Assist 1, Navigation-based Smart Cruise Control with Curve Control, Intelligent Speed Limit Assist, Blind-Spot View Monitor, Surround View Monitor, and Forward Attention Warning.
Steering wheel haptic feedback systems support Lane Keeping Assist and Blind-Spot Collision Warning notifications. Hyundai also integrates an anti-theft system with remote keyless entry and an immobilizer system on every trim.
Fuel Economy, Towing, and Operational Capacity
The naturally aspirated 2.5-liter front-wheel-drive 2026 Hyundai Santa Cruz achieves EPA-estimated fuel economy ratings of 22 mpg city, 30 mpg highway, and 25 mpg combined. All-wheel-drive versions equipped with the naturally aspirated engine achieve 21 mpg city, 29 mpg highway, and 24 mpg combined.
Turbocharged 2.5T all-wheel-drive models achieve EPA estimates of 18 mpg city, 25 mpg highway, and 20 mpg combined.
Fuel tank capacity measures 17.7 gallons. Maximum trailer weight with trailer brakes reaches 3,500 pounds. Maximum trailer weight without trailer brakes measures 1,653 pounds. Hyundai includes trailer pre-wiring across the lineup, using four-pin connectors on standard 2.5-liter models and four-pin/seven-pin connectors on turbocharged models.
Disclaimer: 2026 SANTA CRUZ SE, SEL and SEL Activity FWD: 22 City/30 Hwy/25 Combined MPG. 2026 SANTA CRUZ SE, SEL and SEL Activity AWD: 21 City/29 Hwy/24 Combined MPG. 2026 SANTA CRUZ XRT and Limited AWD: 18 City/25 Hwy/20 Combined MPG. All figures are EPA estimates and for comparison purposes only. Actual mileage may vary with options, driving conditions, driving habits and vehicle’s condition.
