2026 Hyundai Santa Fe close to Columbia SC
The 2026 Hyundai Santa Fe is engineered as a midsize sport utility vehicle with a strong emphasis on mechanical efficiency, structural integrity, and integrated vehicle systems. Designed around a unibody platform constructed primarily from high-strength steel, this model balances durability with weight optimization. The 2026 Hyundai Santa Fe lineup introduces refined powertrain configurations, expanded drivetrain control logic, and a broad range of standardized and available technology systems that support daily driving, long-distance travel, and light-duty towing. Each trim level adheres to a consistent engineering foundation while allowing specific mechanical and functional distinctions that address varied usage requirements.
Turbocharged Gasoline and Hybrid Powertrain Architecture
The 2026 Hyundai Santa Fe is offered with two distinct engine systems, each developed to meet different performance and efficiency parameters. The gasoline-powered configuration uses a Smartstream® 2.5-liter turbocharged inline four-cylinder engine with dual overhead camshafts and a 16-valve layout. This engine features gasoline direct injection and multi-point injection, enabling precise fuel atomization and combustion control. Maximum output is rated at 277 horsepower at 5,800 rpm, with peak torque measured at 311 pound-feet at 4,000 rpm. The aluminum engine block and cylinder head contribute to reduced mass while maintaining thermal efficiency.
The hybrid configuration pairs a Smartstream® 1.6-liter turbocharged inline four-cylinder engine with a permanent magnet synchronous electric motor. Combined system output reaches 231 horsepower, with total torque rated at 271 pound-feet across a broad operating range. The electric motor contributes approximately 60 horsepower and delivers immediate torque at low engine speeds. Electrical energy is supplied by a 270-volt lithium-ion battery with a system capacity of 1.49 kilowatt-hours. This hybrid system is designed to optimize fuel usage during stop-and-go operation while maintaining steady output during highway travel.
Transmission Systems and Drive Configuration Logic
Transmission selection is matched to each powertrain to support operational efficiency. Gasoline models are equipped with an 8-speed automatic transmission that incorporates Shift-By-Wire control and SHIFTRONIC® manual shift paddles. Gear ratios are structured to support low-speed torque multiplication while maintaining reduced engine speed during cruising. The hybrid configuration uses a 6-speed automatic transmission engineered to manage power transitions between the internal combustion engine and electric motor without mechanical interruption.
Front-wheel drive is standard across the lineup, with an available HTRAC all-wheel-drive system that actively adjusts torque distribution based on traction conditions and selected drive modes. Torque split ranges vary by mode, supporting balanced traction on dry pavement and increased grip on low-friction surfaces. Drive mode selection is controlled through a center-console interface and includes Comfort, Eco, Sport, Smart, Snow, and specialized Sand and Mud modes on XRT trims. An AWD Lock function maintains a fixed torque distribution when engaged.
Suspension Geometry, Steering Calibration, and Braking Systems
The 2026 Hyundai Santa Fe utilizes a fully independent suspension system configured for stability and ride control. The front suspension employs MacPherson® struts with coil springs and a stabilizer bar. The rear suspension uses a multi-link independent layout with separated springs and shock absorbers. Gas-pressurized dampers with advanced valving are standard across all trims, allowing consistent performance over varying road surfaces.
Steering is managed by a motor-driven power steering system with a rack-and-pinion design mounted on the steering column. The system features a 13.7 overall steering ratio and a turning diameter of 37.9 feet curb to curb. This configuration supports controlled maneuverability during low-speed operation and stable directional response at higher speeds.
Braking components include ventilated front disc brakes and solid rear disc brakes, each measuring 12.8 inches in diameter. Electronic brake-force distribution, brake assist, hill-start assist control, downhill brake control, and trailer sway control are standard. Parking brake operation is handled electronically and includes an automatic vehicle hold function.
Structural Design, Exterior Components, and Functional Styling
The exterior structure of the 2026 Hyundai Santa Fe is designed to support aerodynamic efficiency while maintaining structural rigidity. Overall length measures 190.2 inches, with a wheelbase of 110.8 inches. Ground clearance is rated at 7.0 inches for standard models and increases to 8.3 inches on XRT trims. The coefficient of drag is measured at 0.294.
Exterior lighting systems include LED projector headlights with integrated LED accents, LED daytime running lights, LED taillights, and automatic headlight functionality with high-beam assist. Acoustic laminated glass is used on the windshield and front side windows to reduce exterior noise intrusion. Privacy glass is applied to rear and quarter windows.
Wheel sizes range from 18 inches to 21 inches depending on trim level. The XRT trim features exclusive 18-inch black alloy wheels paired with all-terrain tires. Roof rails are standard and support a load capacity of up to 220 pounds. Additional exterior equipment includes a hands-free smart liftgate with adjustable height settings, a roof-mounted shark-fin antenna, an integrated rear spoiler, and factory-installed trailer pre-wiring.
Interior Seating Configurations and Material Specifications
Interior layout is designed to accommodate either six or seven occupants depending on trim level and seating configuration. Seat materials vary across the lineup and include stain-resistant cloth, H-Tex® leatherette, leather-trimmed seating, and Nappa leather on upper trims. Front seating options range from manually adjustable seats to power-adjustable units with lumbar support, heating, ventilation, and integrated memory systems.

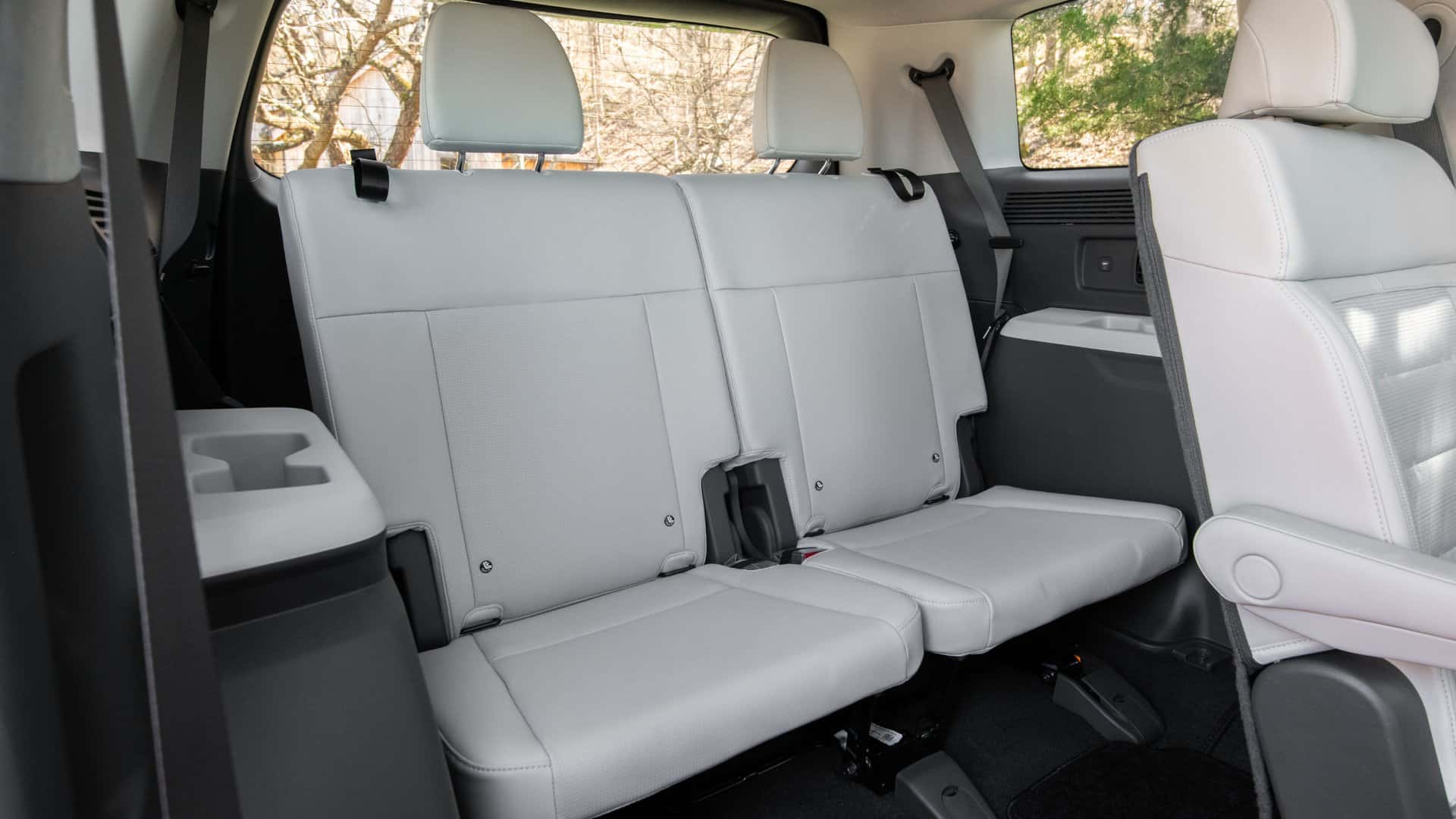

Second-row seating is available in a 60-40 split bench configuration or captain’s chairs, depending on trim. Third-row seating uses a 50-50 folding design with integrated lighting. Cargo volume measures 79.6 cubic feet behind the front seats, 40.5 cubic feet behind the second row, and 14.6 cubic feet behind the third row. Underfloor storage and remote-release second-row folding mechanisms support cargo management.
Climate Control and Cabin Utility Systems
Climate management is handled by a standard air conditioning system with available dual automatic temperature control and automatic defogging functionality. Air vents are provided for all seating rows, ensuring consistent airflow distribution. The cabin includes a standard air filtration system and rear window defroster with timer.
Interior utility features include a bi-directional center console armrest, integrated door armrests, multiple storage compartments, bottle holders across all rows, and dual cupholders in the front and rear seating areas. Power window functionality varies by trim and includes auto-up and auto-down operation.
Infotainment Displays and Vehicle Interface Technology

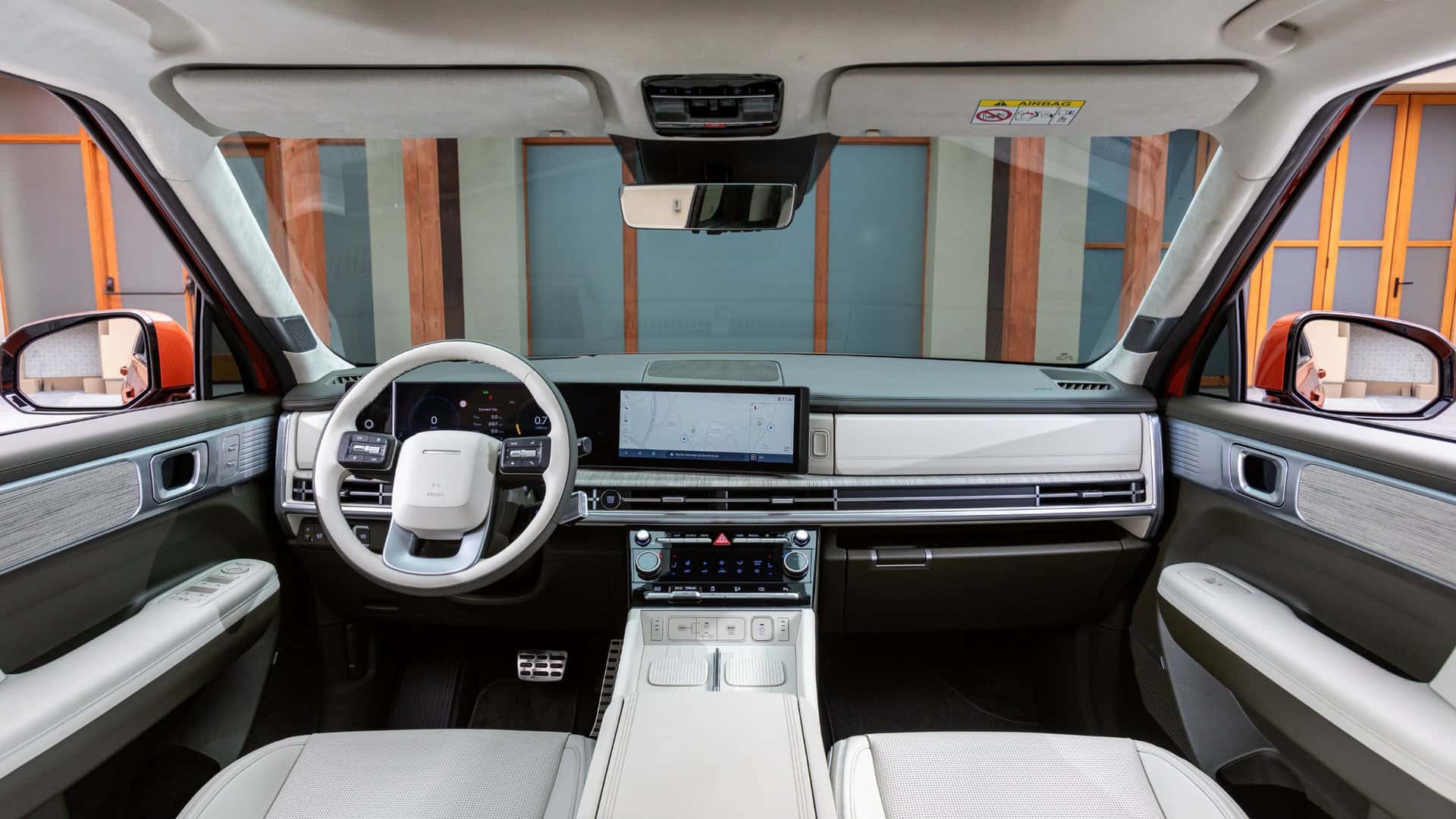

The 2026 Hyundai Santa Fe integrates a 12.3-inch display audio system or an available 12.3-inch wide touchscreen with onboard navigation, depending on trim level. Navigation-equipped systems include traffic flow data and Wi-Fi hotspot capability. Wireless Apple CarPlay® and Android Auto™ compatibility are standard. Audio output is managed by a standard sound system or an available Bose® premium system with 12 speakers.
Additional interface technologies include wireless device charging, multiple USB charging ports across all rows, head-up display on select trims, surround-view monitor, rear-seat quiet mode, and Hyundai Digital Key 2 Premium functionality using NFC, BLE, and UWB protocols.
Driver Assistance and Integrated Safety Systems
The 2026 Hyundai Santa Fe includes a comprehensive array of active and passive safety systems. Standard restraint systems include multiple airbags covering all seating rows, three-point seatbelts, pretensioners, load limiters, and LATCH anchors. Structural safety elements include reinforced crumple zones and integrated anti-theft systems with immobilizer functionality.
Active driver-assistance systems include forward collision-avoidance assist with pedestrian, cyclist, and junction turning detection; lane keeping assist; lane following assist; driver attention warning; blind-spot collision warning; rear cross-traffic collision-avoidance assist; safe exit assist; and rear occupant alert systems. Higher trims add a blind-spot view monitor, parking collision-avoidance assist, remote smart parking assist, and Highway Driving Assist 2.
Towing Capacity, Efficiency Ratings, and Operational Metrics
Fuel tank capacity is rated at 17.7 gallons for both gasoline and hybrid models. Hybrid fuel economy ratings reach up to 37 miles per gallon combined in front-wheel-drive configurations. Gasoline models deliver balanced efficiency across city and highway driving cycles.
Maximum towing capacity is rated at 3,500 pounds for standard gasoline models when equipped with trailer brakes. XRT trims increase towing capacity to 4,500 pounds. Hybrid models support towing up to 2,000 pounds. Trailer sway control and pre-wiring are standard across all trims.
Disclaimer: 2026 SANTA FE SE / SEL / Limited / Calligraphy FWD: 20 City/ 29 Highway/ 24 Combined MPG. 2026 SANTA FE SE / SEL / Limited / Calligraphy AWD: 20 City/ 28 Highway/ 23 Combined MPG. 2026 SANTA FE XRT AWD: 19 City/ 25 Highway/ 21 Combined MPG. All figures are EPA estimates and for comparison purposes only. Actual mileage may vary with options, driving conditions, driving habits and vehicle’s condition.
Visit ALM Hyundai Florence for a Test Ride
To evaluate the mechanical systems, drivetrain performance, and integrated technology of the 2026 Hyundai Santa Fe, scheduling an in-person test drive provides direct exposure to its engineered capabilities. Acceleration response, ride quality, cabin ergonomics, and system interfaces can be assessed during varied driving conditions. This vehicle is available for review and demonstration at ALM Hyundai Florence close to Columbia, SC, where full specifications and trim distinctions can be examined. A scheduled drive allows proper evaluation of engine output, safety system operation, and interior functionality. Appointments are recommended to ensure adequate time for vehicle inspection and operational assessment.
