2026 Hyundai Santa Fe near Conway, SC
The 2026 Hyundai Santa Fe introduces a range of mechanical and structural updates across all trims, offering internal combustion and hybrid powertrain options, both engineered to meet efficiency and performance standards. With a focus on drivetrain variability, transmission refinement, braking dynamics, and integrated control systems, this model is designed for a practical and capable driving experience across urban, highway, and off-road environments.
Powertrain Configuration and Engine Output
The gasoline-powered variant is equipped with a 2.5-liter Smartstream® Turbocharged GDI and MPI inline four-cylinder engine. This configuration provides 277 horsepower at 5800 rpm and generates 311 pound-feet of torque at 4000 rpm. The aluminum block and head enhance thermal efficiency, while turbocharging and direct fuel injection enable consistent combustion across drive modes. A 10.5:1 compression ratio supports the output, and regular unleaded fuel is recommended. This engine is paired with Idle Stop and Go functionality to reduce fuel use during idle phases. The exhaust system uses a single-tip layout and meets SULEV 30 emissions standards.
The hybrid powertrain incorporates a 1.6-liter Smartstream® Turbocharged GDI inline four-cylinder engine paired with a permanent magnet synchronous electric motor. The gas engine produces 178 horsepower at 5500 rpm and 195 pound-feet of torque between 1500 and 4500 rpm. The electric motor contributes an estimated 60 horsepower and 195 pound-feet of torque. The system’s combined output totals 231 horsepower and 271 pound-feet of torque, delivered through a lithium-ion battery system operating at a maximum voltage of 270V with a capacity of 1.49 kilowatt-hours.
Transmission Efficiency and Drive Modulation
The 2.5T engine is connected to an 8-speed automatic transmission with gear ratios designed for linear torque delivery and controlled acceleration. The 1.6T hybrid variant uses a 6-speed automatic transmission. Both configurations feature Shift-by-Wire electronic gear selection and SHIFTRONIC® manual shift paddles for user-controlled engagement.
Drivetrain options include front-wheel drive or the Hyundai HTRAC all-wheel-drive system. The active on-demand AWD configuration offers front-to-rear torque distribution between 100:0 and 50:50, depending on the selected driving mode. Modes include Comfort, Eco, Sport, and Smart. The XRT trim includes specialized tuning for Snow, Sand, and Mud conditions and features an AWD lock setting fixed at a 50:50 torque split.
Suspension, Steering, and Structural Support
The suspension system of the 2026 Hyundai Santa Fe Hybrid consists of a MacPherson® strut setup in the front with coil springs and a multi-link independent layout in the rear. Both ends incorporate gas-pressurized shock absorbers with advanced valving for improved damping. A stabilizer bar is included on both axles to reduce body roll during directional transitions. The vehicle architecture is based on a unibody frame constructed primarily of high-strength steel.
Steering is managed through a column-mounted motor-driven power steering system using rack-and-pinion geometry. It delivers a 13.7 overall steering ratio with 2.6 turns lock-to-lock. Curb-to-curb turning diameter is 37.9 feet, offering maneuverability in confined settings.
Braking Mechanics and Control Features
All trims include 12.8-inch ventilated front and solid rear disc brakes. These are supported by four-channel, four-sensor ABS integrated with Electronic Brake-force Distribution. Hillstart Assist Control, Downhill Brake Control, Brake Assist, and Trailer Sway Control are standard. The hybrid model features an 11.0-inch brake booster with an integrated electric system.
The electronic parking brake includes Auto Hold functionality, allowing the vehicle to remain stationary without continuous pedal input. The boost ratio of 10.0:1 ensures responsive pedal feedback.
Dimensional Accuracy and Towing Capabilities
The overall wheelbase of the 2026 Hyundai Santa Fe Hybrid measures 110.8 inches, with a total length of 190.2 inches and a width of 74.8 inches. The standard height is 67.7 inches, increasing to 69.7 inches with roof rails. Ground clearance is 7.0 inches on standard models and 8.3 inches on the XRT trim. Tread widths vary by wheel size, with the 21-inch setup providing a 64.7-inch front and 65.1-inch rear track.

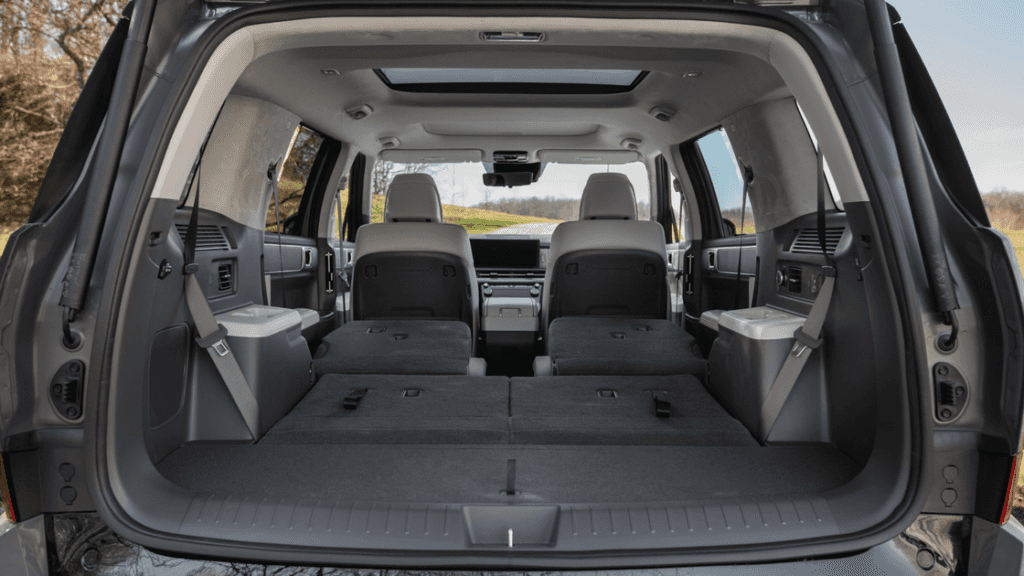

The internal cabin allows for 44.4 inches of front legroom, 42.3 inches in the second row, and 30.0 inches in the third row. Total passenger volume reaches 152 cubic feet on ICE models and 151 cubic feet on hybrid variants. Cargo space extends to 79.6 cubic feet behind the front seats and 14.6 cubic feet behind the third row.
Curb weights range from 4343 pounds (FWD ICE) to 4575 pounds (AWD HEV). Maximum towing is rated at 3500 pounds for ICE models and up to 4500 pounds on the AWD-only XRT. The hybrid is rated at 2000 pounds with trailer brakes.
Exterior Construction and Functional Components
Wheel options include 18-inch, 20-inch, and 21-inch alloys matched with tires by Goodyear®, Continental, Kumho, or Pirelli. The XRT trim uses Continental All-Terrain tires for enhanced off-road performance. Roof rails are standard on all trims except the SE, with black finishes varying by model. The XRT also includes high-clearance bumpers, matte black body cladding, and exclusive 18-inch black wheels.

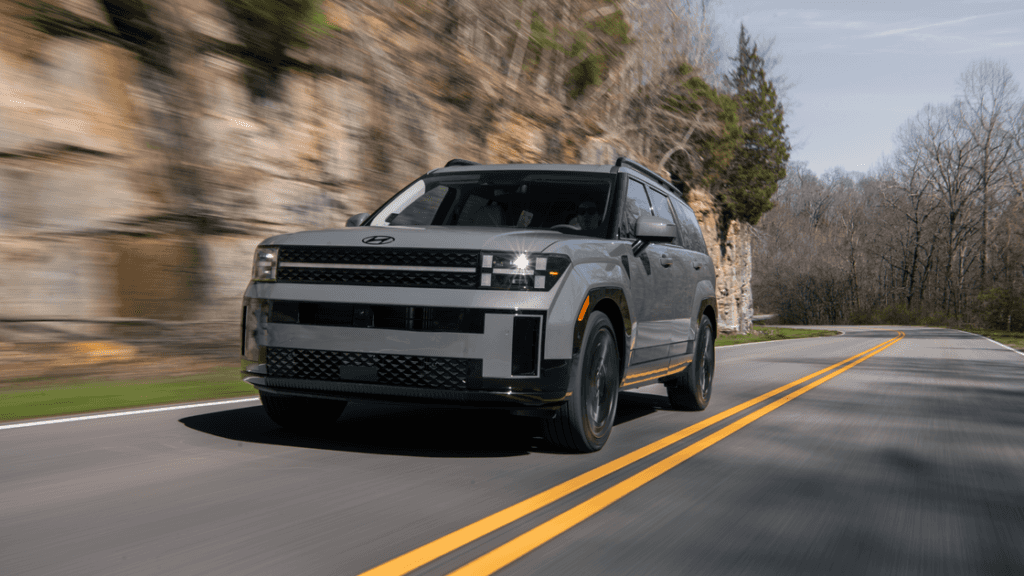

Lighting includes LED projector headlights, LED daytime running lights, LED taillights, and High Beam Assist across all trims. Rain-sensing wipers and acoustic-laminated windshield glass are available on upper trims. A dual-pane sunroof is featured on the Calligraphy variant.
Interior Systems and Technological Integration

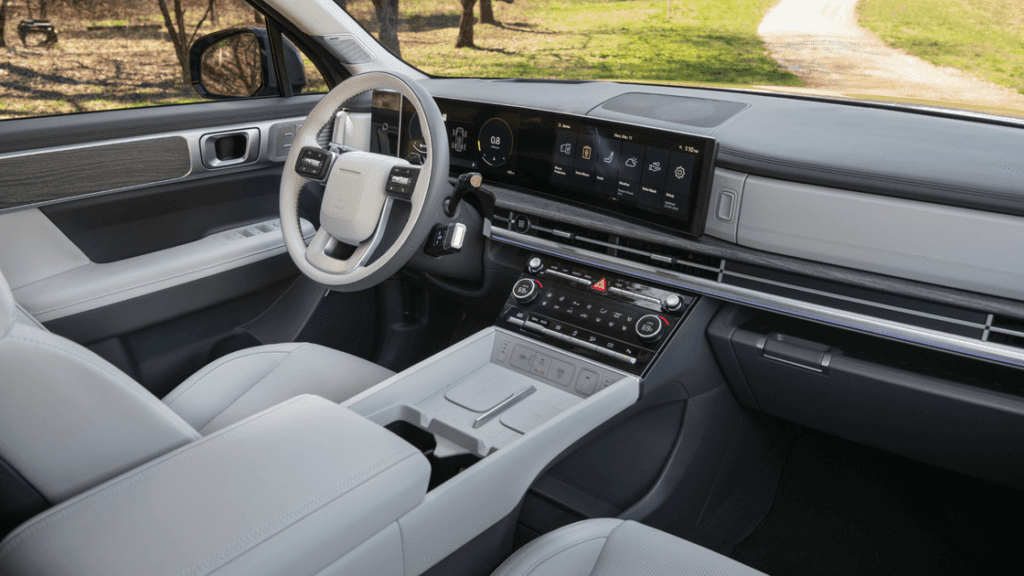

The dashboard features either a 12.3-inch touchscreen display with navigation and incident-based traffic flow or a 12.3-inch Display Audio system on base trims. Bose® premium audio with 12 speakers is standard on Limited and Calligraphy. Wireless Apple CarPlay® and Android Auto™ are included across the lineup. High-power USB charging is available in all three rows, along with wireless device charging pads on upper trims.
Digital instrumentation includes a 4.2-inch multi-information display on lower trims and a 12.3-inch digital cluster on upper models. Surround View Monitor, Blind-Spot View Monitor, and a windshield-type Head-Up Display are integrated into the Calligraphy model.
Climate control includes dual-zone automatic temperature regulation with cabin air filtration. Rear rows receive separate vents. Steering wheels are leather-wrapped on most trims and heated on higher variants.
Integrated Driver Assistance and Safety Technology
All trims feature Forward Collision-Avoidance Assist with pedestrian, cyclist, and junction detection. Lane Keeping Assist, Lane Following Assist 2, and Driver Attention Warning systems are included as standard. Higher trims gain Parking Collision-Avoidance Assist, Remote Smart Parking Assist, and Highway Driving Assist. Rear Occupant Alert is standard on the SE, while an advanced radar-based version is included in higher trims.
Passive safety includes dual front airbags, a driver knee airbag, side-impact airbags for the first and second rows, and curtain airbags. Three-point seatbelts are standard in all positions, with adjustable front anchors and pretensioners. LATCH systems are included for child safety seats.
Visit ALM Hyundai Florence to Schedule a Test Drive
Prospective drivers can evaluate engine responsiveness, cabin layout, and onboard systems by arranging a personalized session with a local dealership. For those near Conway, SC, vehicle evaluations for the 2026 Hyundai Santa Fe are available through ALM Hyundai Florence. The 2.5T powertrain, hybrid system efficiency, and comprehensive safety technology make this vehicle suitable for a detailed comparison during an in-person demonstration.
