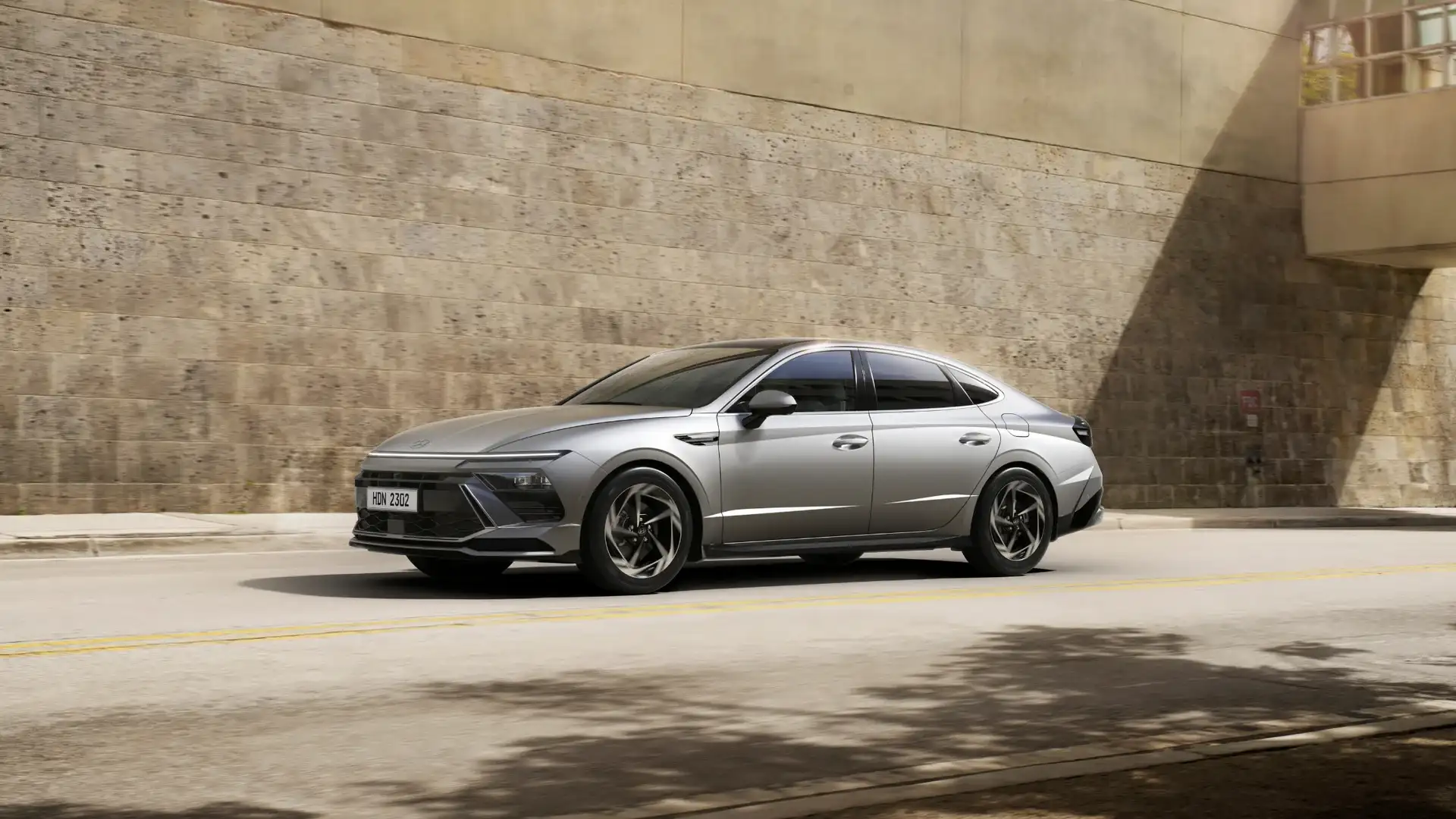

2026 Hyundai Sonata close to Myrtle Beach
The 2026 Hyundai Sonata is a five-passenger large sedan available with naturally aspirated gasoline, turbocharged gasoline, and hybrid powertrains. The model combines a unibody structure with high-tensile steel construction, electronically managed transmissions, and a broad range of comfort, connectivity, and driver assistance technologies. Multiple trim levels provide distinct equipment configurations while maintaining a common platform and interior layout. The lineup includes front-wheel drive across most variants, with available HTRAC all-wheel drive on the SEL Sport. This article examines the vehicle’s powertrain systems, chassis components, exterior equipment, interior features, infotainment technologies, safety systems, and dimensional specifications.
Powertrain and Performance
The 2026 Hyundai Sonata offers several powertrain configurations designed to support different driving requirements. The standard gasoline models use a Smartstream® 2.5-liter GDI and MPI DOHC 16-valve inline four-cylinder engine with a displacement of 2,497 cc. This engine produces 191 horsepower at 6,100 rpm and 181 lb-ft of torque at 4,000 rpm. It uses continuously variable valve timing, four valves per cylinder, and a 13.0:1 compression ratio. Hydraulic and conventional rubber motor mounts contribute to powertrain isolation, and the engine operates on unleaded fuel.
2.5-Liter Turbocharged Engine
The N Line trim uses a Smartstream® 2.5-liter Turbo GDI and MPI DOHC 16-valve inline four-cylinder engine with the same 2,497 cc displacement. Output increases to 290 horsepower at 5,800 rpm and 311 lb-ft of torque available from 1,650 to 4,000 rpm. The turbocharged engine features a 10.5:1 compression ratio and uses hydraulic and conventional rubber motor mounts. Electronic distributorless ignition and a 13.5-volt, 150-amp alternator are included. This configuration is designed exclusively for front-wheel drive operation.
Hybrid Powertrain System
The Hybrid Blue, SEL Hybrid, and Limited Hybrid models use a 2.0-liter GDI DOHC 16-valve inline four-cylinder engine with an aluminum block and cylinder heads. The gasoline engine generates 150 horsepower at 6,000 rpm and 139 lb-ft of torque at 5,000 rpm. A permanent magnet synchronous motor contributes 39 kW, or 51 horsepower, along with 151 lb-ft of torque from 0 to 1,800 rpm. The hybrid system uses a lithium-ion battery with a maximum voltage of 270 volts and a capacity of 1.62 kWh. Combined system output reaches 192 horsepower, providing integrated operation between the gasoline engine and electric motor.
Transmission and Drive Systems
The 2026 Hyundai Sonata pairs each engine with a transmission designed specifically for its operating characteristics. The standard 2.5-liter engine uses a Smartstream® 8-speed electronic automatic transmission with overdrive lock-up torque converter. This arrangement supports front-wheel drive across the lineup and available HTRAC all-wheel drive on the SEL Sport. Gear ratios are tailored to each drivetrain configuration. Steering wheel-mounted paddle shifters are included on SEL Sport models.
N Line Dual-Clutch Transmission
The N Line trim uses an 8-speed N wet dual-clutch transmission. This system employs a wet-friction twin-clutch design and specific gear ratios unique to the N Line configuration. The transmission works exclusively with front-wheel drive. Paddle shifters provide manual control through the steering wheel. The combination of the turbocharged engine and dual-clutch transmission creates a distinct drivetrain setup within the 2026 Hyundai Sonata range.
Hybrid Transmission Operation
Hybrid models use a 6-speed electronic automatic transmission equipped with SHIFTRONIC® manual shift mode. Paddle shifters perform regenerative braking selection in most drive modes. In Sport mode, the paddle shifters allow manual gear selection. Final drive ratios are calibrated specifically for the hybrid powertrain. The transmission supports front-wheel drive operation across all hybrid variants.
Chassis, Suspension, and Steering Systems
The 2026 Hyundai Sonata uses a unibody structure constructed primarily from high-tensile steel. This design supports the suspension architecture and contributes to overall rigidity. Rack-and-pinion steering is used throughout the lineup. Power assistance incorporates engine-rpm-sensing functionality. Steering systems vary according to model configuration.
Steering Characteristics
Gasoline 2.5-liter and hybrid models use column-mounted motor-driven power steering with an overall ratio of 13.27. The N Line employs rack-mounted motor-driven power steering with a quicker 12.35 ratio. Turning diameter measures 35.9 feet across the lineup. Standard models require 2.6 turns lock-to-lock, while the N Line uses 2.44 turns. These specifications support maneuverability while maintaining consistent steering characteristics.
Suspension Layout
Front suspension design consists of MacPherson® struts with stabilizer bars and gas shock absorbers. Rear suspension uses a multi-link layout with stabilizer bars and gas shock absorbers. Hyundai applies this suspension architecture across gasoline, turbocharged, and hybrid models. The common layout provides consistent chassis design throughout the lineup. Suspension components are integrated with the unibody structure to support ride control and handling characteristics.
Braking Systems
The braking system in the 2026 Hyundai Sonata incorporates power-assisted operation and pressure proportioning valves. Standard gasoline and hybrid models use 12.0-inch ventilated front disc brakes and 11.2-inch solid rear discs. The N Line receives larger 13.6-inch ventilated front discs and 12.8-inch solid rear discs. Electronic parking brake functionality with Automatic Vehicle Hold is standard. Brake hardware is integrated with several electronic control systems.
Electronic Brake Functions
Every 2026 Hyundai Sonata includes four-wheel anti-lock braking with Electronic Brake-force Distribution. Four channels and four sensors work together with Traction Control System functionality. Brake Assist is standard across the lineup. These systems operate in conjunction with Vehicle Stability Management. The braking package supports active safety technologies and overall vehicle control.
Exterior Design and Equipment
The exterior equipment of the 2026 Hyundai Sonata combines lighting systems, trim elements, glass treatments, and wheel configurations. LED projector-type headlights are standard across the lineup. Automatic Light Control and High Beam Assist are included on all trims. LED rear combination lamps and a center high-mounted stop lamp provide additional visibility. Fender-mounted LED turn signal indicators are included on N Line and Limited trims.
Wheels, Tires, and Exterior Features
Wheel sizes range from 16-inch aluminum alloy wheels to 19-inch aluminum alloy wheels depending on trim level. Tire sizes include 205/65R16, 235/45R18, and 245/40R19 specifications. Hybrid SEL and Limited models use 17-inch wheels with 215/55R17 tires. Tire Pressure Monitoring System functionality is standard. Tire mobility kits or temporary spare tires vary according to model configuration.
Glass and Exterior Components
Solar control glass is used throughout the lineup. Acoustic film windshields are standard on every model. Acoustic film front door glass appears on selected trims. Available exterior features include a panoramic glass sunroof, gloss black side rocker panels, rear spoilers, sport front fascia designs, and model-specific rear diffusers. Rear exhaust treatments differ among trims, including hidden, dual hidden, and twin-tip configurations.
Interior Comfort and Seating
The cabin of the 2026 Hyundai Sonata accommodates five occupants and offers several seating materials depending on trim level. Premium cloth upholstery is available on selected models, while H-Tex® bolsters with microfiber suede-like inserts appear on SEL Sport and N Line models. Leather-trimmed seating surfaces are available on Limited Hybrid models. Seat configurations include manual and power adjustments depending on trim. Heated and ventilated front seats are also available.
Seating Features and Storage
Driver seating configurations range from six-way manual adjustment to eight-way power adjustment with power lumbar support. Certain trims provide six-way power passenger seat adjustment and an Integrated Memory System for the driver’s seat and side mirrors. Rear seats use a 60/40 split-folding design. Adjustable head restraints and a center armrest with dual cup holders are available depending on trim level. Passenger-side seatback pockets and multiple storage areas contribute to cabin functionality.
Climate Control and Interior Appointments
Manual air conditioning is standard on SE models. Dual automatic climate control with Auto Defog is included on higher trims. Rear air vents are incorporated into the floor console on selected models. Interior appointments include liquid chrome accents, illuminated vanity mirrors, full cut-pile carpeting, and integrated door armrests. Shift controls vary between console-mounted shift-by-cable systems and column-mounted shift-by-wire systems.
Technology and Connectivity
The 2026 Hyundai Sonata uses a 12.3-inch HD touchscreen interface across the lineup. Standard audio systems include six speakers, HD Radio™ capability, SiriusXM® Satellite Radio, Bluelink® connectivity, smartphone integration, and a rearview camera. Selected trims add navigation and premium audio equipment. Connectivity features support multiple devices and charging functions. System layouts vary according to trim level.
Navigation and Premium Audio
N Line and Limited Hybrid trims include a 12.3-inch navigation display with Bose® premium audio. The system incorporates 12 speakers, including a center channel and rear-mounted subwoofer. Dynamic Voice Recognition is included with the navigation package. Wi-Fi hotspot capability is also integrated. HERE HD Traffic and Hyundai Pay functionality are available with these configurations.
Smartphone Integration and Convenience Features
Apple CarPlay® and Android Auto™ compatibility support both wired and wireless operation. USB connections and rear charging ports are included throughout the lineup. Wireless device charging is available on selected trims. Smart Cruise Control with Start/Stop is standard equipment. Additional convenience features include Hyundai Digital Key 2.0 Premium, Proximity Key Entry with Push Button Start, Hands-free Smart Trunk operation, and Remote Smart Parking Assist on Limited Hybrid models.
Instrumentation and Driver Information
The instrument systems of the 2026 Hyundai Sonata include speedometer, tachometer, coolant temperature, fuel level, odometer, and trip odometer displays. Numerous indicator functions monitor vehicle systems and driver assistance technologies. Warning lights provide status information for essential systems including airbags, seat belts, brakes, TPMS, ABS, and engine operation. Warning chimes alert occupants to seat belt usage and key-related conditions. Adjustable illumination levels are provided throughout the lineup.
Driver Information Displays
Indicators display information related to Smart Cruise Control, high beams, turn signals, parking brake operation, and active safety systems. Additional notifications include low fuel warnings and washer fluid monitoring. Driver assistance indicators cover functions such as Blind-Spot Warning, Driver Attention Warning, Lane Keeping Assist, and Forward Collision-Avoidance Assist. N Line models include a color head-up display. These features contribute to driver awareness and vehicle monitoring.
Safety and Driver Assistance Systems
The 2026 Hyundai Sonata incorporates a comprehensive group of passive and active safety systems. Airbag protection includes driver and front passenger airbags, a driver’s knee airbag, side-impact airbags, and side curtain airbags. Occupant Classification System functionality is included. Seat belts use pretensioners and force limiters, while height-adjustable front shoulder anchors improve occupant positioning. LATCH attachment points and rear tether anchors support child restraint installation.
Active Safety Technologies
Forward Collision-Avoidance Assist includes pedestrian, cyclist, and junction turning detection capability. Lane Keeping Assist, Lane Following Assist, Driver Attention Warning, and High Beam Assist are standard. Vehicle Stability Management works together with Traction Control System functionality. Blind-Spot Collision Warning with Rear Cross-Traffic Collision-Avoidance Assist is included across the lineup. Safe Exit Warning and Rear Occupant Alert are also standard features.
Parking Assistance and Monitoring Systems
Limited Hybrid models add several additional monitoring systems. These features include Blind-Spot View Monitor, Parking Collision-Avoidance Assist Rear, and Park Distance Warning for forward, side, and reverse detection. Surround View Monitor provides additional visibility during low-speed maneuvers. Rearview monitoring systems are standard across all trims. These technologies supplement the active safety systems of the 2026 Hyundai Sonata and assist during parking operations.
Dimensions, Capacities, and Weight Specifications
The 2026 Hyundai Sonata rides on a 111.8-inch wheelbase and measures 193.3 inches in overall length. Overall width is 73.2 inches, while overall height measures 56.9 inches. Ground clearance is 5.3 inches. Passenger volume totals 104.4 cubic feet, while trunk capacity measures 15.6 cubic feet. Total interior volume reaches 120.0 cubic feet.
Capacity and Weight Information
Fuel tank capacity measures 15.9 gallons on gasoline models and 13.2 gallons on hybrid variants. Engine oil capacity ranges from 5.5 to 6.7 quarts depending on the powertrain. Engine coolant capacity varies according to engine configuration. Curb weight ranges from 3,232 pounds to 3,687 pounds. Maximum trailer capacity is listed as not recommended, and the 2026 Hyundai Sonata is classified as a large car.
