2026 Hyundai Tucson Hybrid in Florence, SC
The 2026 Hyundai Tucson Hybrid is engineered as a compact hybrid SUV designed around a dual-powertrain architecture that prioritizes efficiency, mechanical balance, and integrated electronic systems. From the dealership’s perspective, this model represents a precise application of the Hyundai Smartstream® hybrid technology, combining a turbocharged internal combustion engine with an electric propulsion system to support controlled power delivery, reduced fuel consumption, and consistent drivability. Every major system in the 2026 Hyundai Tucson Hybrid is configured to function cohesively, with measurable outputs and standardized components that reflect a focus on structural integrity, system efficiency, and predictable performance characteristics.
Hybrid Powertrain Configuration and Mechanical Output
The 2026 Hyundai Tucson Hybrid uses a Smartstream® 1.6-liter Turbo-GDI inline four-cylinder gasoline engine paired with an electric motor to form a parallel hybrid system. The gasoline engine is constructed with an aluminum block and cylinder head and operates using Continuously Variable Valve Duration technology, which adjusts valve opening time to balance combustion efficiency and torque production across the operating range. This engine produces 178 horsepower at 5,500 rpm and 195 lb-ft of torque between 1,500 and 4,500 rpm. Bore and stroke measurements are set at 75.6 mm by 89.0 mm, with a compression ratio of 10.5:1. The engine is calibrated for regular unleaded fuel and meets SULEV30 emissions standards.
The electric portion of the hybrid system consists of a permanent magnet synchronous motor integrated into the drivetrain. The motor provides 47.7 kW of power, equivalent to 64 horsepower, with peak torque output of 195 lb-ft available at 1,700 rpm. Electrical energy is supplied by a lithium-ion battery rated at 1.49 kWh, operating at a maximum voltage of 270 volts. Battery output is rated at 64 kW, allowing the motor to assist propulsion during acceleration and maintain vehicle momentum during low-load driving conditions.
Combined system output for the 2026 Hyundai Tucson Hybrid is rated at 231 horsepower with total system torque measured at 271 lb-ft. Power delivery is managed through a 6-speed automatic transmission designed specifically for hybrid applications. The transmission uses a torque converter and shift-by-wire control to support smooth gear transitions and consistent torque flow. Steering wheel-mounted paddle shifters are included to allow manual gear selection.
Drivetrain Architecture and Traction Management
The 2026 Hyundai Tucson Hybrid is available with the Hyundai HTRAC all-wheel drive system, an electronically controlled system that distributes torque between the front and rear axles based on traction demand and driving conditions. The system operates in coordination with onboard sensors that monitor wheel speed, throttle input, and steering angle. A center-console-mounted drive mode selector allows the driver to adjust throttle response and drivetrain behavior. The final drive ratio for the hybrid configuration is set at 3.320.
Front-wheel drive is standard on select trims, while all-wheel drive is optional. Minimum ground clearance measures 7.1 inches for front-wheel drive configurations and 8.3 inches for all-wheel drive models. These measurements support moderate off-pavement capability while maintaining stable on-road handling.
Suspension Design, Steering Systems, and Braking Hardware
The 2026 Hyundai Tucson Hybrid is built on a unibody platform using advanced high-strength steel and high-tensile steel to support structural rigidity and controlled weight distribution. The front suspension uses a MacPherson® strut layout with coil springs, stabilizer bars, and gas-pressurized shock absorbers. The rear suspension employs a multi-link design with matching stabilizer bars and gas-pressurized dampers. This configuration supports predictable ride behavior and controlled body motion during cornering and braking.
Steering is handled by a motor-driven power steering system mounted to a rack-and-pinion assembly. The steering ratio is set at 13.7:1, with 2.41 turns lock-to-lock. Turning diameter measures 38.6 feet curb-to-curb, supporting maneuverability in confined driving environments.
Braking hardware consists of four-wheel disc brakes with ventilated front discs measuring 12.8 inches in diameter and solid rear discs measuring 12.0 inches. Standard brake-related systems include Anti-lock Braking System, Electronic Brake-force Distribution, Brake Assist, Hillstart Assist Control, Downhill Brake Control, and an electronic parking brake with automatic vehicle hold functionality.
Exterior Structure, Lighting Systems, and Functional Elements
Exterior dimensions for the 2026 Hyundai Tucson Hybrid include a wheelbase of 108.5 inches, an overall length of 182.7 inches, an overall width of 73.4 inches, and an overall height of up to 66.3 inches with all-wheel drive. The aerodynamic profile results in a coefficient of drag rated at 0.33, supporting fuel efficiency and highway stability.
Exterior lighting systems rely exclusively on LED technology. Standard equipment includes Bi-LED headlights with high and low beams, LED daytime running lights, LED front turn signals, LED taillights, and LED license plate lighting. Automatic headlights and High Beam Assist are included to manage illumination based on ambient conditions.
Wheel options include 17-inch, 18-inch, and 19-inch alloy wheels depending on trim configuration. Tire sizes range from 235/65R17 to 235/55R19. Roof rails are standard and rated to support loads up to 220 pounds. Acoustic laminated glass is used for the windshield and front side windows to reduce exterior noise intrusion.
Interior Configuration, Seating Systems, and Material Applications

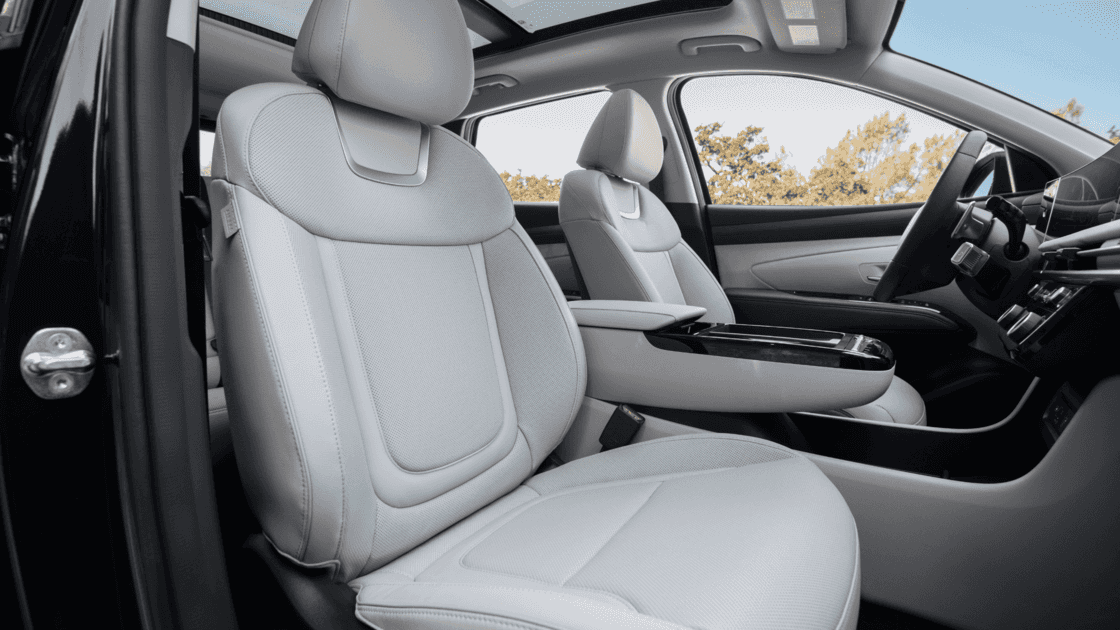

The interior of the 2026 Hyundai Tucson Hybrid is designed for five-passenger capacity with a focus on functional space utilization. Seating configurations include cloth-trimmed, H-Tex® leatherette, or leather-trimmed surfaces depending on trim. Front seating options include 8-way power adjustment for the driver, power lumbar support, heated front seats, ventilated front seats, and integrated memory settings on select trims.
Rear seating uses a 60-40 split-folding design with reclining functionality and adjustable head restraints. Rear seat heating is available on higher trims. A dual-level cargo floor is standard on hybrid models, allowing flexibility in load management. Cargo capacity measures 38.7 cubic feet with rear seats upright and up to 74.5 cubic feet with rear seats folded.
Interior climate control uses dual automatic temperature control with capacitive-touch controls and physical temperature adjustment knobs. Rear seat HVAC vents are standard. Cabin air filtration, rear window defrost with timer, and after-blow logic are included to manage interior air quality.
Digital Displays, Infotainment Systems, and Connectivity

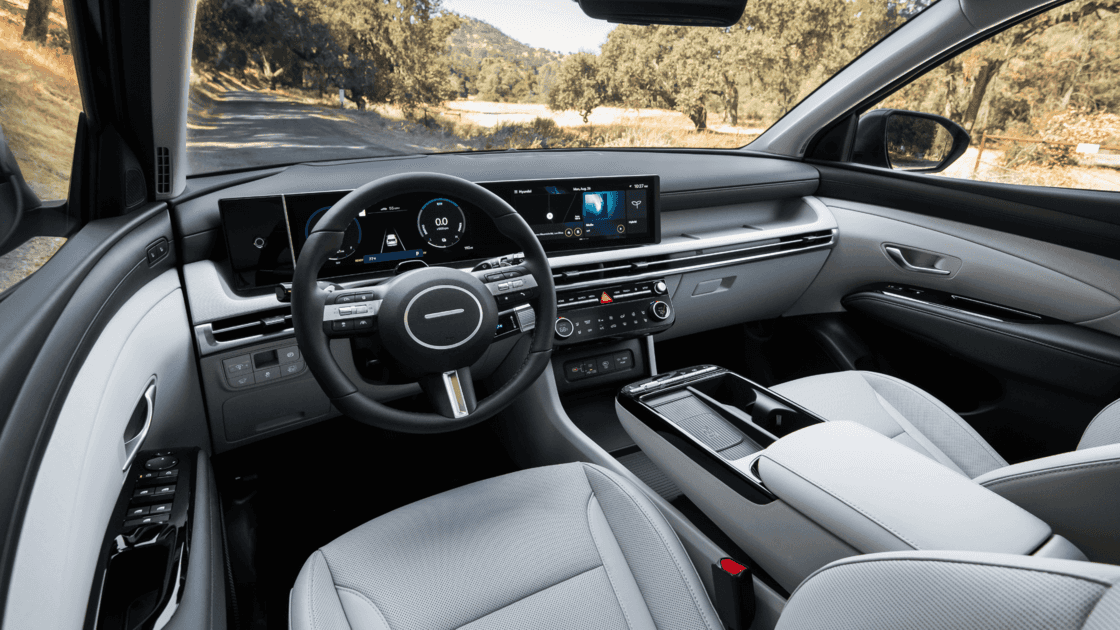

Technology integration in the 2026 Hyundai Tucson Hybrid centers around a 12.3-inch color touchscreen display. Depending on the trim, the system includes onboard navigation with over-the-air update capability for maps and multimedia software. Wireless Apple CarPlay® and Android Auto™ are standard across all trims.
Audio systems include a standard six-speaker configuration or an available Bose® premium audio system with an eight-channel digital amplifier and eight speakers, including a dedicated subwoofer. Multiple USB Type-C ports are installed throughout the cabin, delivering up to 27W of charging power for compatible devices.
Instrumentation options include a 4.2-inch multi-information display or a 12.3-inch fully digital instrument cluster. Displayed information includes speed, fuel level, hybrid system status, driver assistance indicators, and vehicle alerts. Additional technology includes Smart Cruise Control with Stop and Go, wireless device charging, Hyundai Digital Key 2 Premium functionality, and the Bluelink®+ connected car system.
Driver Assistance and Safety System Integration
The 2026 Hyundai Tucson Hybrid includes a comprehensive suite of active and passive safety systems. Standard driver assistance features include Forward Collision-Avoidance Assist with pedestrian, cyclist, and junction turning detection; Blind-Spot Collision Warning; Rear Cross-Traffic Collision-Avoidance Assist; Lane Keeping Assist; Lane Following Assist; Driver Attention Warning; Intelligent Speed Limit Assist; and Safe Exit Warning.
Available systems on higher trims include Highway Driving Assist, Navigation-based Smart Cruise Control with Curve Control, Blind-Spot View Monitor, Surround View Monitor, Parking Collision-Avoidance Assist Reverse, and Parking Distance Warning for front, rear, and side detection.
Passive safety systems include advanced front airbags, front seat-mounted side airbags, side curtain airbags with rollover sensors, rear side airbags, reinforced body structures, seatbelt pretensioners, load limiters, and LATCH anchors for child seats.
Dimensions, Interior Volume, and Storage Capacity
Interior measurements for the 2026 Hyundai Tucson Hybrid include front headroom of 40.1 inches without a sunroof and rear headroom of 39.5 inches. Legroom measures 41.4 inches in the front and 41.3 inches in the rear. Shoulder room measures 57.6 inches in the front and 56.0 inches in the rear. Passenger interior volume totals 107.9 cubic feet.
Fuel tank capacity for the hybrid configuration is rated at 13.7 gallons. Engine oil capacity is 4.8 liters. Total interior volume measures 146.7 cubic feet without a panoramic sunroof.
Schedule a Test Ride at ALM Hyundai Florence
Drivers interested in examining the engineering and system integration of the 2026 Hyundai Tucson Hybrid are encouraged to arrange a test drive at ALM Hyundai Florence in Florence, SC. A scheduled drive allows hands-on evaluation of hybrid power delivery, transmission behavior, and all-wheel drive operation under typical driving conditions. On-site specialists can provide detailed explanations of drivetrain components, safety technologies, and infotainment systems. Experiencing the vehicle directly offers practical insight into steering response, braking performance, and cabin technology functionality. Appointments can be scheduled to allow sufficient time for a thorough technical walkthrough and driving assessment.
