2026 Hyundai Tucson Hybrid nearby Conway, SC
The 2026 Hyundai Tucson Hybrid combines an electrified powertrain, standard HTRAC all-wheel drive, structured chassis engineering, and a broad set of comfort, technology, utility, and safety systems in a compact SUV format. Its hybrid system pairs a Smartstream® 1.6L Turbo-GDI engine with a permanent magnet synchronous motor, a lithium-ion battery, and a 6-speed automatic torque converter transmission. The model emphasizes functional performance through 231 total system horsepower, 271 lb-ft of total system torque, and standard Active On-Demand all-wheel-drive capability. Inside, the 2026 Hyundai Tucson Hybrid supports five-passenger seating, flexible cargo access, available premium seating materials, digital displays, connected features, and multiple charging points.
Hybrid Powertrain and Drivetrain Engineering
The 2026 Hyundai Tucson Hybrid uses a dedicated hybrid powertrain built around the Smartstream® 1.6L Turbo-GDI DOHC 16-valve inline 4-cylinder engine. This engine has a displacement of 1,598 cc and uses an aluminum block and aluminum head, which aligns with the modern mechanical layout of the 2026 Hyundai Tucson Hybrid. Hyundai equips the engine with Continuously Variable Valve Duration, a variable intake system, a full engine cover, and regular unleaded fuel compatibility. The gasoline engine produces 178 horsepower at 5,500 rpm and 195 lb-ft of torque from 1,500 to 4,500 rpm before electric motor output contributes to the full hybrid system. Those specifications give the 2026 Hyundai Tucson Hybrid a defined mechanical base that supports both efficient power delivery and everyday drivability.
Hybrid System Output and Electric Motor Specifications
The hybrid system adds a permanent magnet synchronous motor that works with the gasoline engine to produce 231 total system horsepower. Total system torque measures 271 lb-ft, giving the 2026 Hyundai Tucson Hybrid a strong combined output figure for acceleration, merging, and all-wheel-drive operation. The electric motor alone produces 47.7 kW, or 64 horsepower, from 1,800 to 2,100 rpm. It also produces 195 lb-ft of motor torque at 1,700 rpm, which contributes useful low-speed response and supports smooth power application. The hybrid battery uses lithium-ion chemistry, operates at a maximum of 270 volts, has a 1.49 kWh system capacity, and provides 64 kW of battery power output.
Transmission, HTRAC AWD, and Driver Interface
The 2026 Hyundai Tucson Hybrid comes standard with HTRAC AWD with Active On-Demand operation. This drivetrain configuration pairs with a 6-speed automatic torque converter transmission, giving the hybrid model a conventional automatic shift structure. Hyundai includes steering wheel paddle shifters and Shift-By-Wire as standard equipment on the 1.6T hybrid configuration. The transmission uses gear ratios of 4.638 in first, 2.826 in second, 1.841 in third, 1.386 in fourth, 1.000 in fifth, 0.772 in sixth, and 3.385 in reverse. The hybrid final gear ratio measures 3.320, and the center-console-mounted drive mode control gives the driver a direct interface for selecting vehicle behavior.
Chassis, Suspension, Steering, and Braking
The 2026 Hyundai Tucson Hybrid uses a unibody structure that supports the suspension, drivetrain, steering, braking, cabin, and cargo area through one integrated body system. Hyundai specifies primary advanced high-strength steels and high-tensile steel for the body and chassis materials. This structure works with independent suspension hardware, column-mounted electric power steering, and four-wheel disc brakes to support control, stability, and stopping performance. The chassis layout also includes systems that assist the driver during grade changes, low-speed maneuvering, and brake-force management. Together, these components give the 2026 Hyundai Tucson Hybrid a well-defined foundation for handling, ride quality, and everyday mechanical response.
Suspension and Steering Specifications
The front suspension uses a MacPherson® strut design with coil springs, a stabilizer bar, and gas-pressurized shock absorbers. The rear suspension uses a multi-link design, also paired with a stabilizer bar and gas-pressurized shock absorbers. This setup gives the 2026 Hyundai Tucson Hybrid independent suspension hardware at both the front and rear. The steering system uses column-mounted Motor Driven Power Steering with a rack-and-pinion layout. Hyundai lists a 13.7:1 overall steering ratio, 2.41 turns from lock to lock, and a 38.6-foot curb-to-curb turning diameter.
Brake Hardware and Control Systems
The 2026 Hyundai Tucson Hybrid uses ventilated front disc brakes that measure 12.8 inches by 1.2 inches, or 325 mm by 30 mm. Rear braking hardware consists of solid discs measuring 12.0 inches by 0.4 inches, or 300 mm by 10 mm. The Anti-lock Braking System includes Electronic Brake-force Distribution, four wheels, four channels, and four sensors. Hyundai also equips the model with driver-selectable Downhill Brake Control, Hillstart Assist Control, Brake Assist, and an Electronic Parking Brake with Automatic Vehicle Hold. These systems support controlled braking response, assist on inclines, and simplify stationary holds during traffic or low-speed operation.
Exterior Dimensions, Lighting, and Utility Equipment
The 2026 Hyundai Tucson Hybrid uses compact SUV dimensions with exterior hardware designed to support visibility, access, utility, and aerodynamic function. Its wheelbase measures 108.5 inches, overall length measures 182.7 inches, and overall width measures 73.4 inches. For AWD models with roof rails, overall height measures 66.3 inches, while minimum ground clearance measures 8.3 inches for AWD. Hyundai lists a 0.33 coefficient of drag, and roof rails provide a 220-pound load capacity. The exterior also includes trailer pre-wiring across the lineup and dedicated anodized aluminum HEV badging for hybrid identification.
Wheels, Tires, Lighting, and Glass
The Blue SE Hybrid uses 17 x 7.0J alloy wheels with 235/65R17 tires. SEL hybrid configurations use 18 x 7.5J alloy wheels with 235/60R18 tires, while Limited hybrid models use 19 x 7.5J alloy wheels with 235/55R19 tires. Hybrid models use a Tire Mobility Kit rather than the compact temporary tire listed for gasoline-only configurations. Lighting equipment includes Bi-LED headlights, LED front turn signals, LED Daytime Running Lights, automatic headlights, High Beam Assist, and a roof-mounted Center High-Mount Stop Lamp. Limited models add projector-type Bi-LED headlights and premium half-mirror-type Daytime Running Lights, while LED taillights and LED license plate lights are included on higher-listed configurations.
Mirrors, Liftgate, Roof Rails, and Exterior Details
The outside mirror system includes Blind-Spot Collision Warning and Rear Cross-Traffic Collision-Avoidance Assist indicators across the trim structure. Heated outside mirrors appear on SEL and higher trims, while side mirrors with turn signal indicators appear as optional equipment on SEL Convenience and standard equipment on higher-listed trims. The exterior includes body-color bumpers, body-color door handles, black side sill material, solar glass for the front doors and windshield, and an acoustic laminated windshield. Limited models add premium front and rear fascias, front-side acoustic laminated glass, and side mirror housings with a premium accent. SEL and higher trims include roof side rails and a hands-free Smart Liftgate with auto open and an adjustable height setting, while all trims include a shark-fin roof antenna and a rear spoiler integrated with the Center High-Mount Stop Lamp.
Interior Seating, Comfort, and Cargo Functionality

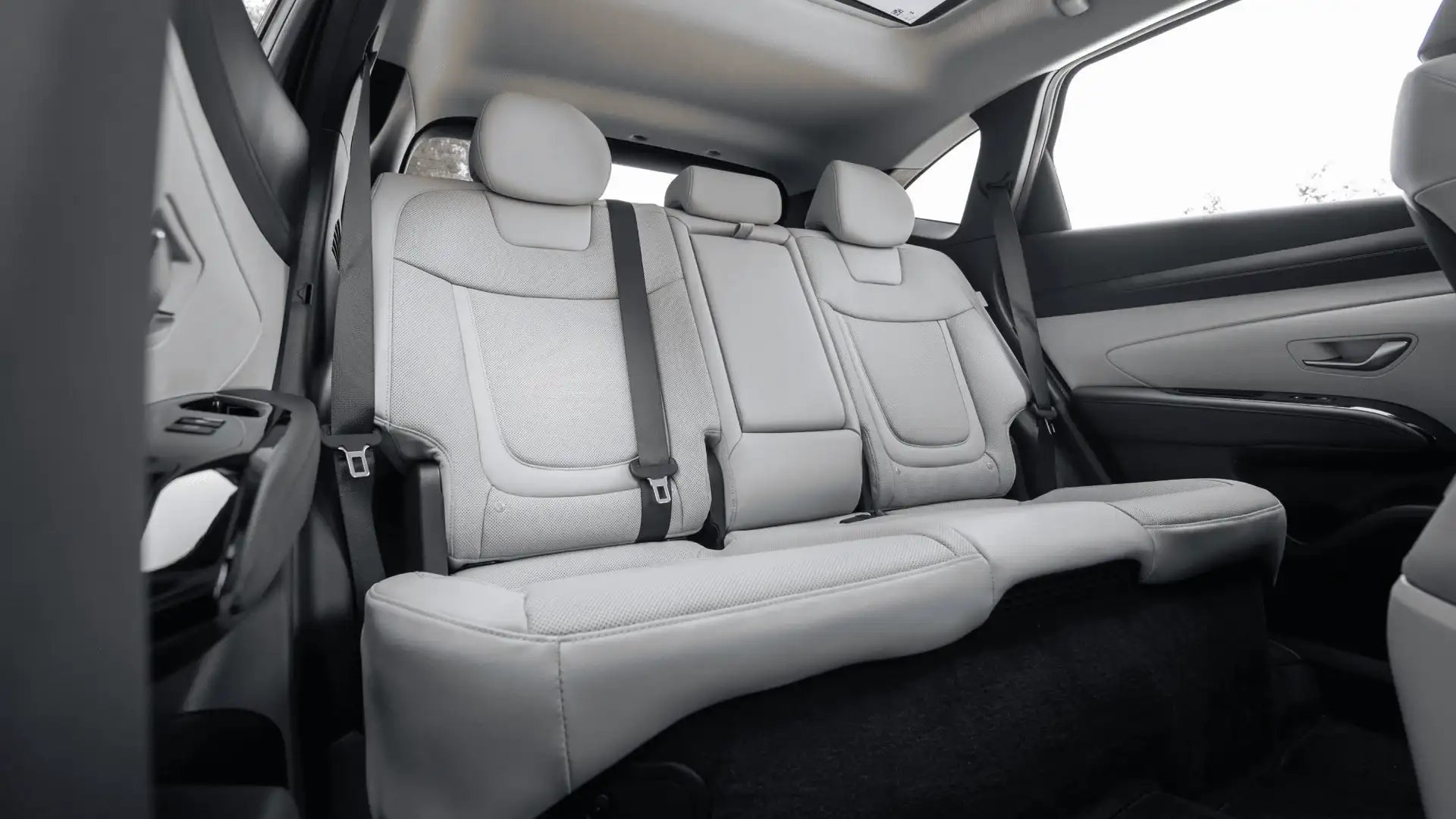

The 2026 Hyundai Tucson Hybrid provides five-passenger seating with a cabin layout designed around comfort, access, storage, and flexible cargo use. Cloth-trimmed stain- and odor-resistant seats appear on SE and SEL, while H-Tex® trimmed seats appear as optional equipment on SEL Convenience and standard equipment on XRT. Limited models add leather-trimmed seating and expand the comfort feature set with additional power adjustment, ventilation, heating, and memory functions. The cabin dimensions support front and rear occupants with generous measurements for head room, leg room, shoulder room, and hip room. The interior also includes folding rear seats, a dual-level cargo floor for hybrid models, cargo-area releases, and multiple tie-down points to improve usability.
Seating Layout and Passenger Measurements
The 2026 Hyundai Tucson Hybrid provides 40.1 inches of front head room and 39.5 inches of rear head room without a sunroof. Models with a panoramic sunroof provide 38.1 inches of front head room and 38.7 inches of rear head room. Front legroom measures 41.4 inches, and rear leg room measures 41.3 inches in hybrid models. Shoulder room measures 57.6 inches in front and 56.0 inches in the rear, while hip room measures 54.5 inches in front and 53.9 inches in the rear. Total interior volume without a panoramic sunroof measures 146.7 cubic feet, and passenger interior volume without a panoramic sunroof measures 107.9 cubic feet.
Seat Features, Climate Control, and Cargo Space
SEL and higher trims add an 8-way power driver’s seat, power driver’s lumbar support, and heated front seats with three heat levels. Limited adds an 8-way power front passenger seat, ventilated front seats, heated rear seats with high, medium, and low settings, and an Integrated Memory System for the driver’s seat and outside mirrors with reverse dip functionality. The rear seat uses a 60/40 split fold-down and reclining seatback with adjustable head restraints, and remote release folding rear seats from the cargo area improve loading convenience. Cargo volume measures 38.7 cubic feet by SAE measurement and 41.2 cubic feet by maximum measurement with the rear seats up, while folded-seat capacity measures 74.5 cubic feet by SAE measurement and 80.0 cubic feet by maximum measurement. Hybrid models also include a 13.7-gallon fuel tank, a 4.8-liter engine oil capacity, a dual-level cargo floor, six cargo tie-down anchors, and a bag hook on the second-row seatback.

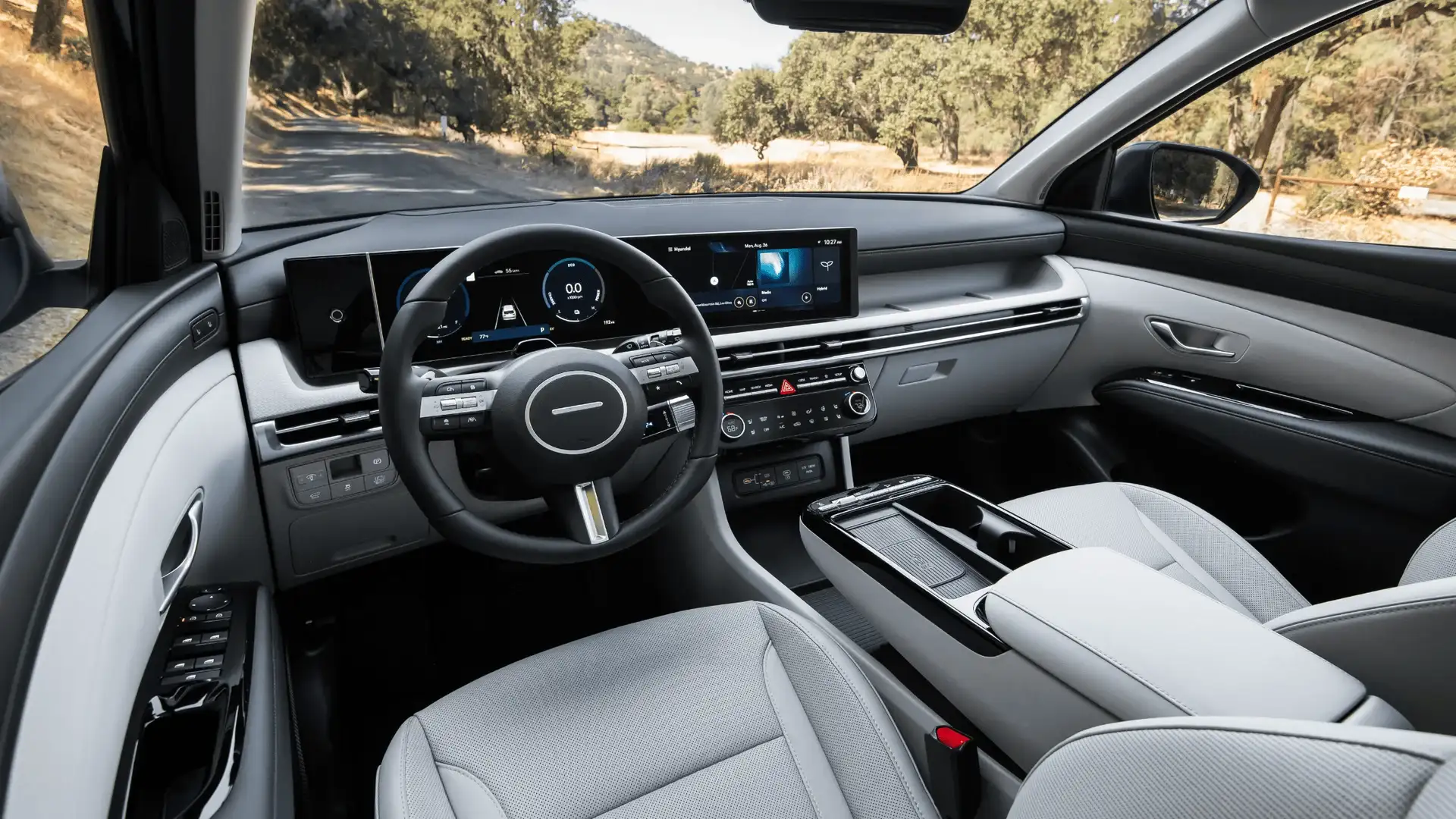

HVAC, Cabin Controls, and Interior Details
Hybrid models include dual automatic temperature control with Auto Defogger, full capacitive-touch controls, and knobs for temperature adjustment. The system also includes After-Blow logic, an external temperature display, a heater, rear-seat heater ducts, floor console-mounted rear A/C vents, a cabin air filter, and a rear window defroster with a timer. Steering wheel equipment includes a three-spoke design, tilt and telescoping adjustment, audio controls, Bluetooth® controls, and cruise control buttons across the lineup. Limited adds a heated steering wheel with high and low settings, while a leather-wrapped steering wheel appears on higher-listed configurations. Additional interior details include metal-paint door handles, integrated door armrests, sun visors with dual vanity mirrors and sliding function, illuminated sun visors on SEL and higher trims, a fixed front center console armrest storage box, dual front cupholders, a rear center armrest with cupholders, and two 12-volt outlets.
Multimedia, Connectivity, and Driver Information
The 2026 Hyundai Tucson Hybrid integrates display technology, audio systems, connected features, device charging, and driver information systems throughout the cabin. Every trim includes wireless Apple CarPlay® and Android Auto™, SiriusXM® Satellite Radio, HD Radio™ Technology, controller OTA update capability, front dual USB Type-C ports, second-row dual USB ports with 27W charging power, and a rearview camera. SE and SEL models use a 12.3-inch color touchscreen with AM/FM, HD Radio™, SiriusXM® Satellite Radio, and a 6-speaker ccNC Lite system. The Limited adds a 12.3-inch color touchscreen with onboard Navigation, Dynamic Voice Recognition, map and multimedia software OTA update capability, and a Bose® Premium Audio System. The technology layout supports navigation, entertainment, communication, driver information, and over-the-air update capability through equipment tied directly to trim level.
Audio, Display, and Charging Features
The Limited trim’s Bose® Premium Audio System uses a digital 8-channel amplifier with custom equalization, Digital Signal Processing, Dynamic Speed Compensation, and eight speakers. The speaker layout includes one Twiddler on the center of the instrument panel, two tweeters, two front-door speakers, two rear-door speakers, and one woofer on the rear quarter panel. Instrumentation includes a 4.2-inch Multi-Information Display on SE and SEL models, while Limited adds a 12.3-inch digital instrument cluster. The gauge and indicator set includes a speedometer, tachometer, coolant temperature display, fuel level display, digital odometer, trip odometer, PRND gear-position display in manual mode, and adjustable illumination. The system also displays or supports indicators for Smart Cruise Control with Stop & Go, turn signals, High Beam Assist, parking brake, AWD Lock availability, and multiple active safety features.
Connected Systems and Convenience Technology
The Bluelink®+ Connected Car System comes standard across the 2026 Hyundai Tucson Hybrid lineup. Proximity key entry with push-button start, power door locks, remote keyless entry with alarm and panic, remote hood release, a storage tray below the 12-volt outlet, assist grips, a rear coat hanger, and a glove compartment with a damper also appear across the lineup. Limited adds Remote Smart Parking Assist, an illuminated glove compartment, an auto-dimming mirror with HomeLink, 15W wireless device quick charging, and rain-sensing wipers. Hyundai Pay appears on Limited and as optional equipment on ICE SEL Convenience, while Hyundai Digital Key 2 Premium functionality with NFC, BLE, and UWB-type operation appears on Limited. Ambient interior lighting with 64-color capability appears on XRT and Limited, and the system illuminates the upper center console on Shift-By-Wire models, the front passenger dashboard tray, and the front door pockets.
Safety, Driver Assistance, and Security Systems
The 2026 Hyundai Tucson Hybrid includes restraint systems, active safety features, driver assistance technologies, and security equipment that support occupant protection and driver awareness. The airbag system includes an advanced driver front airbag, a front passenger airbag, Occupant Classification System with a seat weight sensor and seat track sensor, driver and front passenger side-impact thorax airbags, side air curtains for front and rear passengers with rollover sensors, and rear side airbags. Seatbelt equipment includes 3-point ELR outboard seatbelts, a 3-point ELR rear inboard seatbelt, a 5-position seatbelt reminder, adjustable front-seat shoulder belt anchors, and front and rear outboard seatbelt pretensioners and load limiters. Child-focused equipment includes LATCH lower anchors and upper tether anchors, a power window lock-out button, and rear child safety locks. Active safety hardware includes ABS with four-wheel disc brakes, Electronic Stability Control with Traction Control and Brake Assist, Vehicle Stability Management, and Tire Pressure Monitoring System with individual tire indicators.
Standard Driver Assistance Features
Forward Collision-Avoidance Assist includes Pedestrian, Cyclist, and Junction Turning Detection with sensor fusion-type operation. Blind-Spot Collision Warning, Rear Cross-Traffic Collision-Avoidance Assist, Driver Attention Warning, Lane Keeping Assist, Lane Following Assist, Intelligent Speed Limit Assist, and Safe Exit Warning also appear across the lineup. Steering wheel haptic feedback supports the Lane Keeping Assist and Blind-Spot Collision-Avoidance Assist functions. Smart Cruise Control with Stop & Go appears across the lineup, and Limited adds Smart Cruise Control 2 on vehicles equipped with Highway Driving Assist 1. Rear Occupant Alert appears on SE, SEL, and XRT, while Advanced Rear Occupant Alert with radar-type operation appears on Limited and as optional equipment on SEL Convenience.
Available Advanced Assistance and Security Equipment
Limited expands the driver assistance package with Parking Collision-Avoidance Assist in Reverse, Parking Distance Warning for front, rear, and side, Surround View Monitor, and Blind-Spot View Monitor. It also adds Forward Attention Warning using an in-cabin camera and Driver Monitoring System, Highway Driving Assist 1, and Navigation-based Smart Cruise Control with Curve Control. These features support parking visibility, lane-centering assistance, speed management, attention monitoring, and low-speed maneuvering. Passive safety and security equipment includes bodyside reinforcements, an anti-theft system integrated with remote keyless entry and a panic alarm, and an immobilizer. The combination of restraint systems, braking controls, stability systems, and driver assistance technologies gives the 2026 Hyundai Tucson Hybrid a broad safety and security feature set tied to functional operation rather than unnecessary complexity.
Visit ALM Hyundai Florence nearby Conway, SC
Drivers can schedule a 2026 Hyundai Tucson Hybrid test drive with ALM Hyundai Florence nearby Conway, SC to evaluate the vehicle’s hybrid performance, technology, comfort, handling, and safety features in person. Our team can review the 231-horsepower total system output, HTRAC AWD operation, 6-speed automatic transmission, steering response, braking systems, and driver assistance equipment during a focused vehicle walkaround. A test drive also gives shoppers the opportunity to experience the seating layout, cargo flexibility, multimedia interface, available digital displays, and cabin comfort features. Our team can explain trim-specific equipment, including wheel and tire packages, liftgate functionality, audio systems, connected features, and available Limited driver assistance technology. Schedule a visit to examine how the 2026 Hyundai Tucson Hybrid combines electrified power, practical utility, cabin technology, and safety-focused engineering in one compact SUV package.
