2026 Hyundai Venue in Florence, SC
The 2026 Hyundai Venue is engineered as a subcompact sport utility vehicle with a clear emphasis on mechanical efficiency, structural integrity, and integrated safety and technology systems. The model is designed around a lightweight yet rigid unibody architecture, paired with a naturally aspirated gasoline engine and a continuously variable transmission optimized for predictable power delivery. Every system in the 2026 Hyundai Venue reflects a deliberate focus on reliability, functional packaging, and compliance with modern emissions and safety standards. This vehicle configuration supports consistent drivability across urban and highway environments while maintaining compact exterior dimensions and usable interior volume. The following sections detail the technical composition of the 2026 Hyundai Venue, with attention to verified specifications and system-level functionality.
Engine Architecture and Combustion Systems
The 2026 Hyundai Venue is equipped across all trims with a Gamma Generation 2 1.6-liter inline four-cylinder engine. This powerplant displaces 1,598 cubic centimeters and is transversely mounted to support the front-wheel-drive layout. The engine uses a Dual Overhead Camshaft configuration with four valves per cylinder, resulting in a total of sixteen valves. Dual Port Fuel Injection manages fuel delivery, supporting controlled atomization and consistent combustion under varying load conditions.
The engine block and cylinder head are constructed from aluminum, reducing mass while supporting heat dissipation. Bore and stroke dimensions measure 75.6 millimeters by 89 millimeters, contributing to a combustion profile tuned for efficiency rather than high rotational output. The compression ratio is set at 11.2 to 1, balancing power production with fuel economy and emissions control.
Maximum output is rated at 121 horsepower at 6,300 revolutions per minute, with peak torque measured at 113 pound-feet at 4,500 revolutions per minute. Valve timing is regulated through mid-phase Continuously Variable Valve Timing, which adjusts intake valve operation based on engine speed and load. An alternator management system further supports efficiency by reducing parasitic load during acceleration. The exhaust system utilizes a single outlet configuration paired with a catalytic converter system meeting LEV3 ULEV70 emissions standards.
Transmission Configuration and Driveline Operation

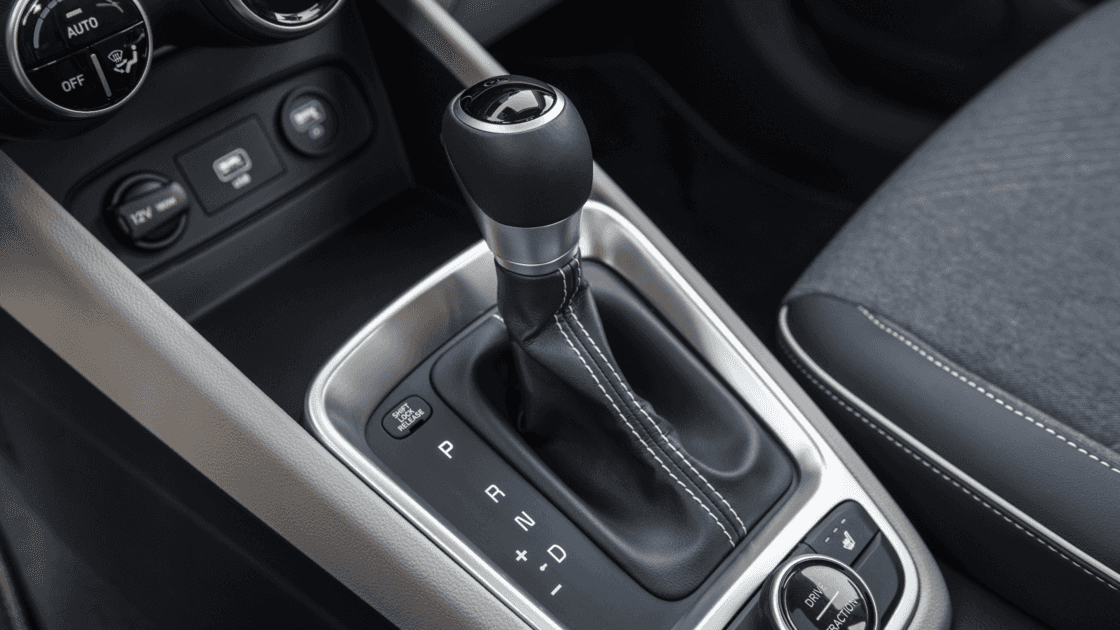

Power from the engine is routed through an Intelligent Variable Transmission. This transmission is configured with a gate-type shifter and includes a manual shift logic through SHIFTRONIC® functionality. The system simulates stepped ratios while retaining the mechanical efficiency of a continuously variable design. Gear ratio coverage supports smooth acceleration from low speeds while maintaining controlled engine speeds during cruising.
The final drive ratio is optimized for fuel efficiency and low-speed responsiveness. Hill Start Assist Control is integrated into the transmission logic, preventing rollback during incline starts by temporarily maintaining brake pressure. An ignition key interlock system ensures proper engagement sequence during vehicle operation. Drive configuration is front-wheel drive across all trims, supporting predictable handling characteristics and reduced drivetrain complexity.
Steering Precision and Suspension Geometry
The steering system in the 2026 Hyundai Venue uses a rack-and-pinion layout paired with Column-Mounted Motor Driven Power Steering. This electronically assisted system provides variable steering assist based on vehicle speed and steering input. The overall steering ratio is 14.4, with a lock-to-lock turn count of 2.7. The minimum turning radius is measured at 5.1 meters, supporting maneuverability in constrained environments.
Suspension design consists of a MacPherson® strut front assembly with coil springs and an integrated stabilizer bar. Gas-filled twin-tube shock absorbers manage damping forces and support ride consistency. At the rear, the 2026 Hyundai Venue employs a coupled torsion beam axle with twin-tube shock absorbers. This configuration balances packaging efficiency with lateral stability and structural simplicity. The suspension system is calibrated to manage road irregularities while maintaining consistent tire contact.
Braking Systems and Stability Management
Braking hardware includes ventilated front disc brakes with an 11.0-inch diameter. Rear braking configuration varies by trim, utilizing either drum brakes with an 8.0-inch diameter or disc brakes measuring 10.3 inches. The system is supported by a vacuum booster with a 10.0-inch diameter and a tandem master cylinder with a 0.87-inch bore.
Electronic control systems include Anti-lock Braking System with Electronic Brake Force Distribution, ensuring balanced braking pressure under varying loads. Electronic Stability Control and Traction Control System monitor wheel speed and yaw to maintain directional control. Vehicle Stability Management integrates steering input data to assist during corrective maneuvers. Brake Assist is included to increase braking force during emergency stops.
Structural Design and Body Construction
The body structure of the 2026 Hyundai Venue uses a unibody design constructed primarily from high-tensile steel. This material selection supports torsional rigidity while managing overall vehicle weight. Front and rear crumple zones are engineered to absorb impact energy, while body-side reinforcements add lateral protection. Five-mile-per-hour bumpers are integrated to reduce damage during low-speed impacts.
Exterior dimensions include a wheelbase of 99.2 inches, an overall length of 159.1 inches, and an overall width of 69.7 inches excluding mirrors. Overall height is measured at 61.6 inches. Ground clearance is rated at 6.69 inches, supporting light terrain variation without compromising stability. Aerodynamic efficiency is reflected in a drag coefficient of 0.34.
Exterior Lighting, Wheels, and Functional Elements
Exterior lighting includes projector-style headlights with automatic control, supporting consistent illumination in varying ambient conditions. One-touch triple turn signals improve signaling clarity during lane changes. Lenticular-effect taillights enhance rear visibility. License plate lighting and integrated roof-mounted antenna systems are standard across trims.
Wheel options include 15-inch or 17-inch alloy wheels, paired with all-season tires sized 185/65 R15 or 205/55 R17 depending on configuration. A compact temporary spare tire is included, mounted on a steel wheel. Exterior mirrors are power adjustable and heated on higher trims, with body-color or roof-color finishes based on configuration. A power glass sunroof with tilt and slide functionality is available on select trims.

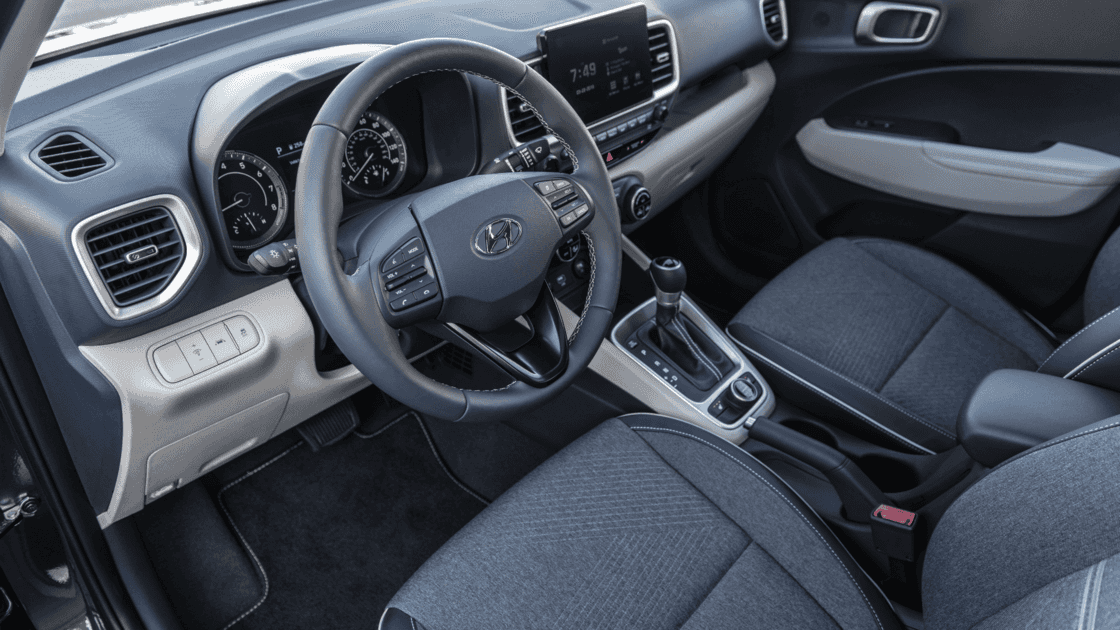

Interior Layout and Seating Systems
The interior of the 2026 Hyundai Venue accommodates five passengers. Seating surfaces include cloth or a cloth and H-Tex® combination, depending on trim. The driver seat offers 6-way manual adjustment, including height adjustment, sliding, and reclining functions. A sliding armrest with integrated storage is included for the driver. The front passenger seat includes a seatback storage pocket.
Rear seating uses a 60-40 split fold-down seatback, expanding cargo capacity when required. Seatbelts are three-point units across all seating positions, with Emergency Locking Retractors for the driver and Convertible Locking Retractors for passengers. Adjustable front-seat shoulder belt anchors and electrically activated pretensioners are included.
Infotainment Systems and Connectivity Hardware
The 2026 Hyundai Venue includes an 8-inch touchscreen display audio system with AM and FM radio capability. Wireless Apple CarPlay® and Android Auto™ integration allow smartphone connectivity without physical cables. Audio output is managed through a six-speaker system consisting of tweeters, front-door speakers, and rear-mounted speakers.
Bluetooth® hands-free phone connectivity with voice recognition is standard. Charging solutions include dual USB ports in the front row with one Type-A and one Type-C connection. Second-row USB Type-C ports are available on select trims. Wireless device charging using the Qi format is included on higher trims. Steering-wheel-mounted audio controls support system interaction without removing hands from the wheel.
Climate Control and Cabin Systems
Climate management includes air conditioning or automatic temperature control depending on trim level. A heater and Positive Temperature Coefficient heater support cold-weather operation. Rear window defroster functionality includes a timer system. Cabin air filtration manages particulate intake, and exterior temperature display is integrated into the trip computer.
Interior trim materials include fabric roof lining, cloth door inserts, and integrated door armrests. Floor covering is carpeted, with optional carpeted floor mats available as port-installed equipment. Interior lighting includes map lights, cargo area lighting, and delayed-out interior lamp operation.
Instrumentation and Driver Information Displays
The instrument cluster provides analog and digital readouts for speed, engine speed, fuel level, coolant temperature, and transmission position. Additional displays include distance to empty, ambient temperature, odometer, and drive mode indicators. Warning indicators cover oil pressure, battery charge, door and trunk status, airbag system, seatbelt reminders, tire pressure, braking systems, and electronic stability systems. Adjustable illumination allows brightness customization.
Comprehensive Safety and Driver Assistance Technologies
Safety systems in the 2026 Hyundai Venue include advanced front airbags for the driver and front passenger, side-impact airbags, and side curtain airbags covering front and rear seating rows. An Occupant Classification System manages airbag deployment logic. Lower Anchors and Tethers for Children are installed on outboard rear seating positions. Rear door child safety locks are standard.
Active safety technologies include Forward Collision-Avoidance Assist with pedestrian detection using camera-based sensing. Lane Keeping Assist monitors lane markings and provides steering correction when unintentional departure is detected. Driver Attention Warning evaluates steering patterns to identify inattentive driving behavior. High Beam Assist automatically manages headlight operation based on surrounding traffic. Blind-Spot Collision Warning with Rear Cross-Traffic Collision Warning is included on higher trims. Rear Occupant Alert uses door logic to reduce the risk of leaving occupants behind.
Dimensions, Capacities, and Interior Volume Utilization
Interior measurements provide front headroom of 39.4 inches without a sunroof and 38.4 inches with a sunroof. Rear headroom measures 38.6 inches. Front legroom is rated at 41.3 inches, while rear legroom measures 34.3 inches. Passenger volume totals 91.9 cubic feet. Cargo capacity is measured at 18.7 cubic feet with rear seats upright and 31.9 cubic feet with rear seats folded. The fuel tank capacity is 11.9 gallons. Gross vehicle weight rating is 3,770 pounds, with curb weight ranging from 2,612 to 2,738 pounds depending on configuration.
Visit ALM Hyundai Florence for a Test Ride
Drivers interested in assessing the engineering and systems integration of the 2026 Hyundai Venue can arrange a test drive through ALM Hyundai Florence in Florence, SC. A scheduled drive provides direct exposure to the 1.6-liter engine response, IVT operation, and steering calibration. The evaluation also allows drivers to experience the driver assistance technologies and braking systems under controlled conditions. Interior ergonomics, infotainment functionality, and visibility can be examined in practical use. Scheduling a visit supports an informed review of how the technical specifications of the 2026 Hyundai Venue translate into daily operation.
