2027 Hyundai Santa Fe nearby Conway, SC
The 2027 Hyundai Santa Fe is a three-row vehicle offered with turbocharged gasoline and hybrid powertrains, front-wheel drive, and available HTRAC all-wheel drive. Depending on the configuration, its cabin accommodates six or seven occupants and provides several folding-seat arrangements for passenger and cargo flexibility. Its mechanical design combines a high-strength-steel unibody structure with independent suspension components, four-wheel disc brakes, and motor-driven power steering. Available cabin technologies include dual 12.3-inch displays, onboard navigation, Bose® premium audio, wireless smartphone integration, and Hyundai Digital Key 2 Premium. This technical overview examines the 2027 Hyundai Santa Fe powertrains, drivetrain systems, chassis engineering, exterior equipment, passenger accommodations, cargo capability, connectivity, and safety features.
Powertrain, Drivetrain, and Chassis Engineering
The 2027 Hyundai Santa Fe powertrain range includes a Smartstream® 2.5-liter turbocharged gasoline engine and a Smartstream® 1.6-liter turbocharged hybrid system. Both engines use aluminum block and cylinder-head construction, gasoline direct injection, turbocharging, and a 10.5:1 compression ratio. Front-wheel drive comes standard, while HTRAC active on-demand all-wheel drive remains available. A center-console-mounted Drive Mode Select system allows the driver to access supported operating modes. SHIFTRONIC® manual-shift paddle shifters and shift-by-wire transmission controls accompany both powertrain options.
Smartstream® 2.5-liter turbocharged engine
The Smartstream® 2.5-liter Turbo GDI and MPI engine is a 2,497 cc, dual-overhead-camshaft, 16-valve inline four-cylinder. It produces 277 horsepower at 5,800 rpm and 311 lb-ft of torque at 4,000 rpm. An eight-speed automatic transmission manages its output through eight forward ratios. Idle Stop & Go is standard with this engine, and Hyundai specifies regular unleaded gasoline as the recommended fuel. The 2.5-liter turbocharged engine uses a single-tip exhaust and carries a SULEV_30 emissions classification.
Fuel economy varies according to drivetrain and trim configuration. Front-wheel-drive SE, SEL, Limited, and Calligraphy models are rated at 20 mpg city, 29 mpg highway, and 24 mpg combined. Their all-wheel-drive counterparts are rated at 20 mpg city, 28 mpg highway, and 23 mpg combined. The all-wheel-drive XRT is rated at 19 mpg city, 25 mpg highway, and 21 mpg combined. All 2027 Hyundai Santa Fe configurations use a 17.7-gallon fuel tank.
Turbocharged hybrid system
The hybrid powertrain combines a 1,598 cc Smartstream® 1.6-liter Turbo GDI inline four-cylinder with a permanent-magnet synchronous motor. The gasoline engine produces 178 horsepower at 5,500 rpm and 195 lb-ft of torque from 1,500 to 4,500 rpm. The electric motor generates 44.2 kW, or an estimated 60 horsepower, and produces 195 lb-ft of torque. Total combined system output reaches 231 horsepower and 271 lb-ft of torque from 1,000 to 4,100 rpm. A 270-volt, 1.49-kWh lithium-ion battery supports the electric portion of the system.
A six-speed automatic transmission serves the hybrid powertrain, and buyers can select front-wheel drive or HTRAC all-wheel drive. Front-wheel-drive hybrid models carry ratings of 37 mpg city, 36 mpg highway, and 36 mpg combined. HTRAC all-wheel-drive hybrid versions are rated at 35 mpg city, 34 mpg highway, and 35 mpg combined. The hybrid powertrain uses a hidden single-tip exhaust and shares the SULEV_30 emissions classification. Its electrical system also incorporates a 13-kW hybrid starter generator.
HTRAC all-wheel drive and drive modes
HTRAC active on-demand all-wheel drive can vary front-to-rear torque distribution according to the selected operating mode. Comfort, Eco, Sport, and Smart modes use a distribution range from 100:0 to 50:50. Snow mode operates across a range from 80:20 to 50:50, while the XRT-specific Sand and Mud modes use a 50:50 distribution. The AWD Lock function also provides a 50:50 setting. These drivetrain controls complement Downhill Brake Control, Hillstart Assist Control, and Trailer Sway Control.
Suspension, steering, and braking
The 2027 Hyundai Santa Fe uses a unibody structure constructed primarily from high-strength steel. Its front suspension combines MacPherson® struts, coil springs, a stabilizer bar, and gas-pressurized shock absorbers with advanced valving. The rear suspension uses a multi-link independent layout with separate springs and shock absorbers, a stabilizer bar, and gas-pressurized dampers with advanced valving. Column-mounted motor-driven power steering operates through a rack-and-pinion mechanism with a 13.7 overall ratio. The steering requires 2.6 turns from lock to lock and provides a 37.9-foot curb-to-curb turning diameter.
Four-wheel disc brakes support every 2027 Hyundai Santa Fe configuration. The front axle uses 12.8-inch ventilated discs, while the rear axle uses 12.8-inch solid discs. A four-channel, four-sensor anti-lock braking system works with Electronic Brake-force Distribution, Brake Assist, and Vehicle Stability Management. The parking brake uses an electric mechanism with Auto Vehicle Hold. Hybrid models also receive an integrated electric brake booster.
Exterior Design and Functional Equipment

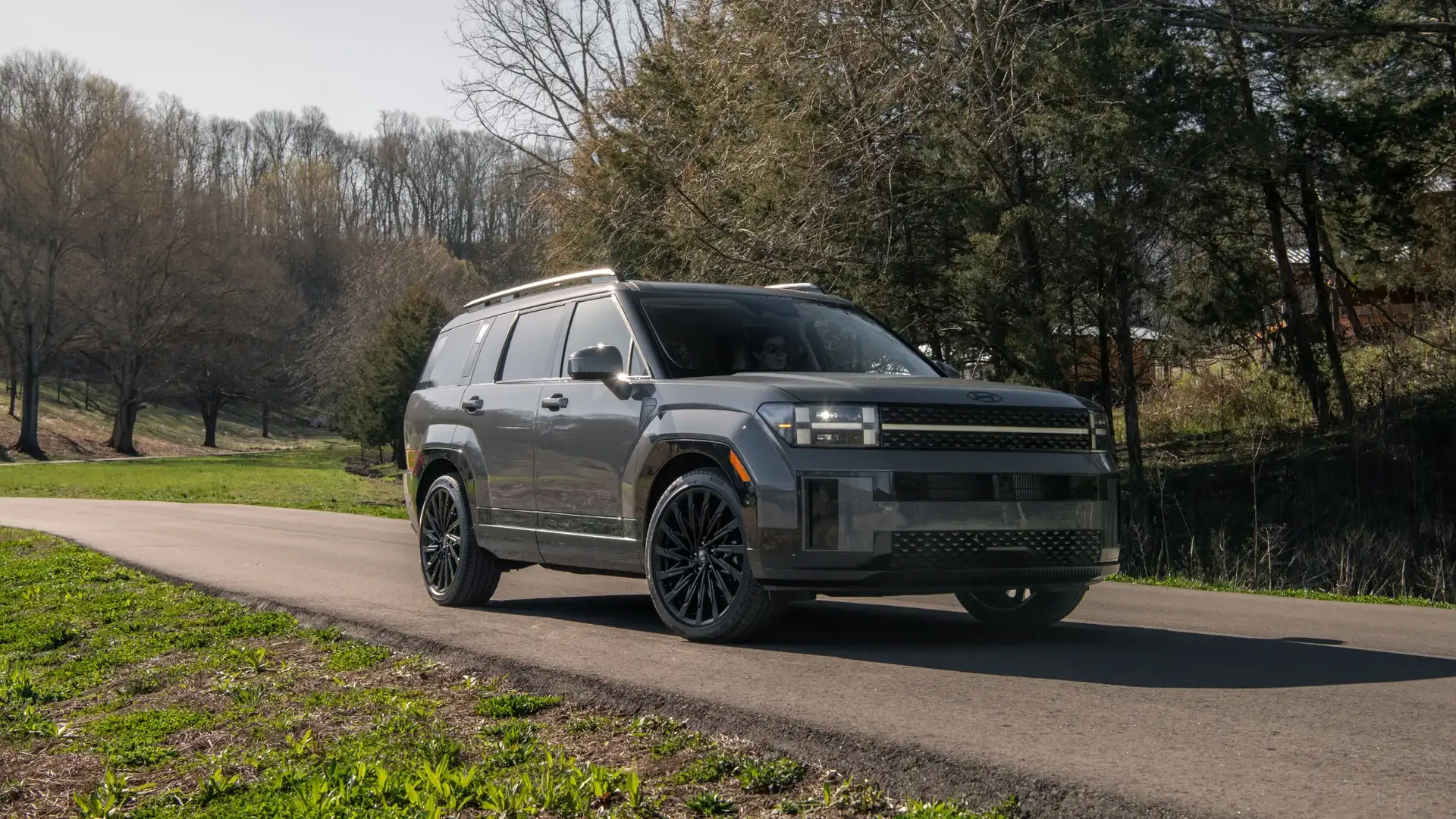

The 2027 Hyundai Santa Fe measures 190.2 inches long, 74.8 inches wide, and 67.7 inches high without roof side rails. Its wheelbase spans 110.8 inches, while its front and rear overhangs measure 36.0 and 43.3 inches. Standard minimum ground clearance is 7.0 inches, and the XRT increases that measurement to 8.3 inches. The body has a coefficient of drag of 0.294. Equipped roof rails provide a load capacity of 220 pounds.
Lighting, mirrors, glass, and exterior access
LED projector headlights with LED accents are standard throughout the 2027 Hyundai Santa Fe lineup. Every trim also receives LED daytime running lights, automatic headlights, LED taillights, High Beam Assist, and a roof-mounted center high-mount stop lamp. Heated side mirrors are standard, and SEL, XRT, Limited, and Calligraphy models add LED turn-signal indicators. Limited and Calligraphy configurations also include power-folding side mirrors. These lighting and mirror features support visibility and exterior signaling across the available trim range.
Solar-control glass covers the windshield and front doors, while privacy glass serves the rear doors, quarter windows, and back glass. Acoustic laminated glass is standard for the windshield and front side windows. All trims include two-speed variable-intermittent front windshield wipers and an intermittent rear wiper with a washer. Limited and Calligraphy models add rain-sensing windshield wipers. A hands-free smart liftgate with automatic opening and an adjustable height setting is standard on every model.
Wheels, tires, and XRT equipment
Wheel and tire equipment varies by trim and powertrain. SE and SEL models use 18-inch alloy wheels with 235/60 R18 tires, while XRT models receive 18-inch black alloy wheels with 245/60 R18 Continental all-terrain tires. Limited gasoline and hybrid models use 20-inch alloy wheels with 255/45 R20 tires. The gasoline Calligraphy rides on 21-inch alloy wheels with 245/45 R21 tires, while the Calligraphy Hybrid uses the 20-inch wheel package. Gasoline models generally include a temporary compact spare tire, while designated hybrid configurations use a tire mobility kit.
The XRT package combines distinct exterior components with additional functional capability. It includes gloss-black exterior mirror caps, a black grille treatment, matte-metallic black roof rails, black anodized badging, an XRT emblem, and a C-pillar assist handle. The XRT provides 8.3 inches of ground clearance instead of the 7.0-inch measurement listed for the other configurations. Its approach, departure, and ramp breakover angles measure 19.3, 21.8, and 19.1 degrees. The XRT comes exclusively with all-wheel drive and raises the maximum braked-trailer rating to 4,500 pounds.
Seating, Comfort, and Cargo Utility
The 2027 Hyundai Santa Fe offers seating for six or seven occupants based on the trim and second-row configuration. SE, SEL, and XRT models seat seven, while Limited models can seat six or seven, and Calligraphy models seat six. The cabin provides three rows of seating, folding rear seats, storage compartments, and climate outlets for supported seating rows. Upholstery selections progress from stain-resistant cloth to H-Tex®, leather, and Nappa leather trim. Available seat heating, ventilation, power adjustment, memory, and relaxation functions distinguish the higher trim levels.
Front and second-row seating

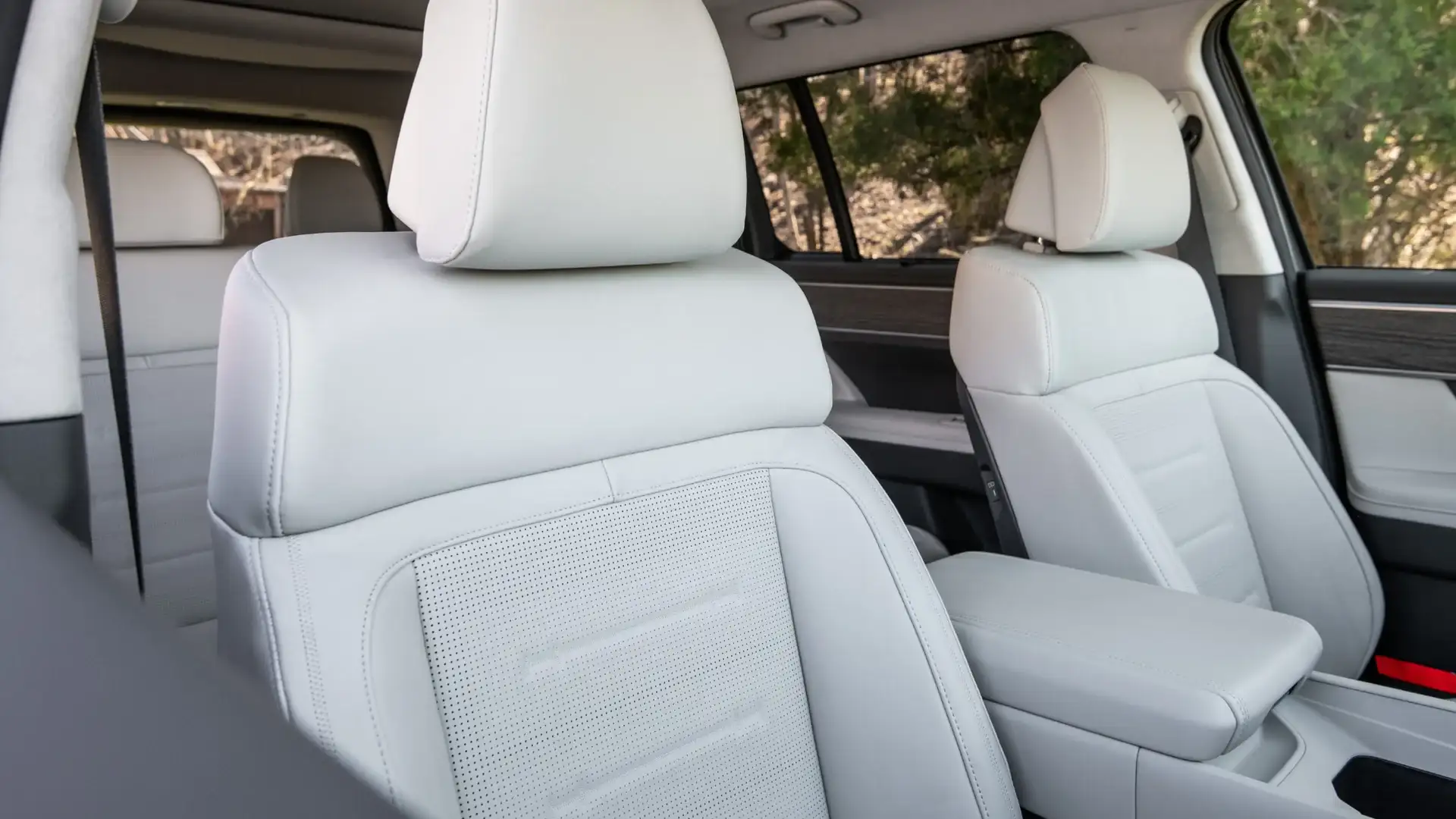

SE models use YES Essentials stain-resistant cloth upholstery and provide a six-way adjustable driver’s seat with two-way lumbar adjustment. SEL and XRT models introduce H-Tex®-trimmed seating, an eight-way power driver’s seat, and heated front seats. Limited models add leather-trimmed upholstery, four-way driver lumbar adjustment, a six-way power front-passenger seat, ventilated front seats, and an integrated driver-seat memory system. Calligraphy models use Nappa leather trim and include a Driver Relaxation Seat with a one-touch setting. Limited and Calligraphy configurations also provide heated second-row seats with high and low settings.
A 60/40 split fold-flat second-row bench with reclining seatbacks and adjustable head restraints serves SE, SEL, and XRT models. Limited can use that bench or second-row captain’s chairs, while Calligraphy receives captain’s chairs. Every configuration includes a 50/50 sinking and folding third-row seat with a room lamp. Remote-release controls allow occupants to fold the second-row seats from the cargo area. An underfloor storage tray provides an additional cargo compartment behind the rear seating.
Passenger dimensions and climate control
Passenger dimensions reflect the three-row interior layout. Headroom measures 41.1 inches in the first row, 40.6 inches in the second row, and 37.7 inches in the third row, with lower first- and second-row measurements in sunroof-equipped models. Legroom measures 44.4 inches in front, 42.3 inches in the second row for gasoline models, and 41.5 inches in the second row for hybrid models. Third-row legroom measures 30.0 inches. Shoulder room spans 59.5 inches in the first row, 58.1 inches in the second row, and 53.5 inches in the third row.
Air conditioning, an external-temperature display, a heater, a cabin air filter, and second-row air vents are standard. SEL, XRT, Limited, and Calligraphy models add third-row air vents. Dual automatic temperature control with automatic defogging is standard on the SE Hybrid and the higher trim configurations listed for that feature. Every trim includes a rear-window defroster with a timer. Limited and Calligraphy models also provide a heated steering wheel and rear side-window sunshades.
Interior storage and cargo capacity
The four-spoke steering wheel provides tilt and telescoping adjustment throughout the lineup. Integrated controls operate audio volume, audio selection, phone functions, cruise functions, Bluetooth® hands-free communication, and the multi-information display. The center-console armrest includes two-level storage and a bidirectional opening design. Bottle holders serve the front, rear, and third rows, while storage pockets are incorporated into the front and rear doors. Two 12-volt outlets are positioned in the front and cargo areas, and XRT, Limited, and Calligraphy models add a 115-volt power outlet.
Cargo capacity measures 14.6 cubic feet behind the third row and 40.5 cubic feet behind the second row. Folding both rear seating rows expands capacity to 79.6 cubic feet behind the front seats. Gasoline models provide 166.6 cubic feet of total interior volume and 152.0 cubic feet of passenger volume. Hybrid models provide 165.6 cubic feet of total interior volume and 151.0 cubic feet of passenger volume. The folding seats, remote second-row releases, underfloor tray, and hands-free liftgate support several combinations of passengers and cargo.
Towing capability
The 2.5-liter turbocharged 2027 Hyundai Santa Fe can tow up to 3,500 pounds when the trailer uses brakes. The XRT raises that maximum to 4,500 pounds with trailer brakes. Hybrid models carry a maximum braked-trailer rating of 2,000 pounds. The maximum trailer rating without trailer brakes is 1,650 pounds for both powertrain categories. Trailer pre-wiring and Trailer Sway Control are standard across the lineup.
Connectivity, Displays, and Safety Systems

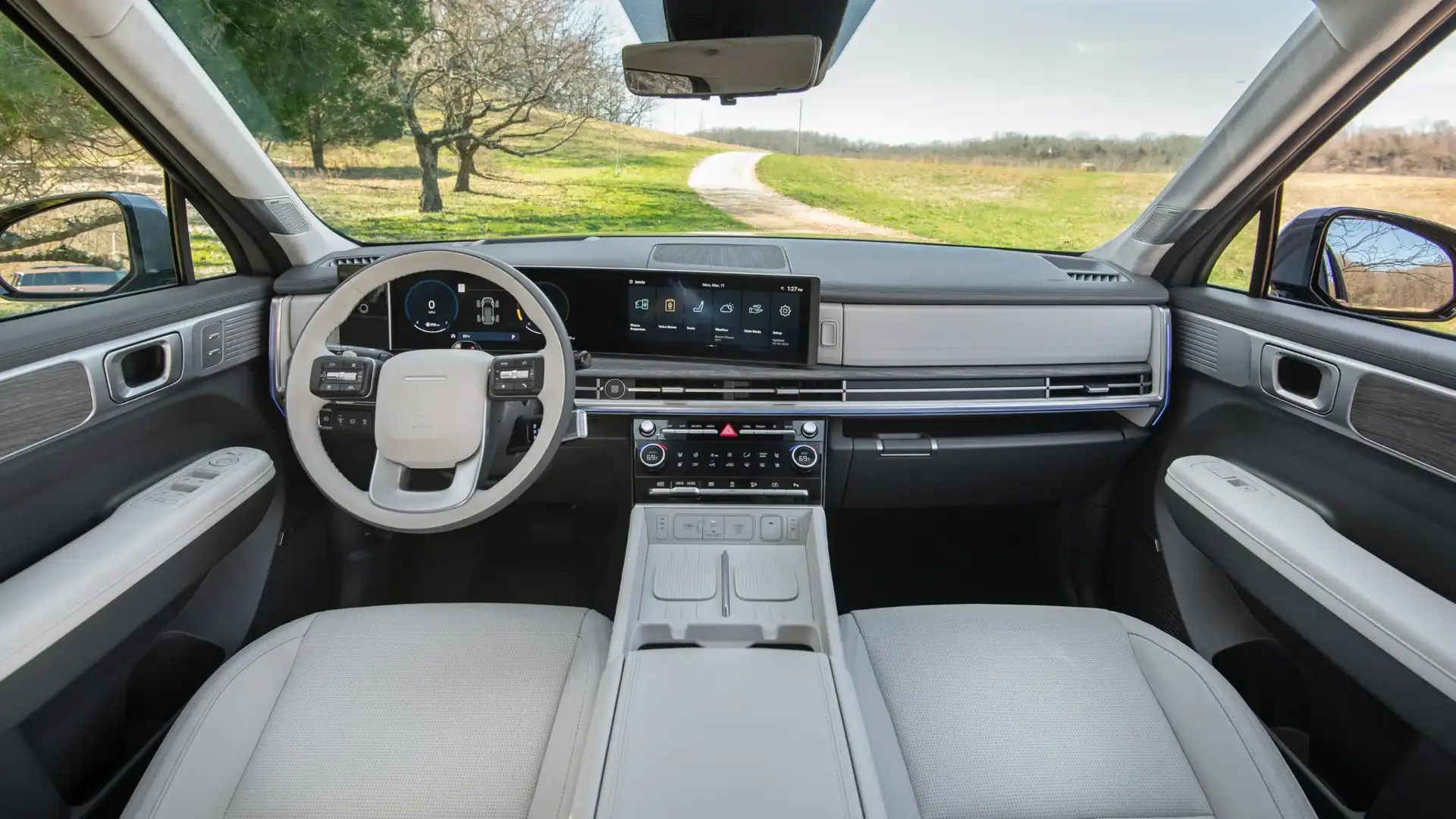

The technology systems in the 2027 Hyundai Santa Fe combine digital displays, smartphone integration, connected services, charging ports, and available driver-information features. A 12.3-inch audio display is standard on SE and SEL models. XRT, Limited, and Calligraphy models receive a 12.3-inch wide touchscreen with onboard navigation, traffic flow information, incident data through HD Radio™ and Wi-Fi hotspot capability. Wireless Android Auto™ and Apple CarPlay® are standard throughout the range. Bluelink® Connected Car System functionality and over-the-air updating capability are also standard.
Audio, charging, and digital access
SE and SEL models use the 12.3-inch Display Audio system with AM, FM, and HD Radio™. Limited and Calligraphy models add a Bose® premium audio system with 12 speakers. Rear Seat Quiet Mode is standard across every trim, while Dynamic Voice Recognition and Hyundai Pay are included on XRT, Limited, and Calligraphy models. High-power USB charging ports are positioned in the front and rear, with two additional third-row ports on all trims except SE. Wireless phone charging is standard on SEL, while XRT, Limited, and Calligraphy models provide dual wireless charging capability for supported devices.
A 4.2-inch color multi-information display is standard on SE, SEL, and XRT. Limited and Calligraphy models use a 12.3-inch digital instrument cluster and add a Blind-Spot View Monitor. Calligraphy further includes a windshield-type head-up display. Hyundai Digital Key 2 Premium uses NFC, Bluetooth® Low Energy, and ultra-wideband technologies on XRT, Limited, and Calligraphy models. Proximity key entry, push-button start, remote engine start, and a detachable valet key are standard across all trims.
Occupant protection and vehicle security
The restraint system includes driver and front-passenger advanced airbags, a driver knee airbag, first-row side airbags, second-row side airbags, and side-curtain airbags. Three-point seatbelts serve the outboard seating positions and the rear inboard position. Front seatbelt pretensioners and load limiters, adjustable front shoulder-belt anchors, LATCH lower anchors, upper tether anchors, rear child-safety locks, and a power-window lockout button are standard. The structure incorporates a front crumple zone and 2.5-mph bumpers. An immobilizer and an anti-theft system integrated with remote keyless entry and a panic alarm support vehicle security.
Driver-assistance and collision-avoidance features
Standard active safety equipment includes Electronic Stability Control, Traction Control, Brake Assist, Vehicle Stability Management, and a tire-pressure monitoring system with individual tire indication. Forward Collision-Avoidance Assist includes pedestrian, cyclist, and junction-turning detection. Lane Keeping Assist, Lane Following Assist 2, Driver Attention Warning, Safe Exit Assist, Rear Cross-Traffic Collision-Avoidance Assist, and Blind-Spot Collision Warning are also standard. SEL and higher trims add Forward Attention Warning through a driver-monitoring system. Calligraphy adds Blind-Spot Collision-Avoidance Assist and Highway Driving Assist 2, while XRT and Limited include Highway Driving Assist I.
Parking support varies by configuration. SE, SEL, and XRT provide forward and reverse Park Distance Warning, while Limited and Calligraphy expand detection coverage to the front, sides, and rear. Limited and Calligraphy also add Parking Collision-Avoidance Assist in reverse, Remote Smart Parking Assist for entry and fore-and-aft movement, and a Surround View Monitor. A rearview monitor with parking guidance is standard on every model. XRT, Limited, and Calligraphy use an advanced Rear Occupant Alert with a radar sensor and Bluelink® integration, while SE and SEL use a door-logic Rear Occupant Alert.
Schedule a Test Ride at ALM Hyundai Florence
Schedule a test drive at ALM Hyundai Florence, nearby Conway, SC, to evaluate the 2027 Hyundai Santa Fe from the driver’s seat. Our team can help you review its turbocharged performance, available HTRAC all-wheel-drive operation, suspension response, steering characteristics, and braking systems. You can also examine the three-row seating, cargo flexibility, climate equipment, digital displays, and wireless connectivity during your visit. A test drive provides an opportunity to become familiar with the available driver-assistance, parking, handling, comfort, and safety features. Contact us to arrange an appointment and assess the configuration that fits your passenger, cargo, towing, and technology requirements.
